Agilent Technologies 7820A Service Manual

Agilent 7820 GC Service
187

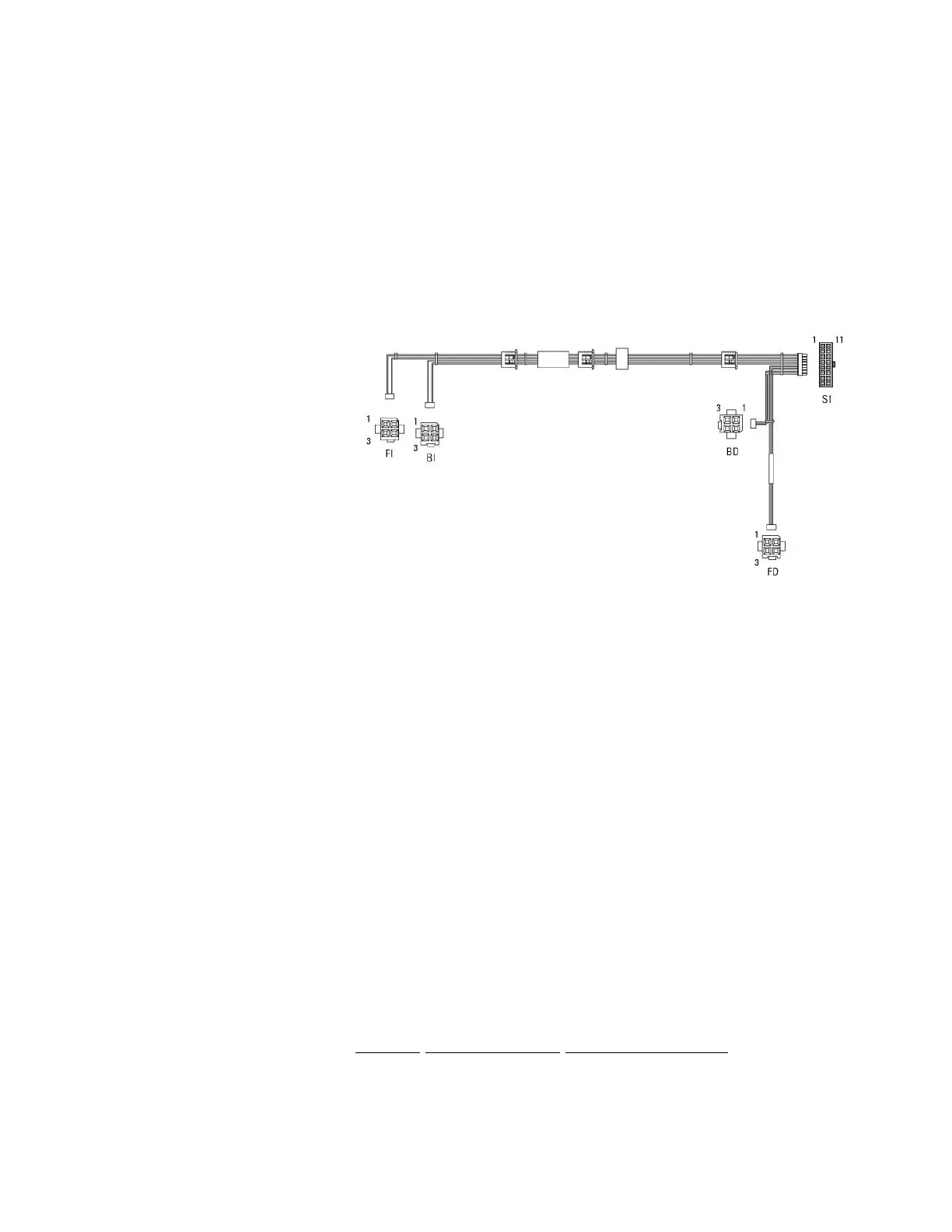

Inlet/Detector heater harness
Part number G4350-60535
This harness connects the inlet and detector heaters to the logic
board at P7.
The FI and BI connectors are for inlets; FD and BD are for
detectors. (FI = Front Inlet, BD = Back Detector, and so forth)
Connection table
S1 pin
Wire color
Signal name
Destination
(pin)
1
Black
ADC-GND
F1 (3)
2
Black
ADC-GND
BI (3)
3
Black
ADC-GND
FD (3)
4
Black
ADC-GND
BD (3)
5
Green
C GROUND
FI (4)
6
Green
C GROUND
BI (4)
7
Green
C GROUND
FD (4)
8
Green
C GROUND
BD (4)
9
Violet
INJA-SENSE
FI (2)
10
Gray
INJB-SENSE
BI (2)
11
Violet
DETA-SENSE
FD (2)
12
Grey
DETB-SENSE
BD (2)
13
Red
INJ-FRONT
FI (1)
14
Orange
INJ-BACK
BI (1)
15
Red
DET-FRONT
FD (1)
16
Orange
DET-BACK
BD (1)
