382

Agilent 7820 GC Service

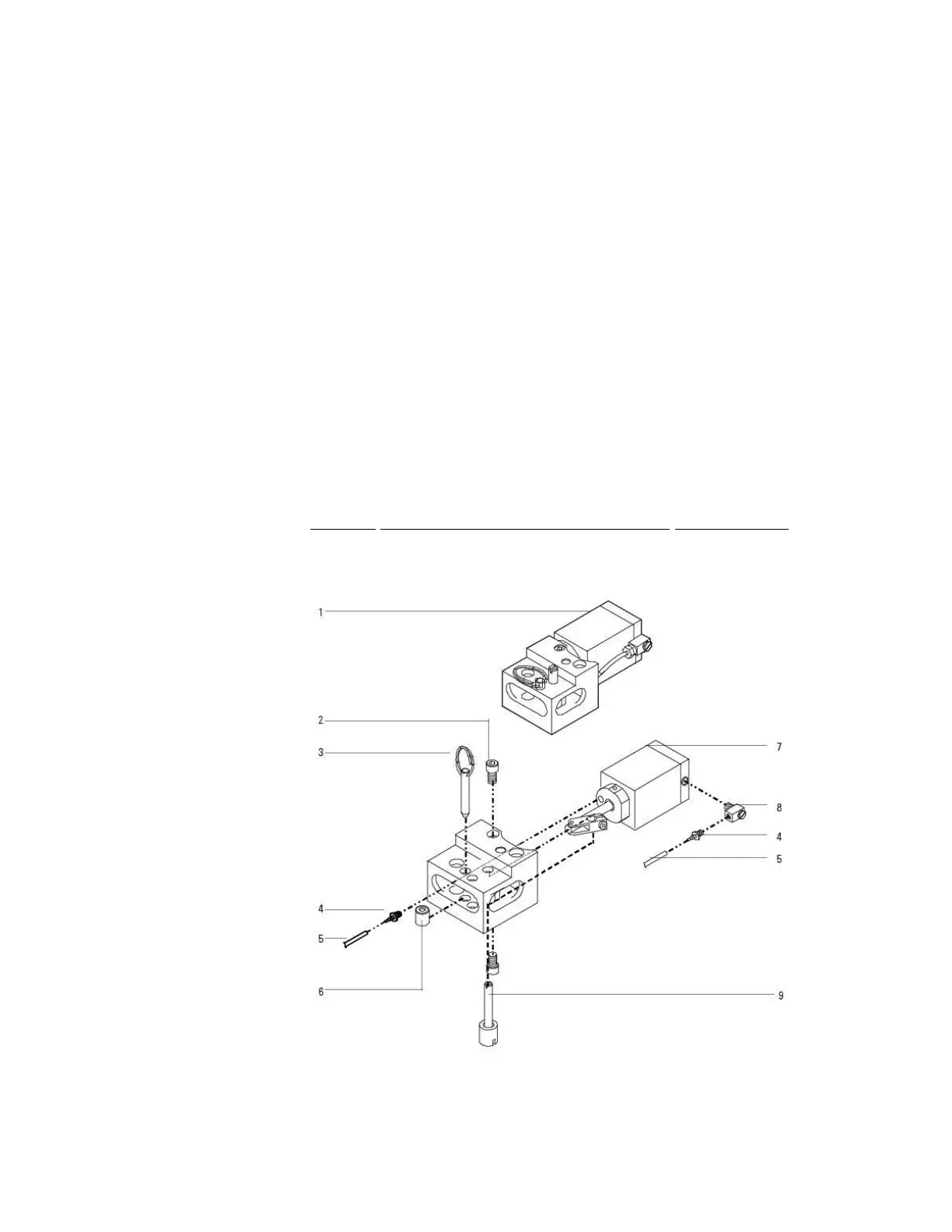

Valve actuator assembly (1 of 2)

Item

Description

Part number

Qty

Valve actuator assembly

19325-60660

Modified screw

19325-80030

Quick-release pin

1480-0632

Hose fitting

5185-8386

PTFE tubing 5m, 1.5mm ID, 3mm OD

5062-2483

36° Actuator limiter

18900-21000

End cap

19325-20680

Elbow fitting

5185-8385

Coupler/Shaft assembly

G1580-60640

Hex key, 3 mm

8710-0911
