Agilent 7820 GC Service

393

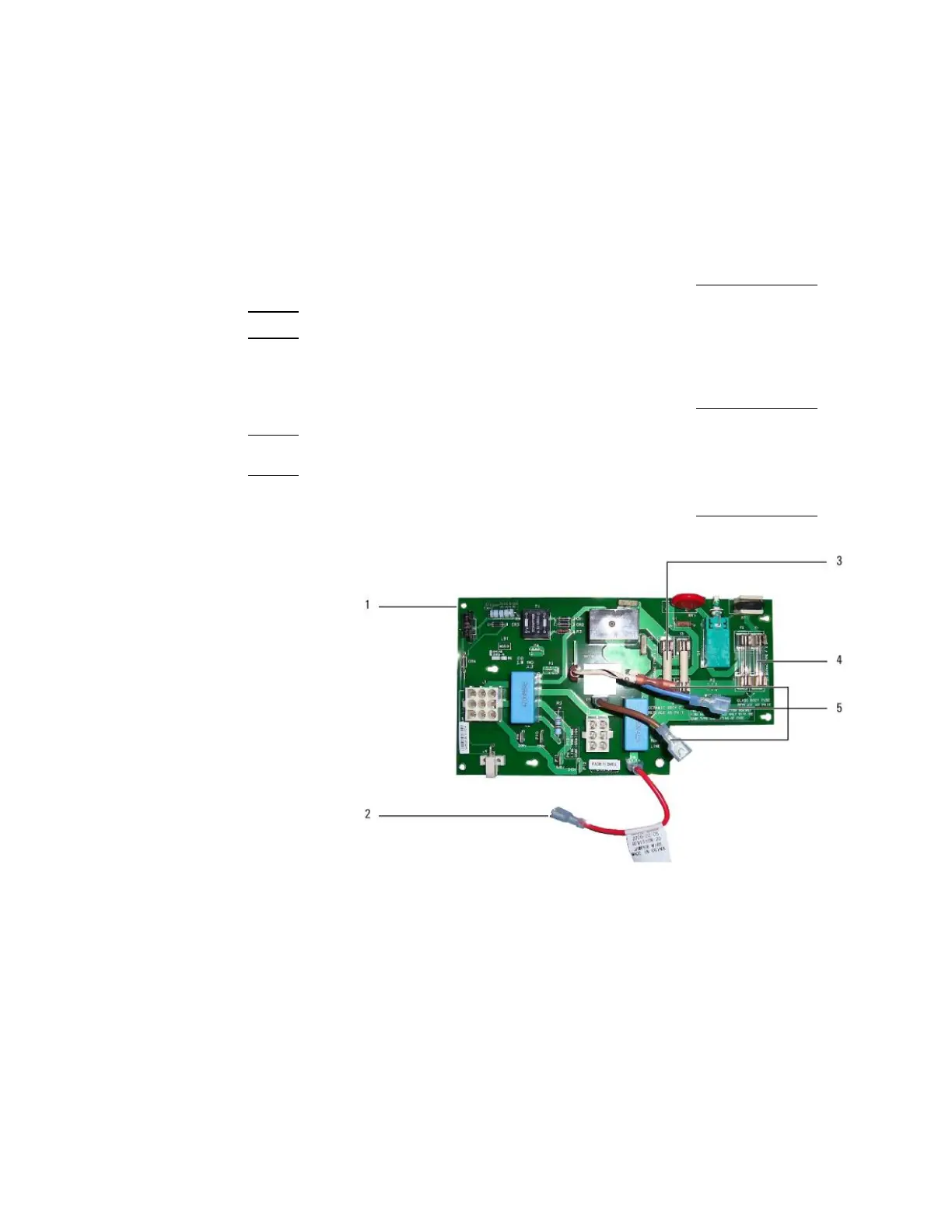

AC circuit board components

Item

Description

Part number

Qty

AC power board (without triac kit)

-- 100-120 VAC power

G4350-61060

-- 200-240 VAC power

G4350-61050

Power configuration cable

G4350-60550

Ceramic fuse, type x, 20A/250V

2110-0098

Glass fuse, type F

-- 8 A/250 V (used for 100-120 VAC board

G4350-61060)

2110-0036

-- 6 A/250 V (used for 200-240 VAC board

G4350-61050)

2110-0056

Triac jumper (order triac replacement kit)

(200-240 V AC board shown)
