Agilent Technologies 7820A Service Manual

Agilent 7820 GC Service
175
Stop (Low True)—Request to reach system ready state as soon
as possible (for example, stop run, abort or finish, and stop
injection). Receiver is any module performing runtime-controlled
activities. Normally this line is not connected, if the GC oven
program is used to control the method “Stop” time.

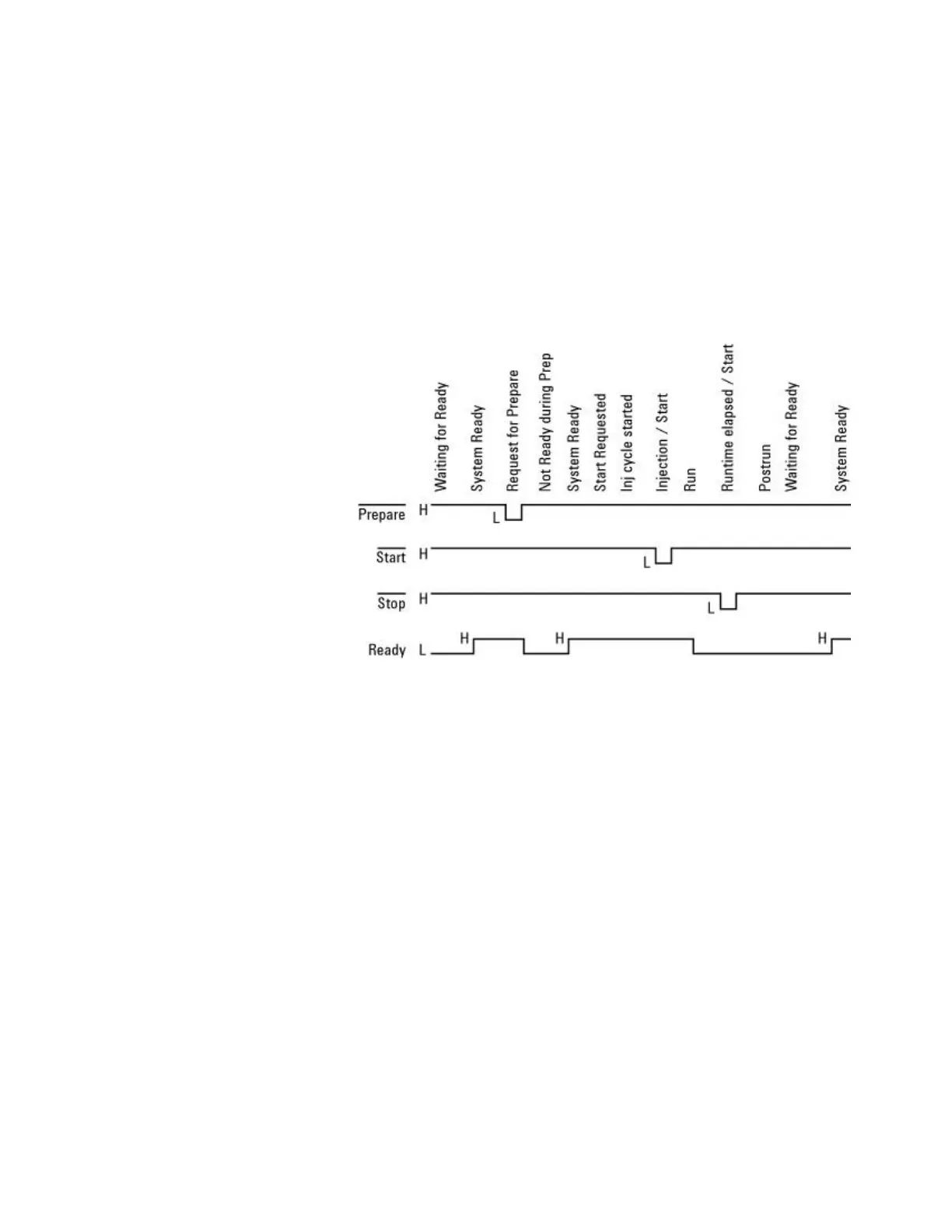

Timing Diagram
