Agilent Technologies 7820A Service Manual

Agilent 7820 GC Service
105

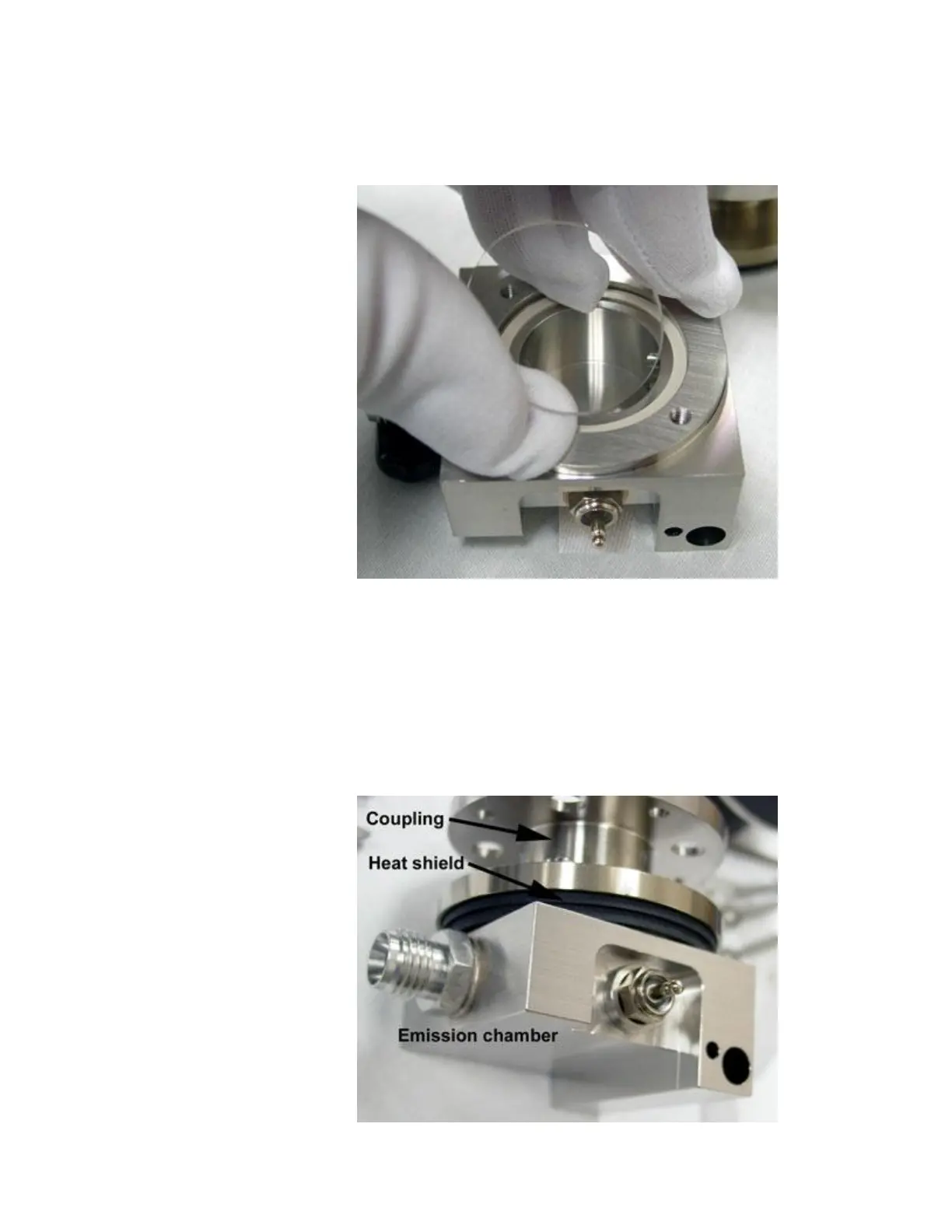

Position the heat shield and coupling onto the emission chamber
so the threaded hole is aligned with the threaded fitting for the
exhaust tube.
Reconnect the parts using the 4 screws and washers. Tighten
opposite screws, similar to a wheel on an automobile, to insure a
good seal.
