Agilent Technologies 7820A Service Manual

118
Agilent 7820 GC Service

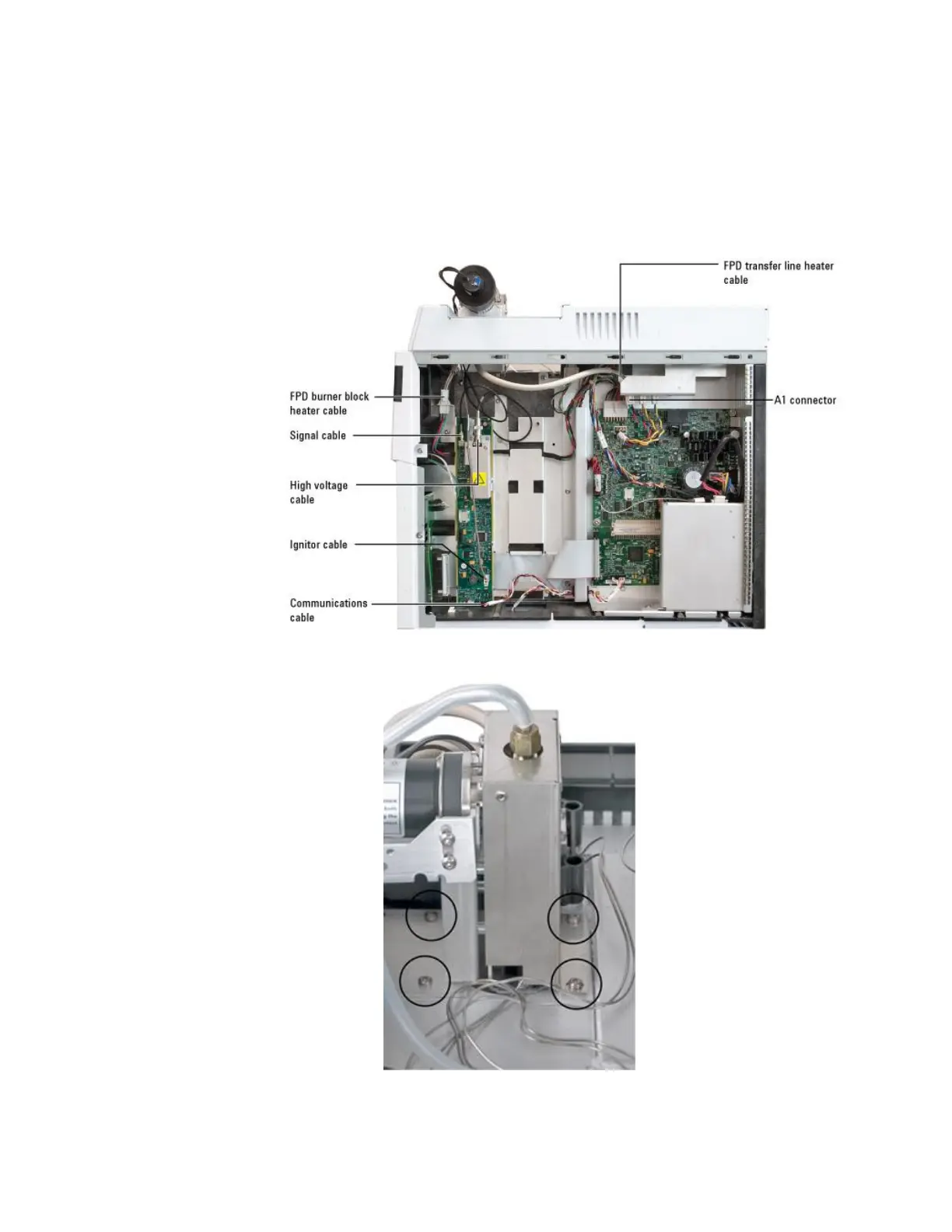

From the side panel side, disconnect heater sensors to the Aux
heater and to the back detector, the ignitor cable, the high
voltage connector, and the PMT signal cable.
Remove the top four T-20 screws retaining the PMT assembly.
Lift up the entire assembly and lay it down on the top GC
surface.
