Agilent 7820 GC Service

189

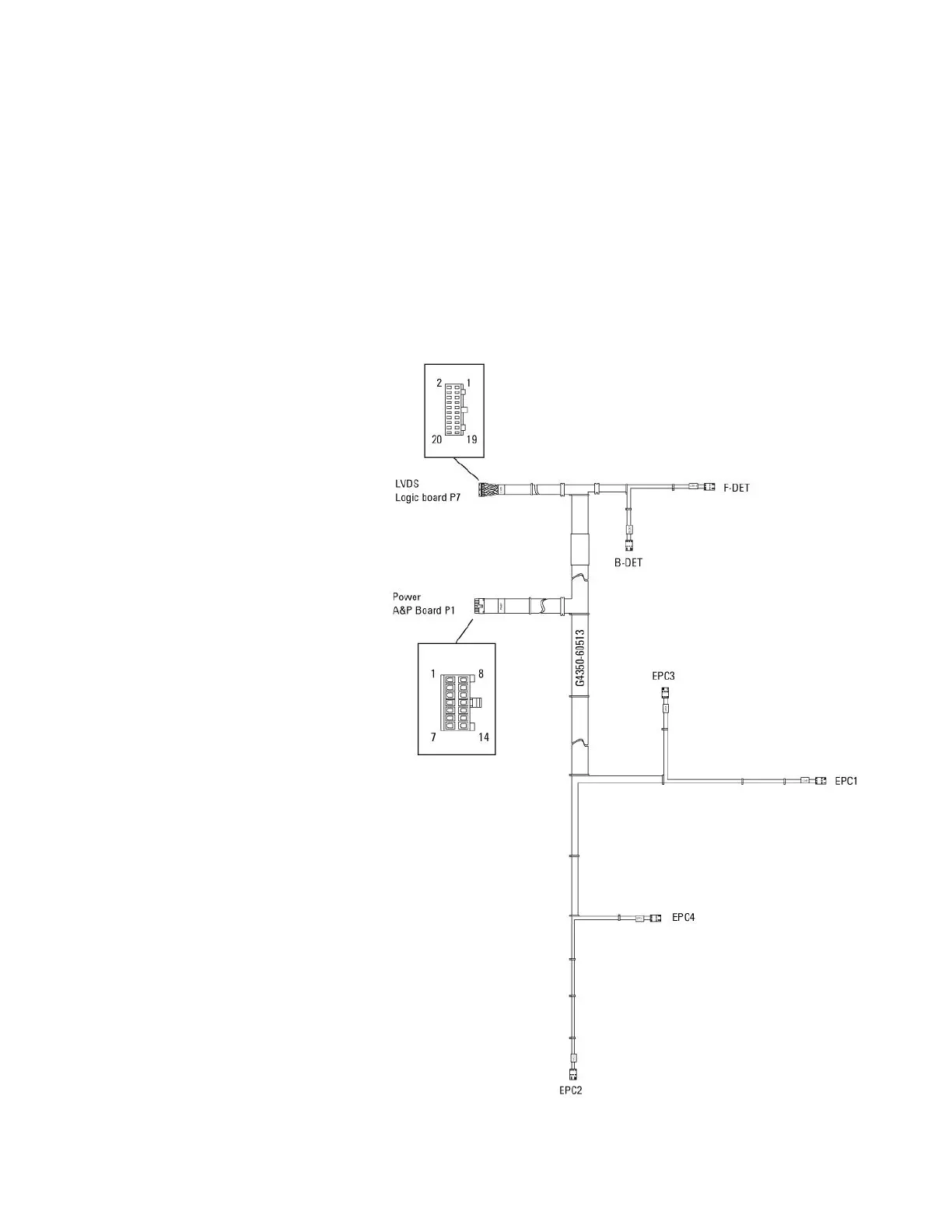

This harness provides 24 VDC from the Analog and Power board

to all EPC modules. It also carries communications between the

EPC modules and the signal board. The harness connector

labeled "Power" connects to P1 on the Analog and Power board.

The harness connector labeled "LVDS" connects to P7 on the

logic board.
