Agilent 7820 GC Service

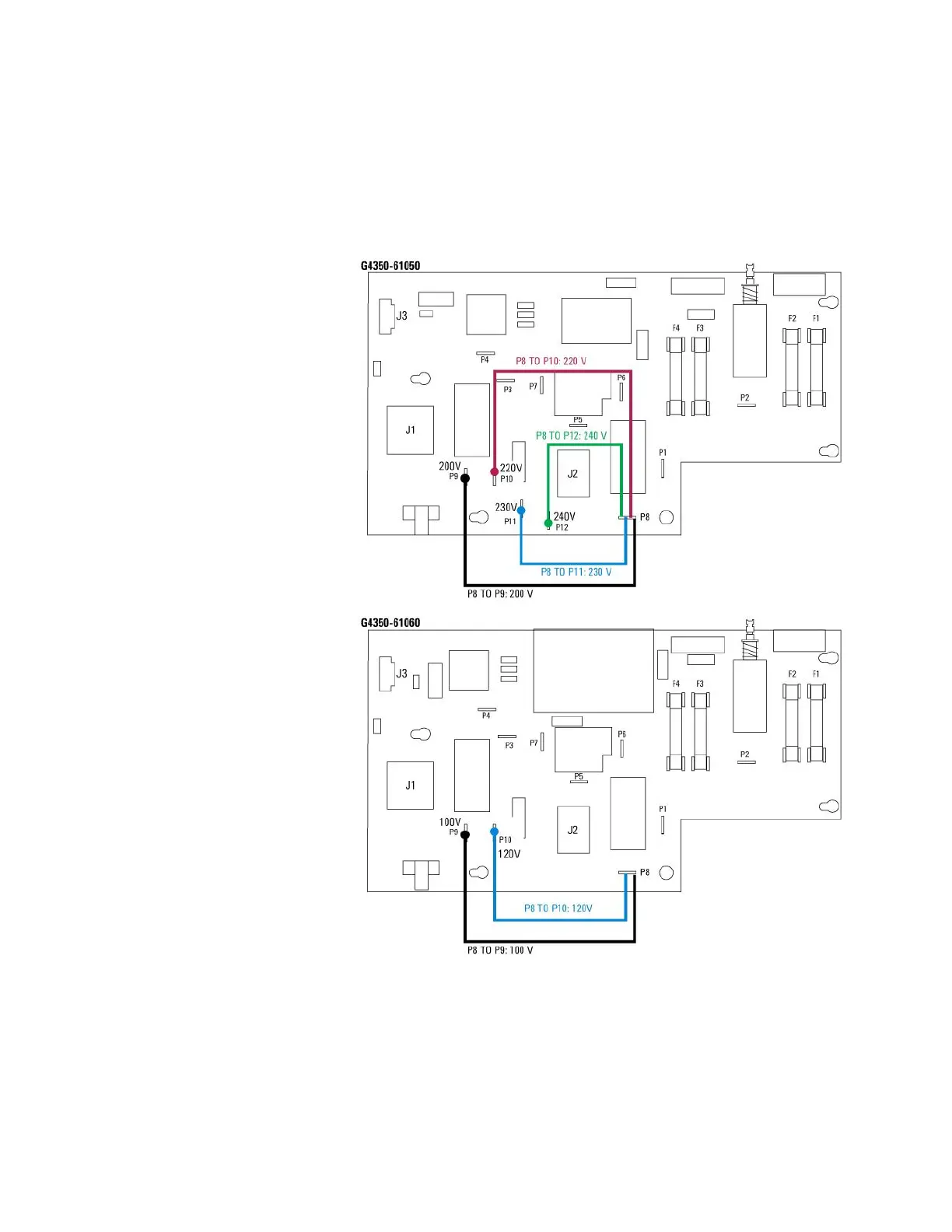

Configure the new power configuration using the jumper wire.
The placement of the jumper wire, from P8 to another connector,
sets the configuration. See the diagrams below.
If necessary, replace the power cord receptacle and wires.
Attach the new label.
Power on the unit. Watch for any errors after self-test.
