Agilent 7820 GC Service

361

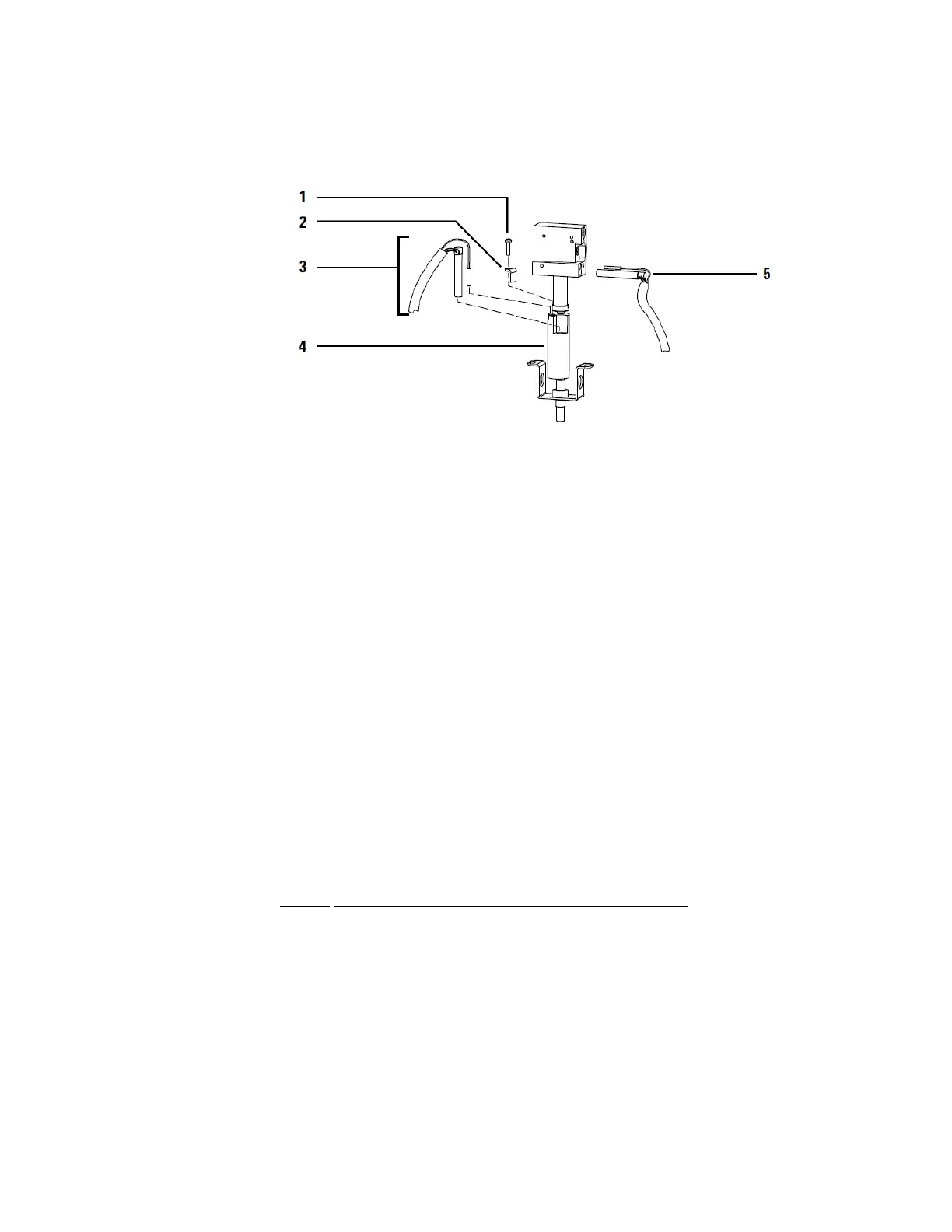

Table Brackets, insulation, PMT, and filters

Item

Description

Part number

Qty

Front detector cover assembly

G3435-81330

Chimney insulation

G3435-00340

Nut, hex, with lockwasher, M4

0535-0043

Chimney Insulation, Middle

G3435-00342

Screw, machine, M4 x 10-mm long

0515-2495

FPD Chimney back

19256-00320

WHC-375 Wire Clip

1400-3196

Filters

FPD Sulphur filter 394nm

1000-1437

Filter, P 5890 FPD

19256-80010

FPD Filter spacer (for sulfur filter

only)

19256-20910

Spring, compression

1460-1160

PMT Assembly (single FPD+)

G3435-60360

FPD Main bracket

G3435-00370
