386

Agilent 7820 GC Service

7820 Transfer line Switch

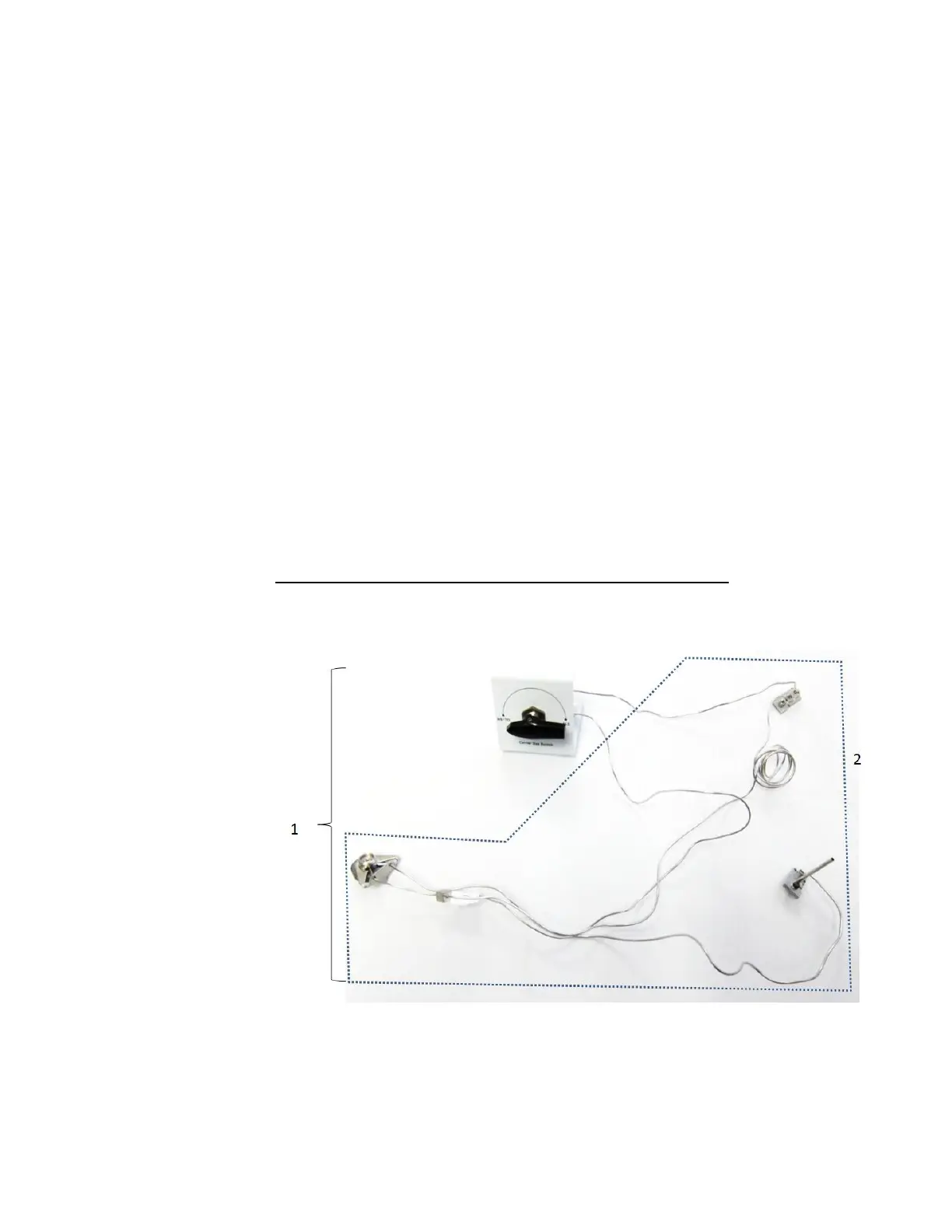

Top level subassemblies for 7820 transfer line switch accessory:

 G4358A 7820 Transfer line switch.

This accessory can simplify the operation for switching from7697A HS or

7667 mini to ALS or manual liquid injection.

G4358A won’t be needed when 7697A HS is installed with 2nd PCM

(option 200, G4562A)

G4358A can’t be installed on non-7820 GC inlet.

Description

Part number

7820 transfer line switch assembly

G4358-67520

Tube weldment assembly

G4358-81520
