Agilent 7820 GC Service
79

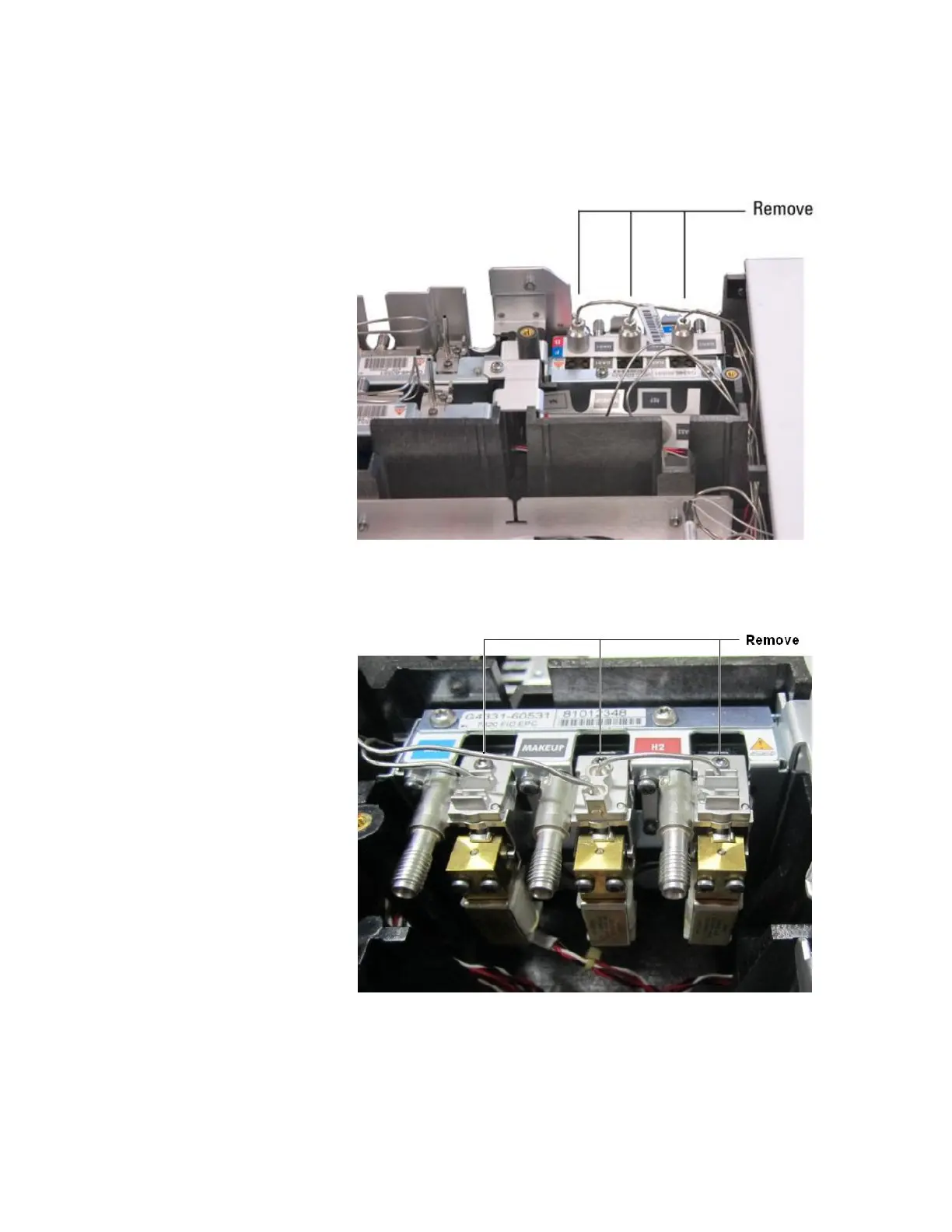

(For the new version detector) Unscrew the captive screws
that secure the detector flow tubing blocks to the EPC module.
Remove the four T-20 screws retaining the NPD assembly to the
GC.
Lift entire unit up and off.
