152
Chapter 13: Using the Effects

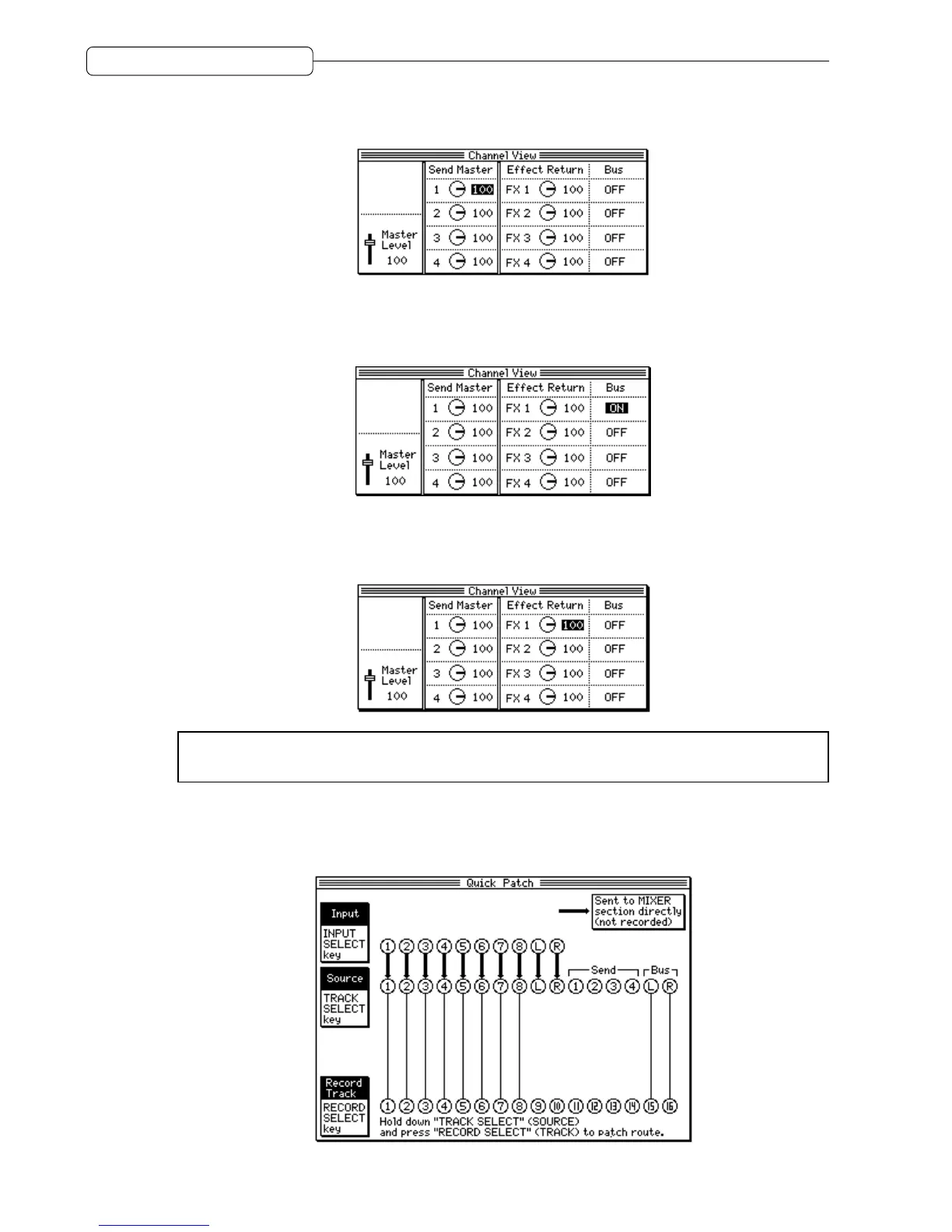

6. Press the [MASTER] key and adjust the Send Master 1 level.
Leave the level to 100 (default). Fine-adjust the level later while playing the DPS16.
7. Set the FX1’s Bus parameter to “ON”.
Now the signal output from the FX1 (the reverb sound in this example) is sent to the ping-pong bus and mixed
with the original dry sound from the TRACK MIX channels.
8. Adjust the Effect Return 1 level in the same screen.
The Effect Return 1 parameter determines the return level (the level of signal sent from FX1 to the ping-pong bus).
Leave the level to 100 (default). Fine-adjust the level later while playing the DPS16.
➸
NOTE :
The Bus and Effect Return 1–4 parameters on this screen are the same as the Bus and Level
fields on the Effect screen.
9. Assign the ping-pong bus L/R signals to tracks 15 and 16 in Quick Patch mode.
The original dry sound from TRACK MIX channels 1–8 is mixed with the FX1’s effect sound in the ping-
pong bus, then sent to tracks 15 and 16.
<ex. Ping-pong bus L/R signals are assigned to tracks 15 and 16.>
