Publication 1756-UM050A-EN-P - December 2001
1756-ENBT Module Diagnostics B-3
Encapsulation Statistics
The Encapsulation Statistics screen offers general information about
TCP connections coming into and going out of the 1756-ENBT
module. Table 2.A lists the most useful fields on the Encapsulation
Statistics screen:

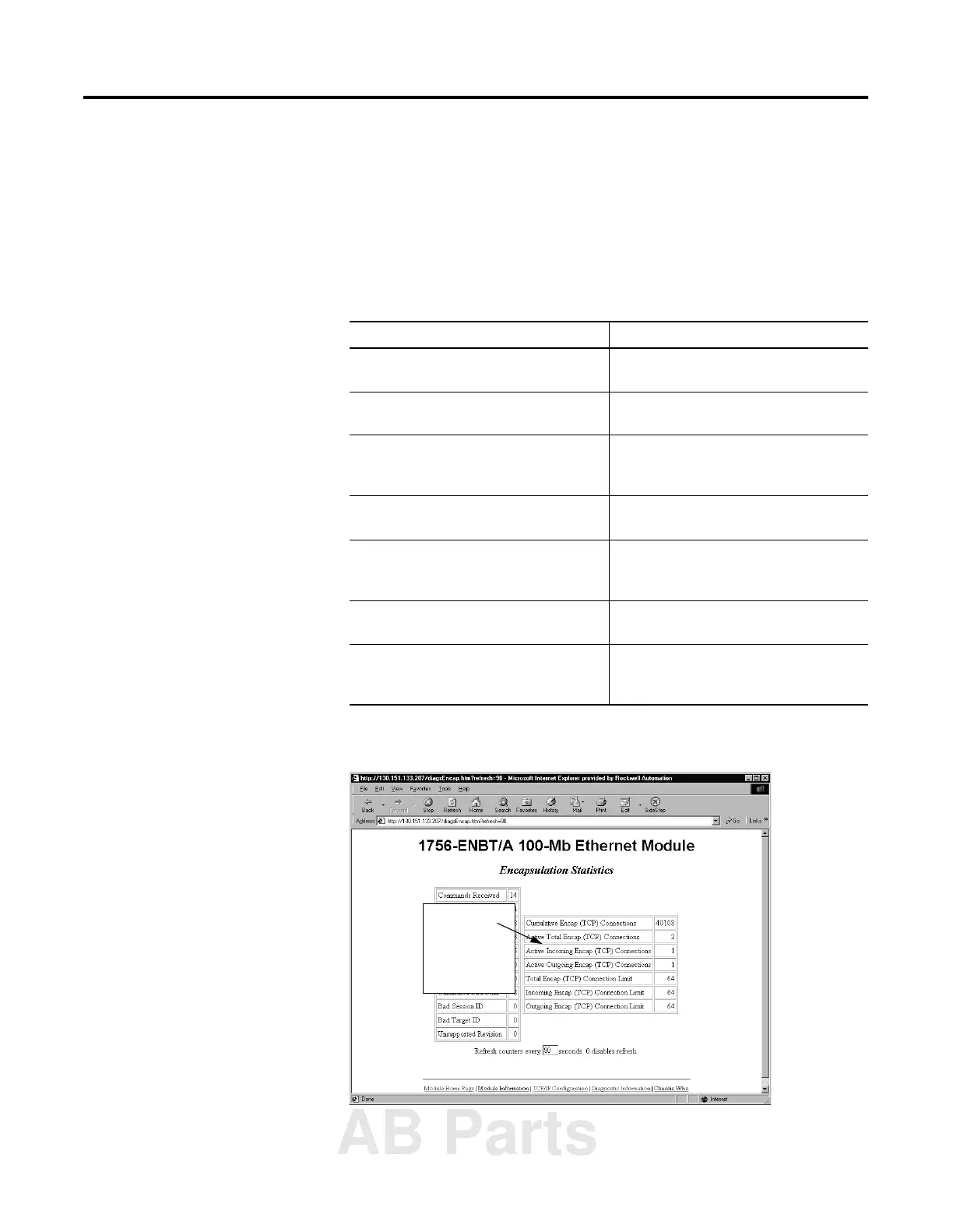

An example of the Encapsulation Statistics screen is shown below.
Table 2.A
Most Useful Diagnostic Fields on the Encapsulation Statistics Screen
Field: Definition:
Cummulative Encap (TCP) Connections The total number of incoming and outgoing
module connections since powering up.
Active Total Encap (TCP) Connections The number of incoming and outgoing
module connections currently active.
Total Encap (TCP) Connection Limit The maximum number (64) of incoming or
outgoing connections the module can make
at any single moment in time.
Active Incoming Encap (TCP) Connections The number of module connections coming
in from the Ethernet media currently active.
Incoming Encap (TCP) Connection Limit The maximum number (64) of incoming
connections the module can make at any
single moment in time.
Active Outgoing Encap (TCP) Connections The number of module connections going
out to the Ethernet media currently active.
Outgoing Encap (TCP) Connection Limit The maximum number (64) of outgoing
connections the module can make at any
single moment in time.
The fields
described in
Table 2.A are
found here.
