Rockwell Automation Publication 750-UM006C-EN-P - March 2022 109
Configure and Start Up the Drive Chapter 4

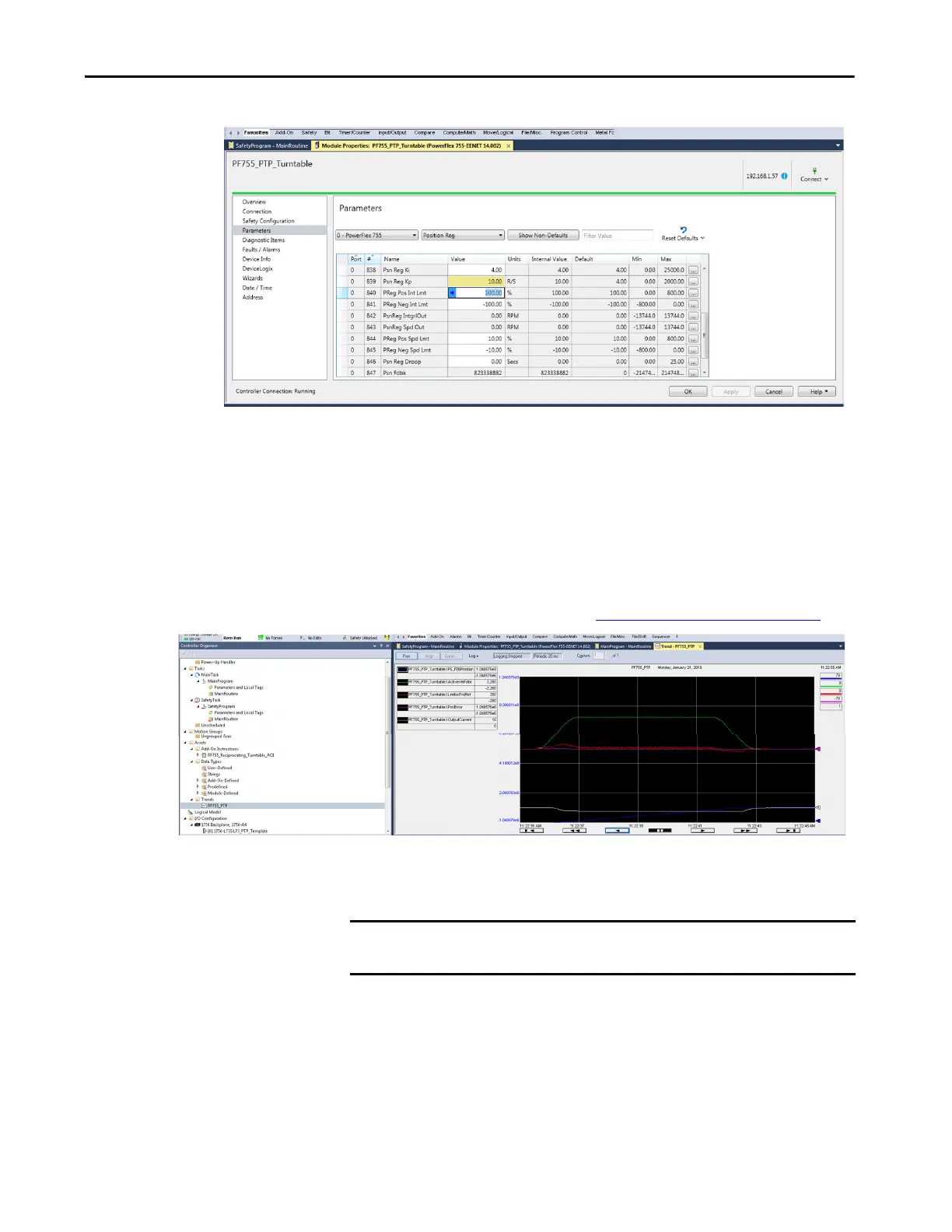

Connect the Motor to the Machine
1. After the performance is configured, connect the motor to the machine,
and repeat the Jog +/- to observe performance.
2. Adjust parameters to obtain machine performance as required.
3. Use the RS Trend function to observe the performance. For more
information on using trend, see Configure an RS Trend
on page 88.
4. When performance is acceptable, click OK to close the PowerFlex 755
drive properties.
IMPORTANT You must close the project to sync the drive parameters to the Logix
controller.
