Chapter 4 Configure and Start Up the Drive

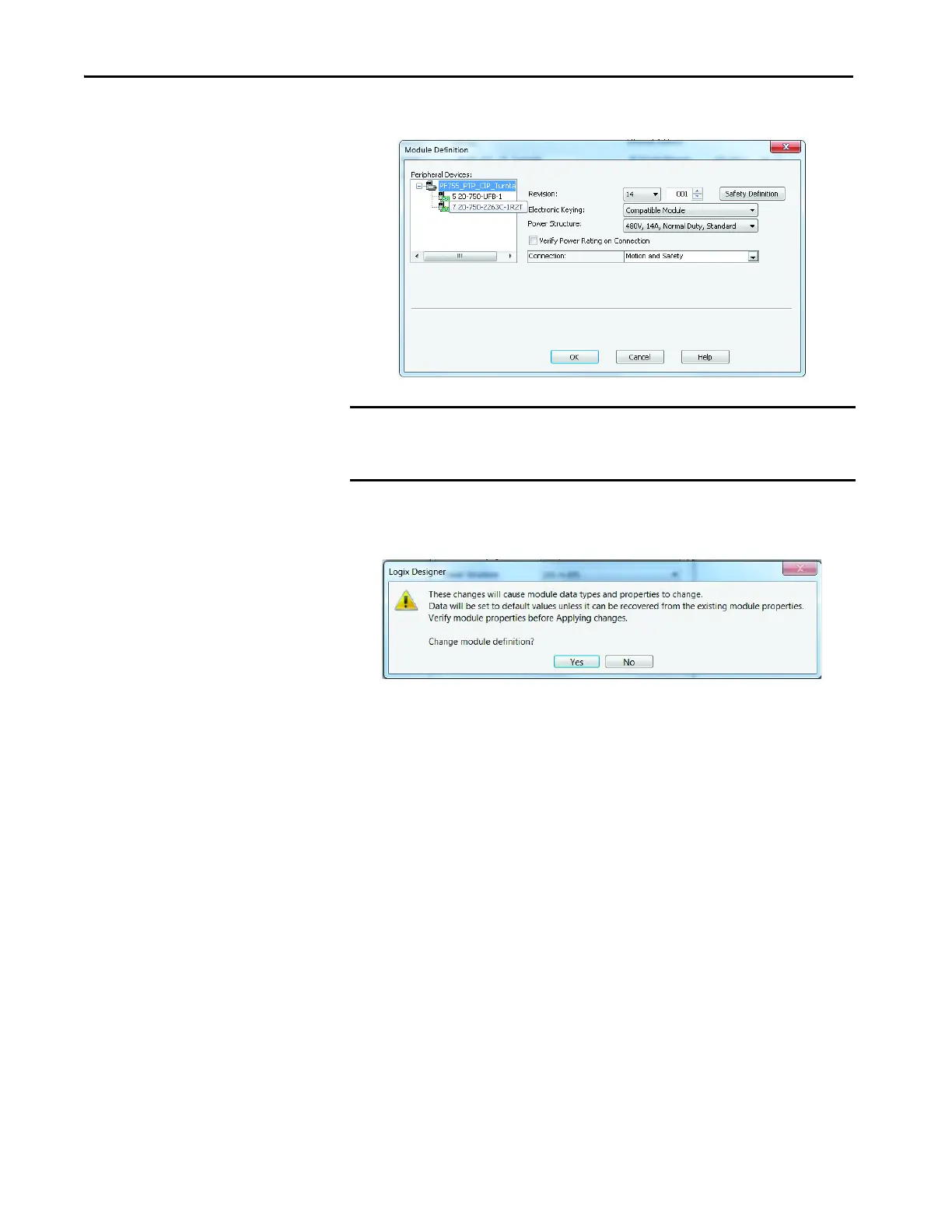

8. After all data has been entered properly, click OK.
9. The following message appears. Click Yes to apply the changes.
When you change parameters, other related parameters change as well.
This message always appears after you have changed a configuration.
This message is a reminder that when you change the power structure,
the identity of the drive changes. If your drive is associated to an axis and
you change the power structure, the axis is disassociated.
Even though a feedback device has been selected, the drive is not
configured. You must associate the axis first, and then you have the
option to configure a feedback module.
10. On the General page, click OK to apply the changes.
Create an Associated Axis
There are two approaches that you can take to create and configure an axis. You
can create an axis first and then add the axis to your motion group, or you can
create your motion group and then add an axis. The procedure that is outlined
in this section takes the approach to create your axis first, configure the axis,
and then add it to your motion group.
IMPORTANT When you change the major revision on the PowerFlex 755 drive, change the
power structure, or change the option module, the axis is no longer
associated with the modules.
