Allen-Bradley The PowerFlex 755 On-Machine User Manual

Rockwell Automation Publication 750-UM006C-EN-P - March 2022 27
Prepare for Installation Chapter 2

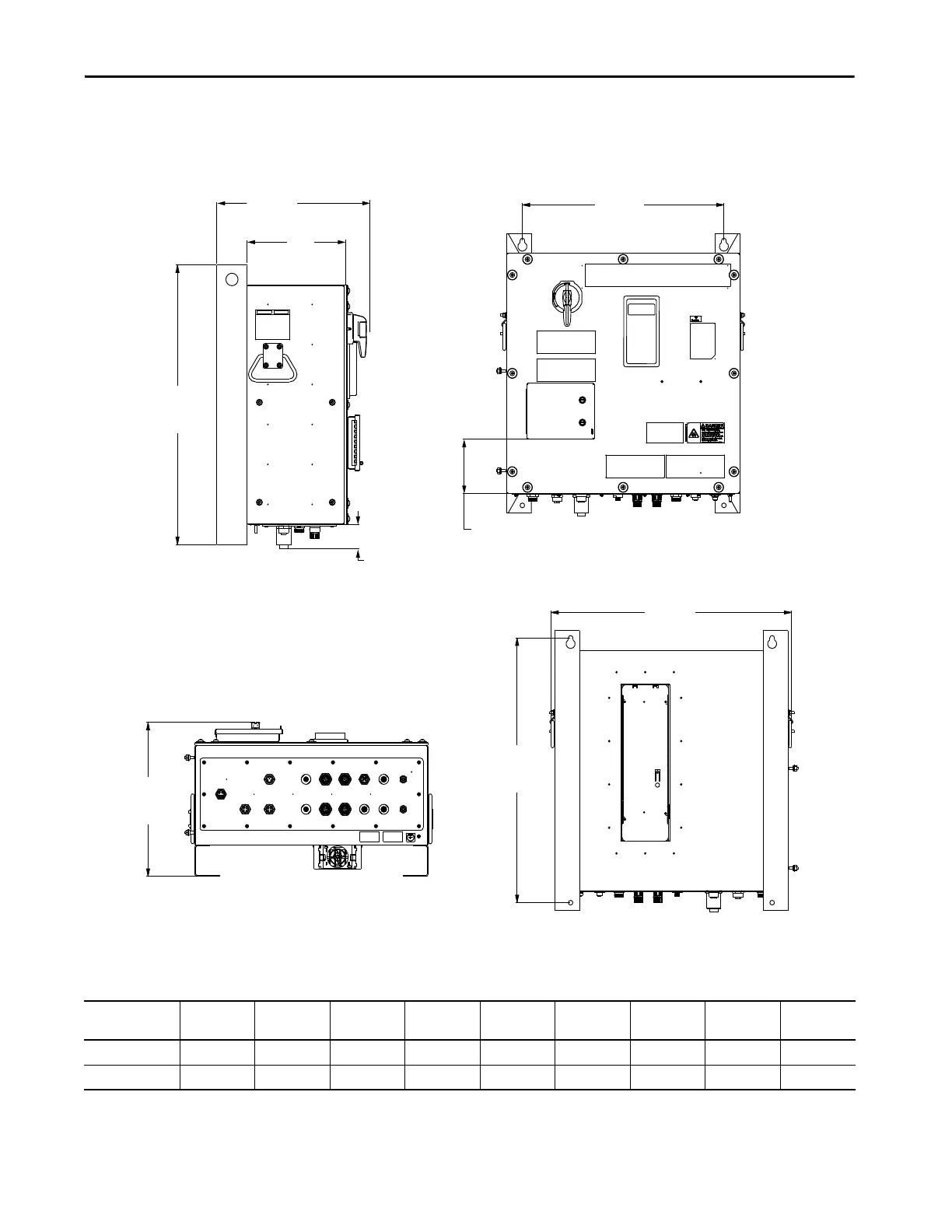

Dimensions
The approximate dimensions are shown in millimeters (inches). Dimensions
are not intended to be used for installation purposes. All dimensions are
approximate.
B
C
A
E
F
D
I
H
G
Left View
Front View
Bottom View
Back View
Drive
Dimensions
ABCDEFGHI
Millimeters 711.2 391.9 260.5 527.0 52.88 136.9 391.9 673.0 649.8
Inches 28.0 15.3 10.26 20.75 2.08 5.39 15.43 26.5 25.58
