Chapter 4 Configure and Start Up the Drive
Commission and Tune the Motor and Drive
You need to tune the motor so that the PowerFlex 755 drive knows how to
control it properly.

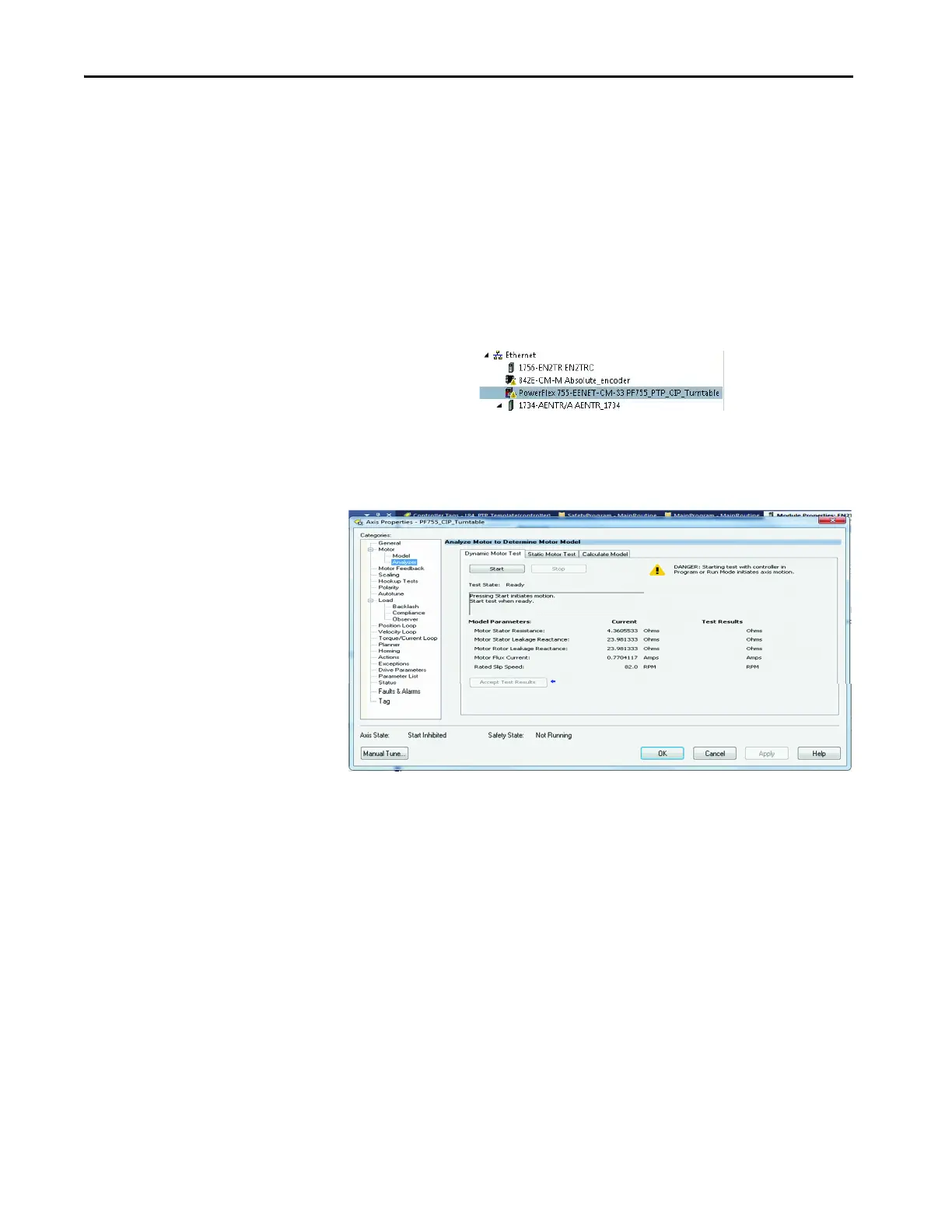

1. Under the Motion Group in the project tree, double-click the axis to
commission, to open the Axis Properties dialog box.
2. From the Axis Properties dialog box, expand the Motor tree, and choose
the Analyzer page.
In our example, the motor is uncoupled.
TIP If at any point during the commission and tuning, an error is encountered
related to the drive, open the drive Module Properties dialog box and review
the pages to find and correct the error. The yellow triangle indicates an error.
