Chapter 2 Prepare for Installation

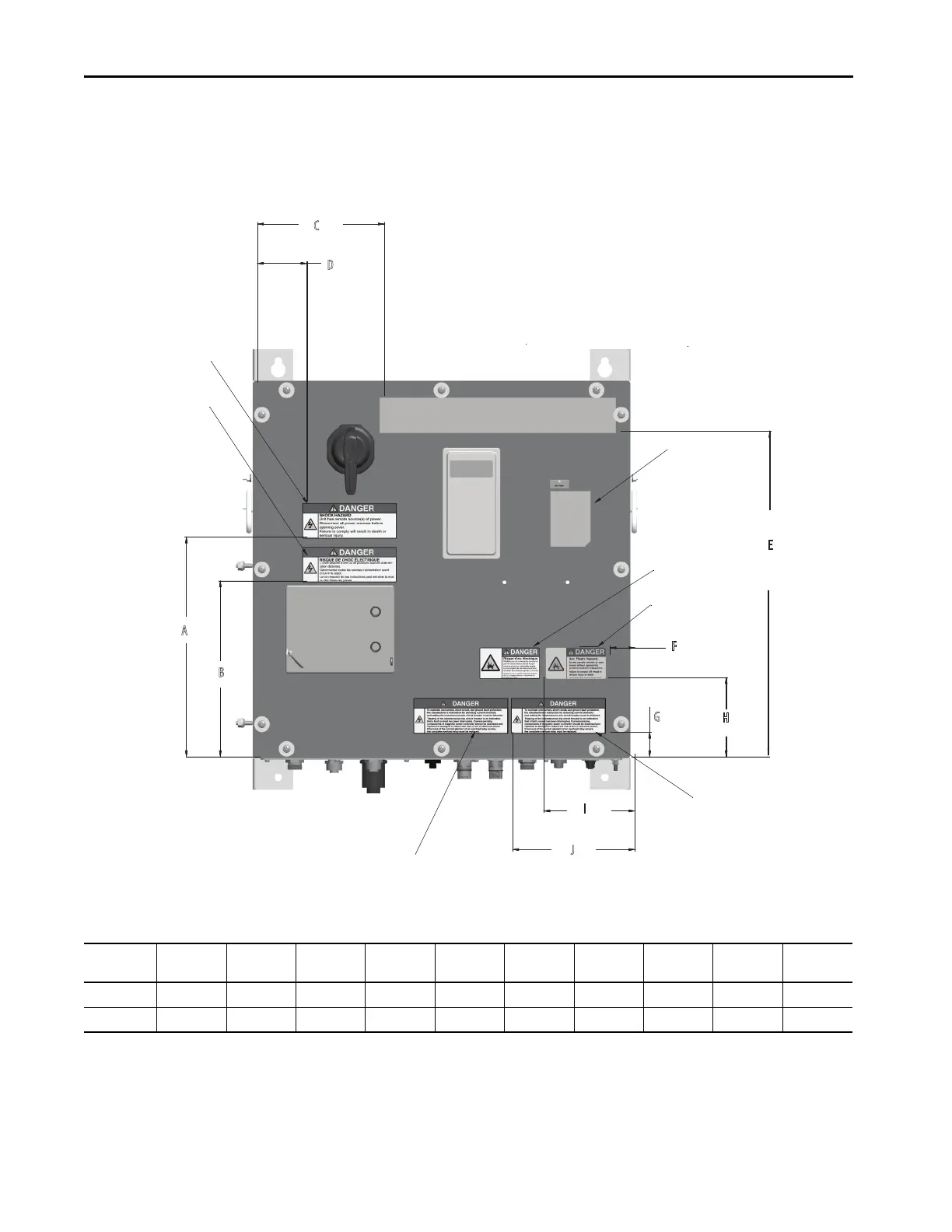

Apply Labels to the Drive
The multiple language labels for the product are shipped with the product and
must be attached to the drive. The English and French language labels should
not be removed or covered up. Any additional labels must be added on a bare
surface.
A
B
C
D
E
F
G
H
I
J
Data nameplate
label
Arch Flash label
(French)
Arch Flash label
(English)
MCB Trip label
(English)
MCB Trip label
(French)
Shock-Hazard label
(English)
Shock-Hazard label
(French)
Drive Label
Dimensions
ABCDEFGHI J
Millimeter 355.0 284.0 205.0 80.0 525.5 40.0 38.7 127.9 147.0 197.4
Inch 13.97 11.18 8.07 3.15 20.69 1.57 1.56 5.03 5.79 7.77
