92 Rockwell Automation Publication 750-UM006C-EN-P - March 2022
Chapter 4 Configure and Start Up the Drive

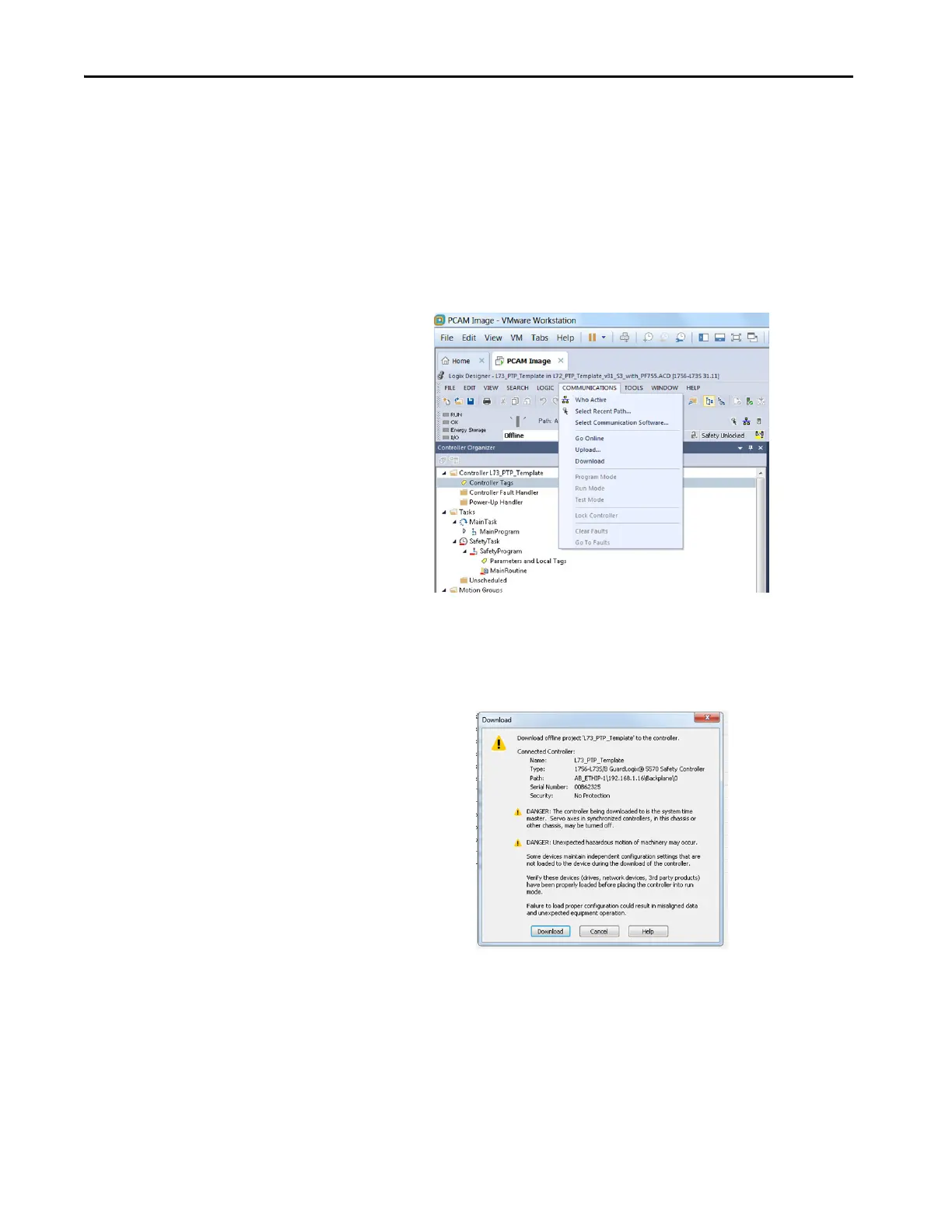

Save and Download Project
1. After the drive is configured and the ladder logic is written, save your
Logix Designer application project.
2. From the Communications menu, select Who’s Active to load the
program to your Logix controller.
3. From the Who’s Active dialogue box, choose your controller, then select
Download.
4. When the Download dialog box appears, click Download to complete
the loading of the program into the Logix controller.
TIP Make sure the laptop IP address is on the same subnet IP before continuing
with Save and Download Project.
