Rockwell Automation Publication 750-UM006C-EN-P - March 2022 167
Drive Maintenance Chapter 5

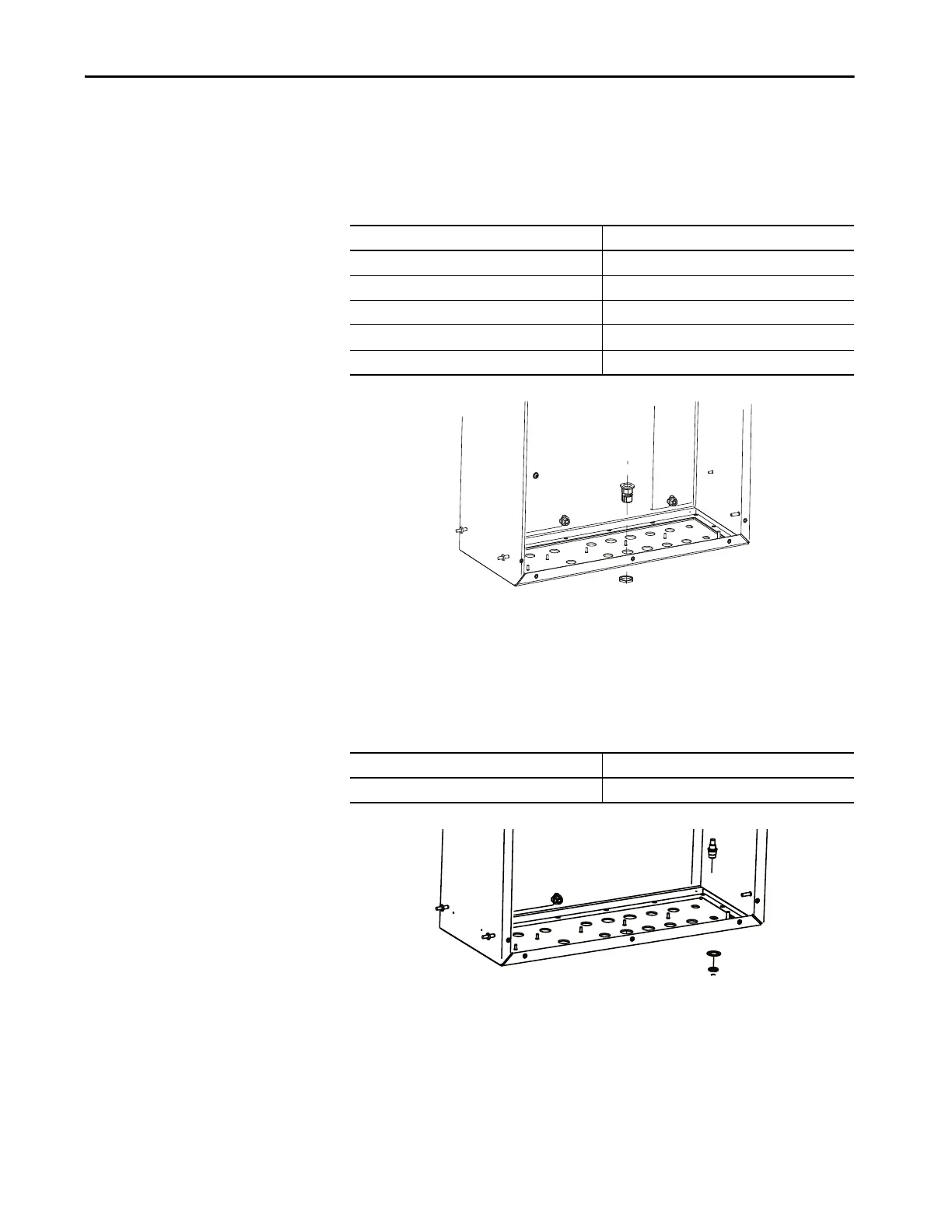

Receptacle Replacement - Type 3
The table below describes the receptacles that fall under type 3. Type 3
receptacles are installed from inside the enclosure, and the lock nut is installed
from the bottom side of the gland plate.
Receptacle Replacement - Type 4
The table below describes the receptacles that fall under type 4. Type 4
receptacles are installed from inside the enclosure, and the washer and lock nut
are installed from the bottom side of the gland plate.
Receptacle Abbreviation Receptacle Function
HIPSC M23 Hiperface SC Encoder
SSIL M23 SSIL Linear Encoder
SSISC M23 SSISC Rotary Encoder
ENC0 M23 Incremental Encoder
DENC0 and DENC1 M23 Dual Incremental Encoder
Receptacle Abbreviation Receptacle Function
ETH1 and ETH2 EtherNet/IP Link
