Chapter 5 Drive Maintenance
Replace PowerFlex Frame 2
Drive (1EA030)
1. Follow the procedure to Remove Power on page 146.
2. Follow instructions to Remove the Front Cover
on page 148.
3. Remove the front cover from the drive.

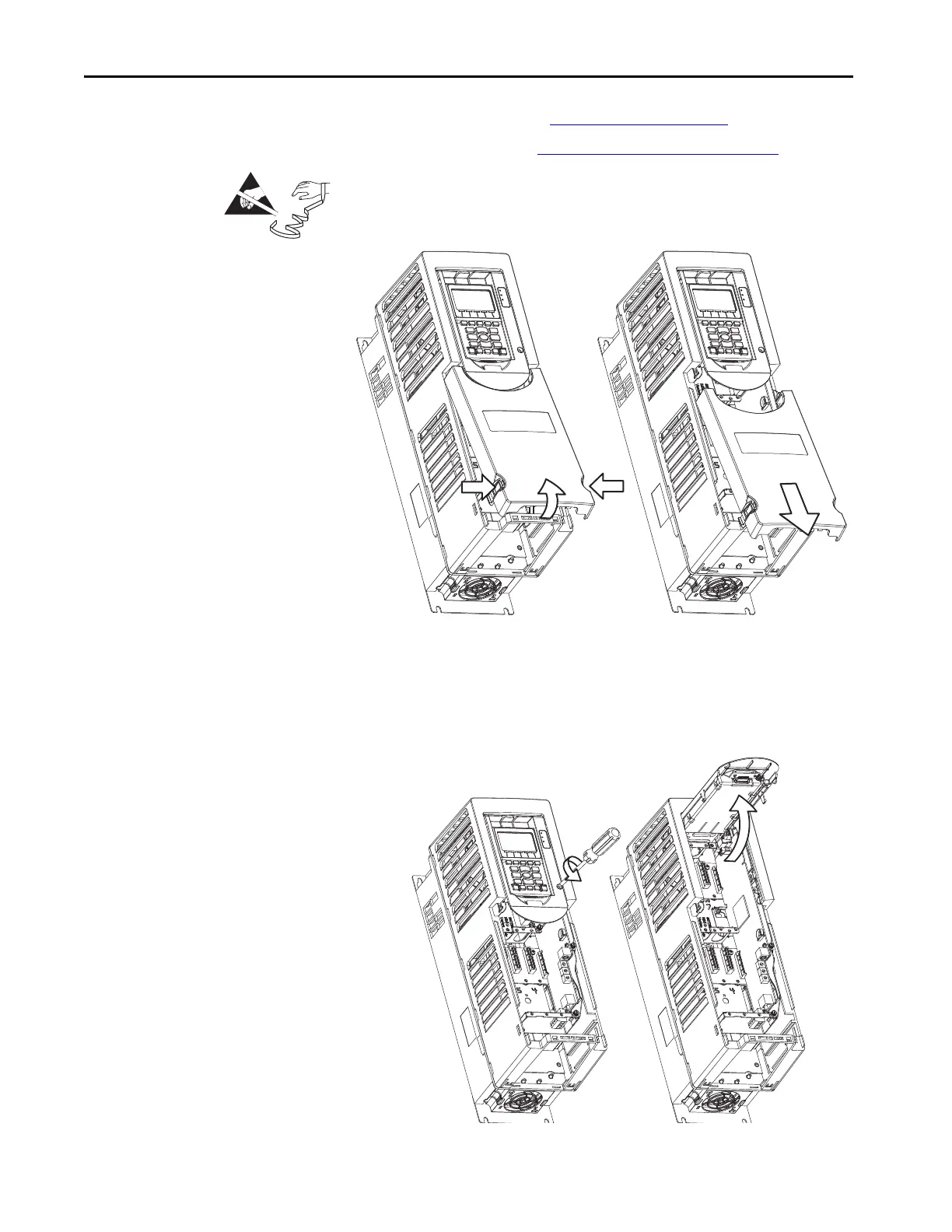

a. Squeeze the locking tabs and pull out the bottom of cover.
b. Pull the cover down and away from the chassis.
c. Loosen the retention screw.
d. Lift the cradle until the latch engages.
TIP Your model of the Frame 2 does not have a HIM mounted to the drive, the
images that are used here are only for reference.
