190 Rockwell Automation Publication 750-UM006C-EN-P - March 2022
Chapter 6 Troubleshooting
Restore Adapter Parameters to Default Configurations
Adapter parameters can be restored in two ways:
• ALL—restores ALL adapter parameters to their default configuration
values.
• MOST—restores MOST adapter parameters—except the following,
Port 13 parameters which are used for network setup:
– 36 [BOOTP]
– 38…41 [IP Addr Cfg 1…4]
– 42…45 [Subnet Cfg 1…4]
– 46…49 [Gateway Cfg 1…4]
– 50 [Net Rate Cfg]
Follow these steps to restore adapter parameters to their default configuration
values.

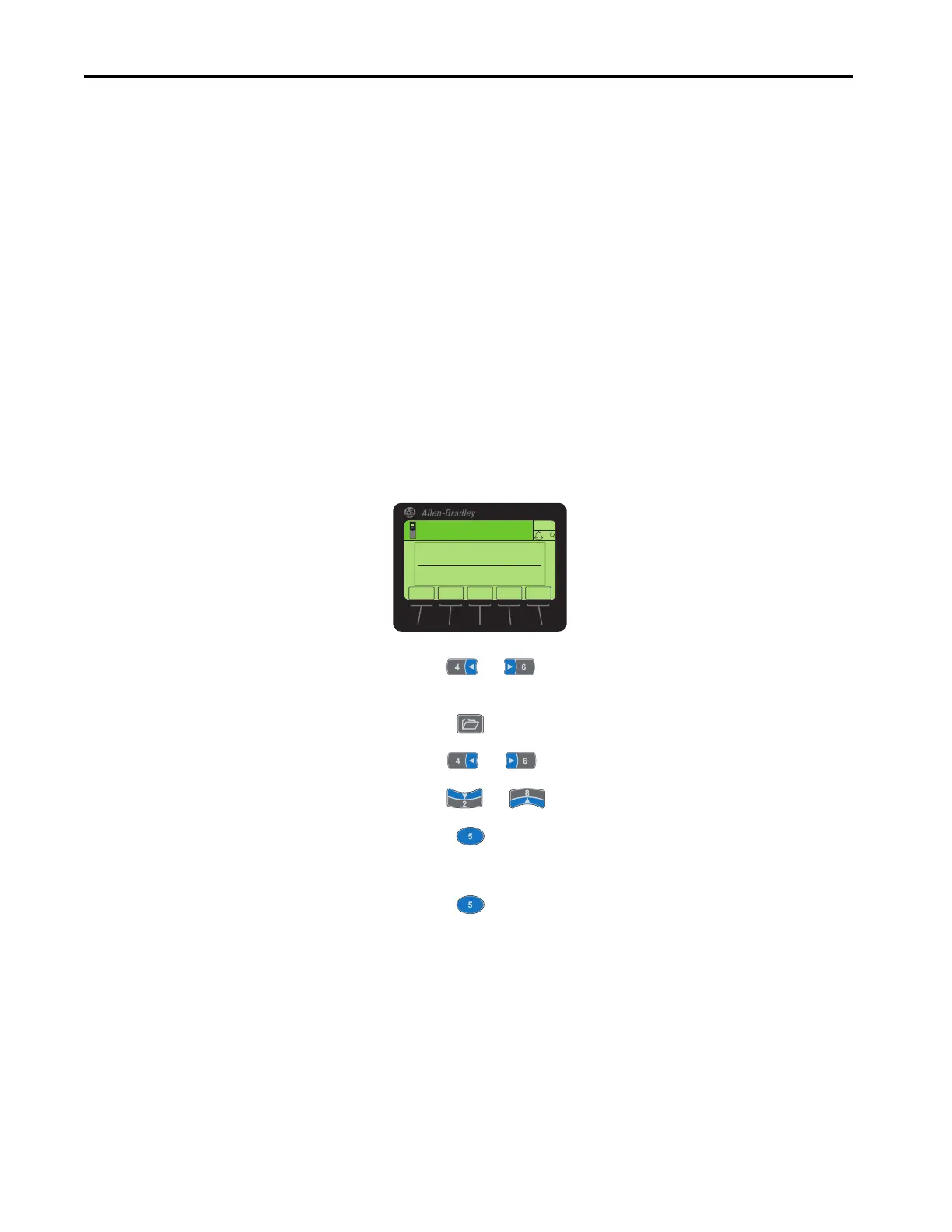

1. Access the Status screen, which is displayed on HIM power up.
2. Use the or key to scroll to Port 13, which is always the drive
port that is dedicated to the embedded EtherNet/IP adapter.
3. Press the key to display the last-viewed folder.
4. Use the or key to scroll to the MEMORY folder.
5. Use the or key to select Set Defaults.
6. Press the (Enter) key.
The Set Defaults dialog box appears.
7. Press the (Enter) key again.
The warning dialog box appears.
Stopped
0.00 Hz
AUTO
Host Drive
240V Cycle
power to the
ESC REF TEXT
F
PAR#
To Next Page
