114 Rockwell Automation Publication 750-UM006C-EN-P - March 2022
Chapter 4 Configure and Start Up the Drive
Select Peripheral Devices and Slot Assignments for Option Modules
Peripheral and feedback devices on the PowerFlex 755 drives are called option
modules. You must assign the port/channel/slot for each device you are using.
Check electrical drawings and the catalog number for specific details regarding
which option modules are installed in slots 4, 5, and 7. See Prepare for Initial
Drive Startup on page 49 and Catalog Number Explanation on page 16 for
more information.

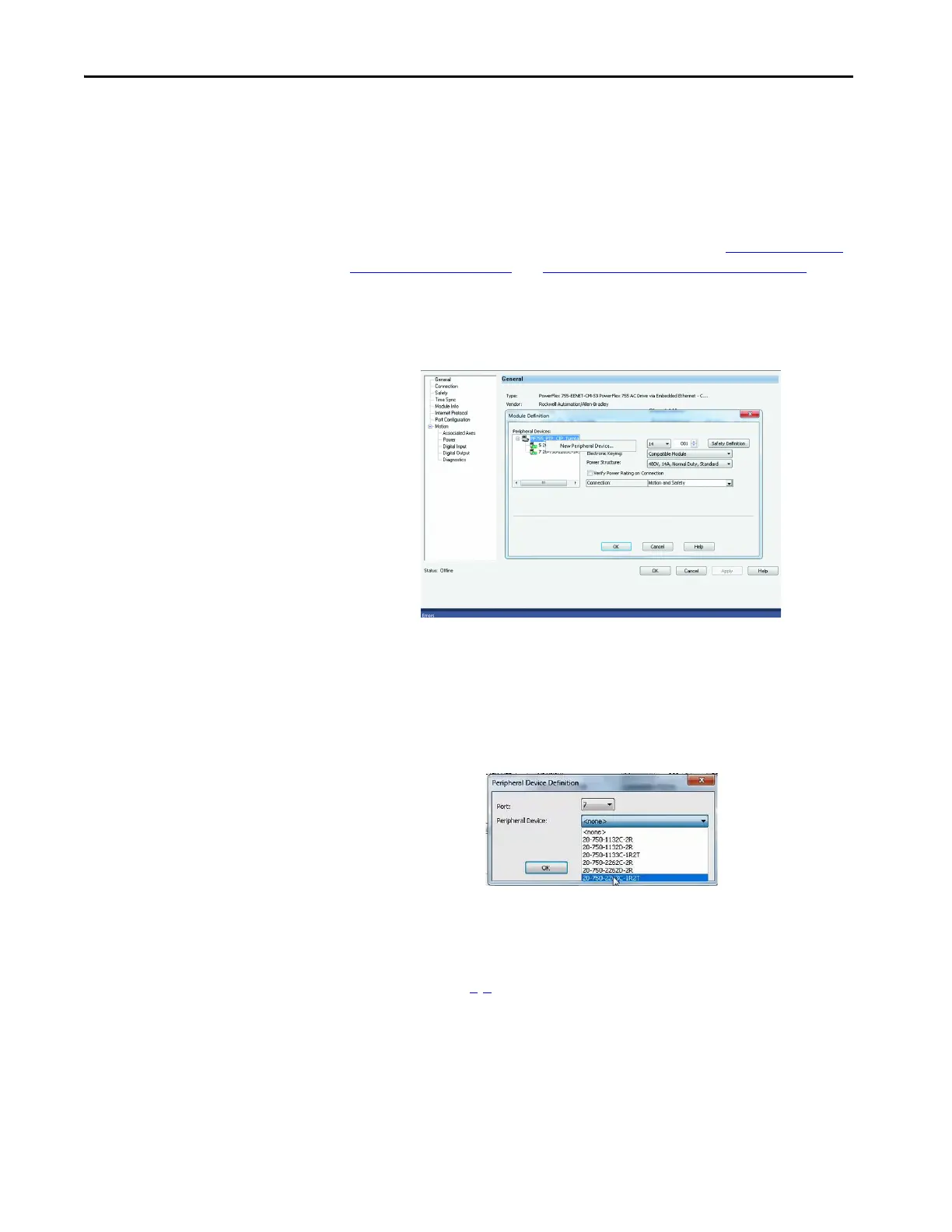

1. From the Module Definition dialog box, right-click on the Drive shown
and Select New Peripheral Device.
2. On the Peripheral Device Definition dialog box, add the option
modules that are provided in your drive.
For each option module, choose the appropriate port and the
corresponding peripheral device.
3. After each option module is added, click OK.
4. Repeat step 2
-3 for each option module.
TIP For option modules that use SSM or S4 option modules, it is recommended
to assign the universal feedback module (UFB) in slot 5.
