Chapter 1 Getting Started
Data Nameplate and UL Listing

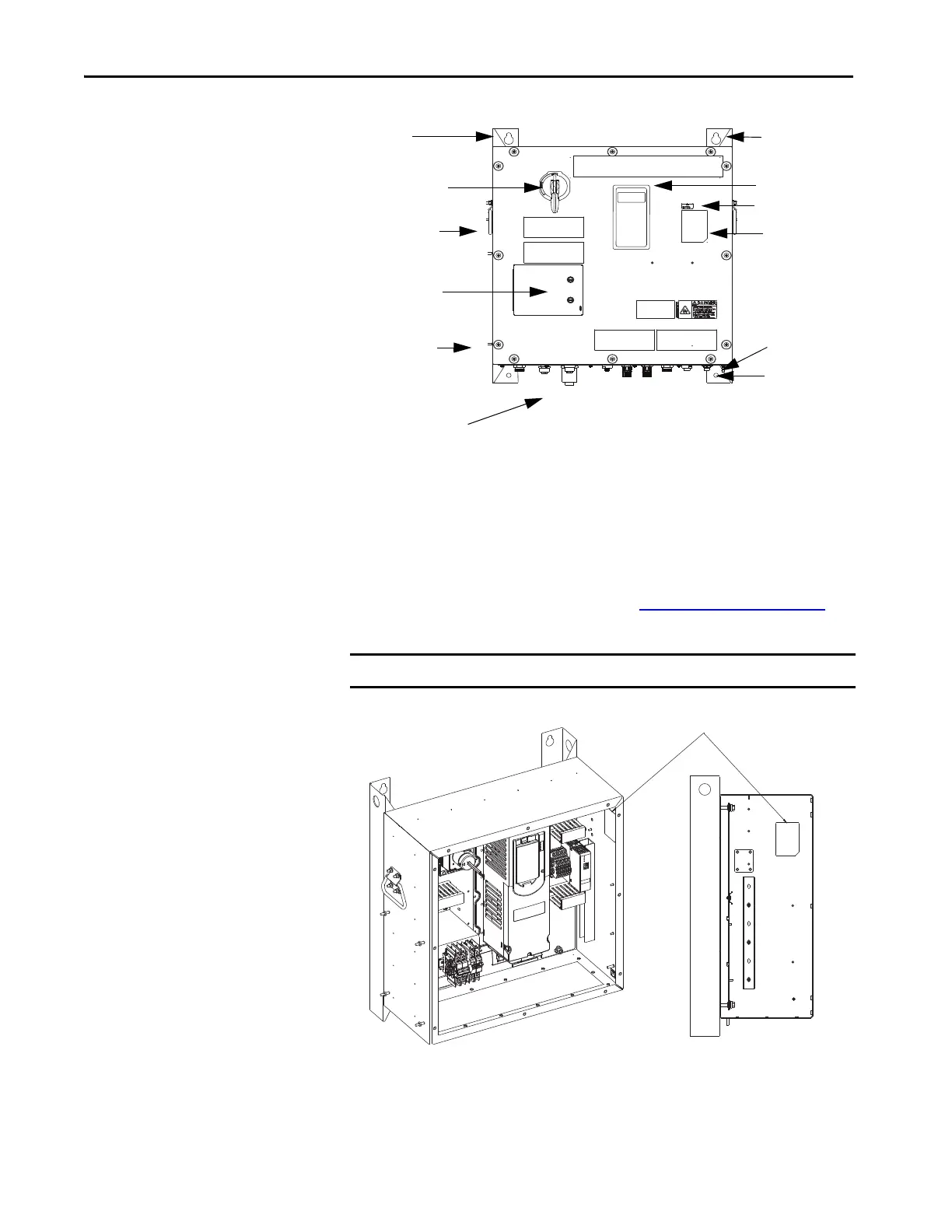

The drive has two data nameplates that are attached to the enclosure. One
nameplate is located inside the enclosure in the upper-right-hand corner, and
the other is on the front cover. The UL label that contains the product rating is
located on the front cover near the data nameplate. The UL listing on the data
nameplate relates to the enclosure rating. See System Overview
on page 11 for
the location of the data nameplate that is on the front cover.
IMPORTANT You do not need to remove the cover to verify the interior nameplate.
Mounting
Hole (x2)
Mounting
Hole (x2)
Hand Lifting
Handles (x2)
Hoist Lifting
Hole (x2)
Main Power
Circuit Breaker Handle
Auxiliary Circuit
Breaker Door
Receptacles
HIM
Collar Stud for
Resistor Mounting
Plate (x4)
Grounding Stud
(PE Ground)
Data Nameplate
UL Label
