168 Rockwell Automation Publication 750-UM006C-EN-P - March 2022
Chapter 5 Drive Maintenance

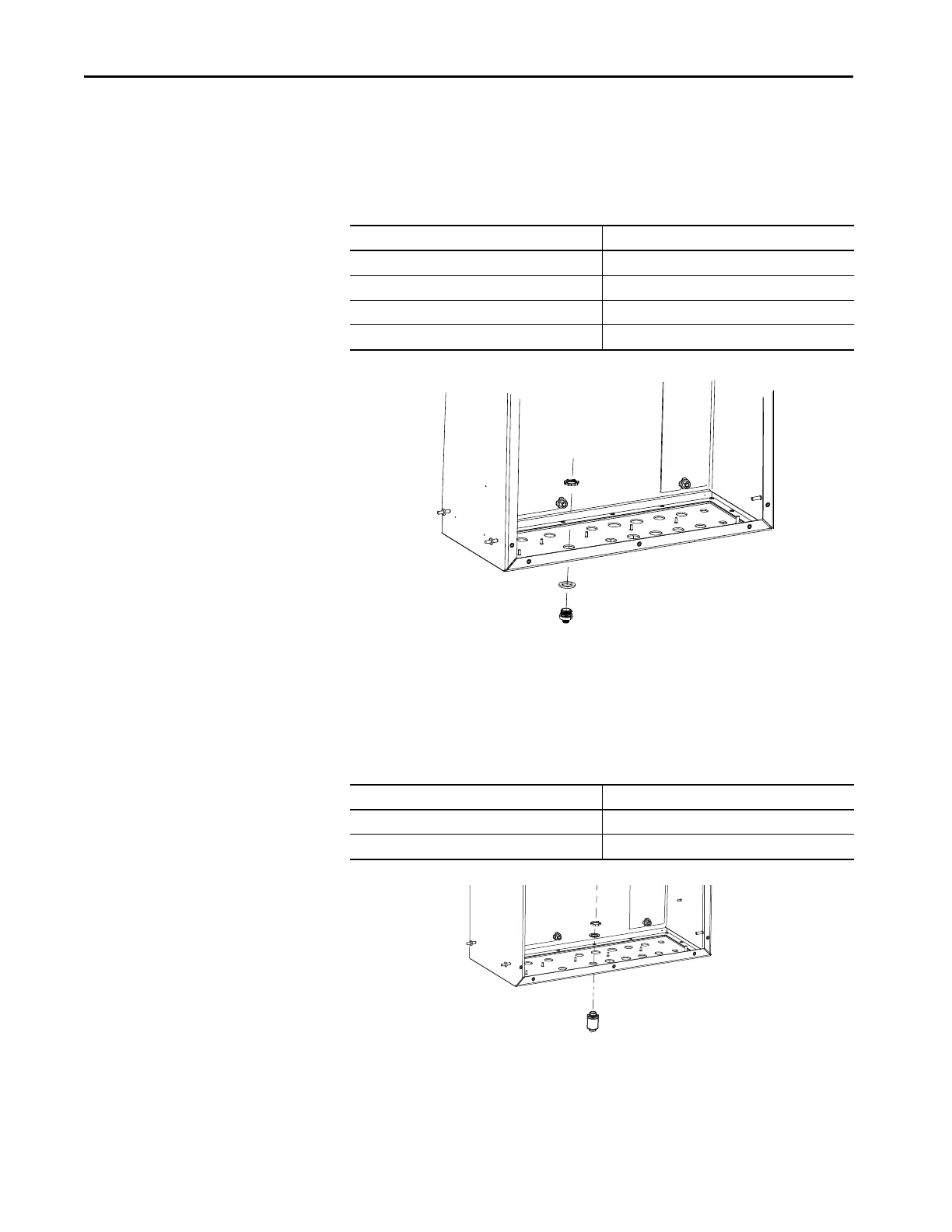

Receptacle Replacement - Type 5
The table below describes the receptacles that fall under type 5. Type 5
receptacles and o-ring are installed from the bottom side of the gland plate, and
the lock nut is installed from inside the enclosure.
Receptacle Replacement - Type 6
The table below describes the receptacles that fall under type 6. Type 6
receptacles are installed from the bottom side of the gland plate, and the flat
washer and lock nut are installed from inside the enclosure.
Receptacle Abbreviation Receptacle Function
EMB1 400/480V AC Source Mechanical Brake
EMB2 24V DC Brake
CPBR 24V DC Brake Power
CP 24V DC Control Power
Receptacle Abbreviation Receptacle Function
T123 (> 22 amp) Output Power
DBR (> 22 amp) Dynamic Brake
