Rockwell Automation Publication 750-UM006C-EN-P - March 2022 155
Drive Maintenance Chapter 5
Torque screws to 9.73 lb•in.

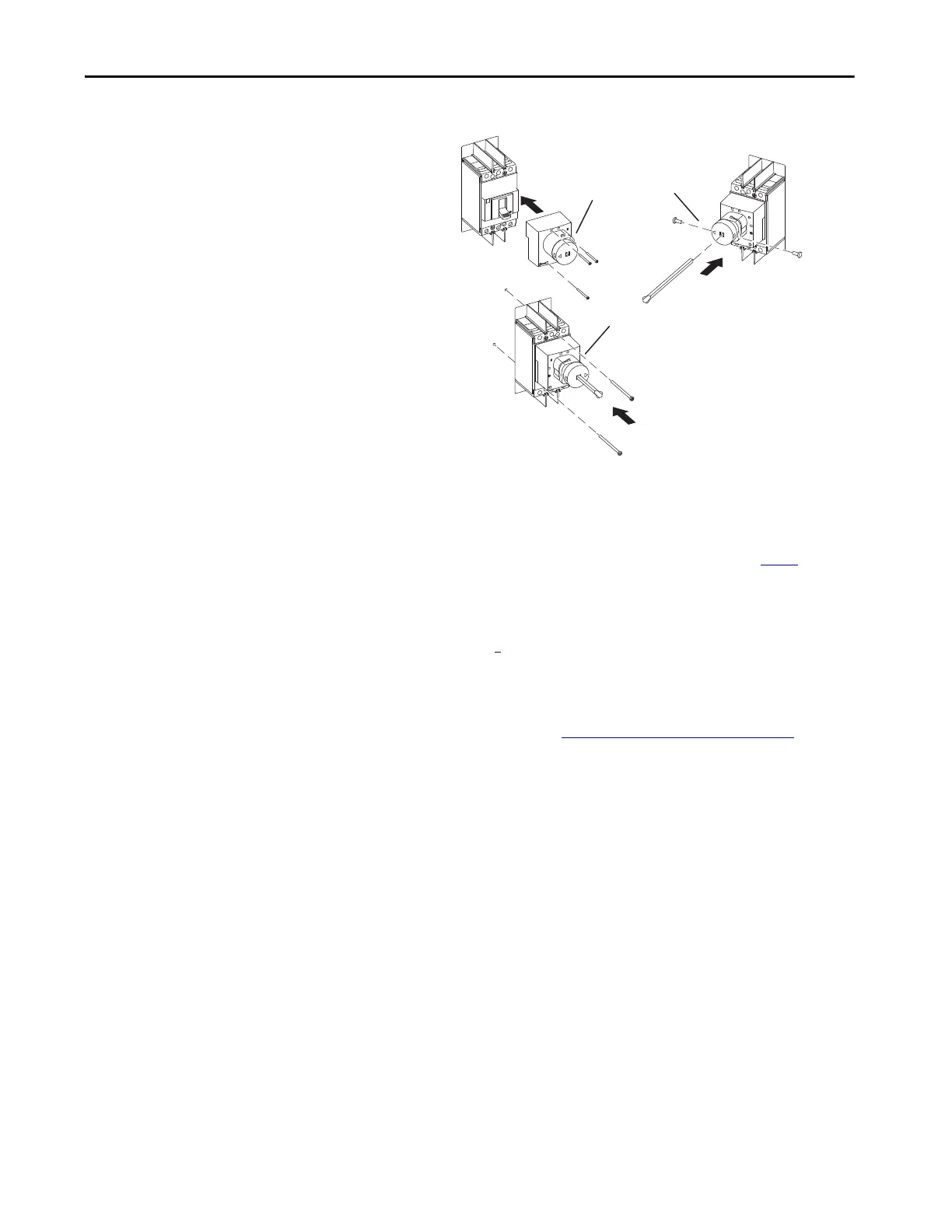

11. Use the two M4 x 73 mm screws and the Phillips screwdriver to attach
the main circuit breaker to the enclosure.
Torque screws to 25 lb•in.
12. Use the #5 hex key to attach the wires/terminals listed in step 3
to the
main circuit breaker.
Torque screws to 62 lb•in.
13. Follow the instructions to Attach the Front Cover
on page 169.
TIP If step 7
was preformed, use two 0.25-20 mm screws and the T20 torque
bit to attach the rotary disconnect switch to the front cover.
Torque screws to 25 lb•in.
