14 Rockwell Automation Publication 750-UM006C-EN-P - March 2022
Chapter 1 Getting Started

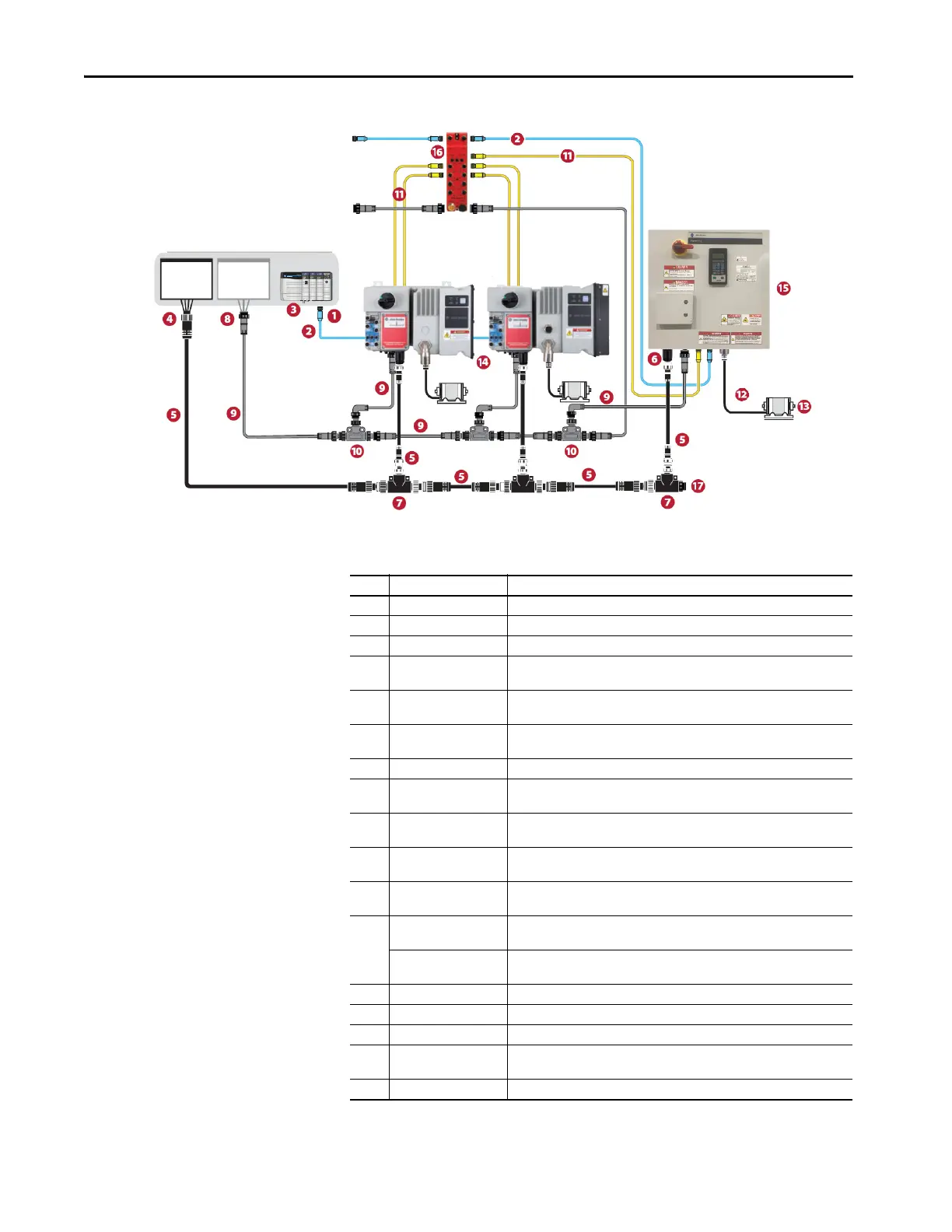

No. Example Cat. No.
(1)
(1) The (*) used in the example catalog number, represents the variations.
Description
1 1585A-* CAT5e Bulkhead Connector and Receptacle
2 1585D-* CAT5e Patchcord, IP67, M12 D-Code
3 1585J-* CAT5e, Patch Cable, IP20, RJ45 to RJ45
4 280-M35F-* Three-Phase Power Receptacles - Female receptacles are a panel mount
connector with flying leads
5 280-PWR35* Three-Phase Power Trunk-Patchcord cable with integral female or male
connector on each end
6 280-M35M* Three-Phase Power Receptacles - Male receptacles are a panel mount
connector with flying leads
7 280-T35 Three-Phase Power Tee connects to one M35 drop-line to trunk connectors
8 888N-* Control Power Receptacles - Female/male receptacles are a panel mount
connector with flying leads
9 889N-F4* Control/Auxiliary Power Media Patchcords – Patchcord cable with integral
female or male connector on each end
10 898N-43PB-N4KT Control/Auxiliary Power Tees - The Tee is used with patchcord to connect
several modified ArmorStart to the same control power source
11 889D-* Patch cable between Safety I/O module output and the drive safety input,
when hardwired based safety is used
12 2090-CPBM7E7* SpeedTEC Cable, Motor Power With Brake Wires, SpeedTEC DIN Connector,
Extension Receptacle (SpeedTEC ready) (only for servo motors)
280-PWRM35* or
280-PWRM29*
Three-Phase power patchcord cable with integral female or male connector on
each end (only for induction motors)
13 Induction motor or Allen-Bradley® servo motor
14 ArmorStart controller
15 PowerFlex 755 On-Machine Drive
16 1732ES-IB8X0BV4 or
1732ES-IB12X0BV2
ArmorBlock® Guard I/O™
17 889A-QCAP Sealing cap, internal thread
