Chapter 2 Prepare for Installation

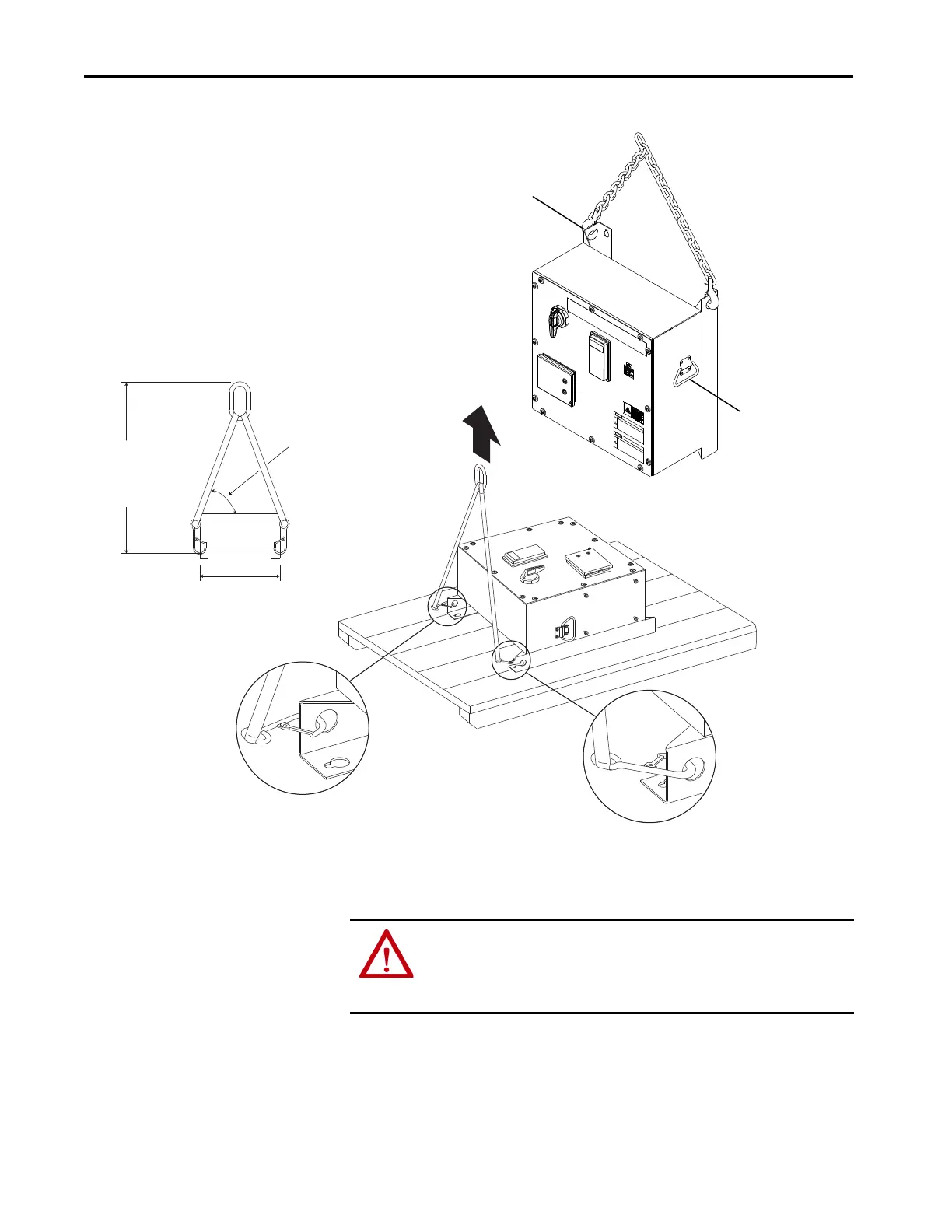

3. To reduce tension on the rigging and compression on the structural
angle, verify that the angle between the straps or cables and horizontal
plane is greater than 60°.
Dimensions are in millimeters and (inches).
Hand-hold
Lifting Handle
(one left / one right)
Mechanical
Lifting Handle
(one left / one right)
ATTENTION: When approaching the full upright (vertical) position, the
weight can shift and cause the drive to swing unexpectedly. Control the
movement of the drive as it is lifted from the shipping container. Failure to
comply can result in personal injury or equipment damage.
