46 Rockwell Automation Publication 750-UM006C-EN-P - March 2022

Chapter 3 Install the Drive

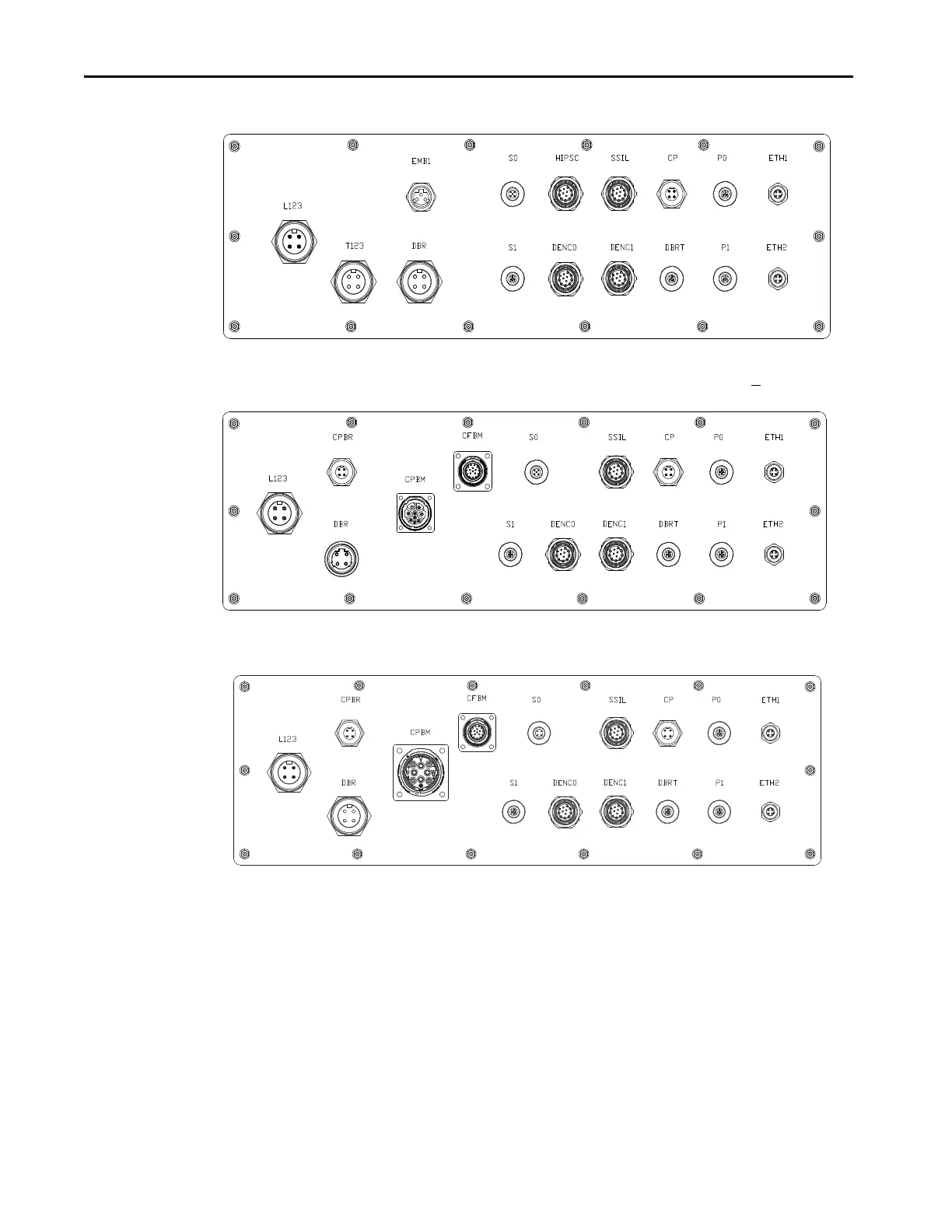

Figure 6 - Maximum Possible Receptacle Details Induction Motor Source Brake (22 amps)

Figure 7 - Maximum Possible Receptacle Details Servo Motor 24V DC Brake (<

14 amps)

Figure 8 - Maximum Possible Receptacle Details Servo Motor 24V DC Brake (22 amps)
