AT-TQ5403 and AT-TQm5403 Access Points User’s Guide
107
2. Select LLDP from the sub-menu. Refer to Figure 29.

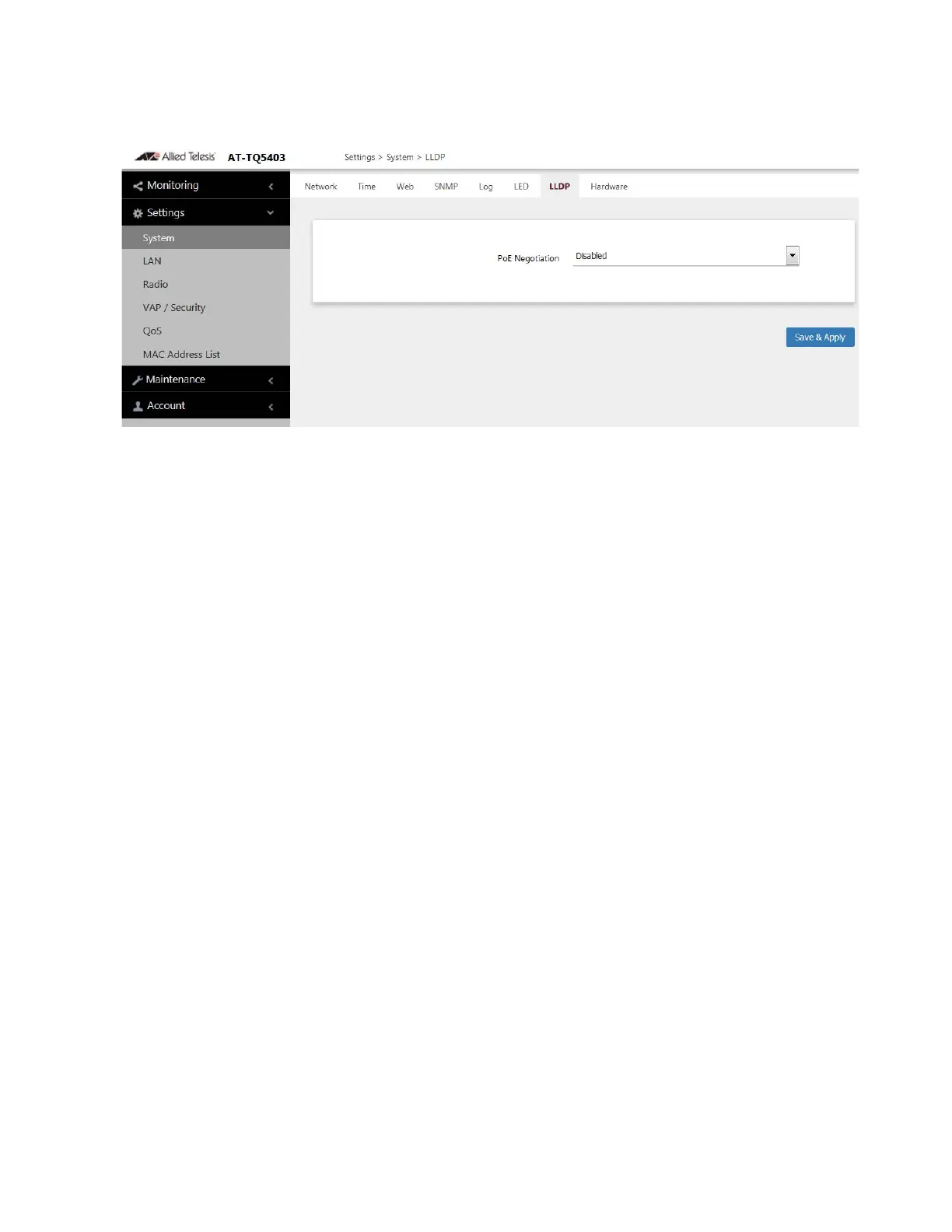

Figure 29. LLDP Window
3. Select one of the following from the PoE Negotiation pull-down menu.
 Enabled: Enables PoE negotiation. The access point transmits the
Extended Power Management TLV on the LAN1 port.
 Disabled; Disables PoE negotiation. This is the default.
4. Click the SAVE & APPLY button to save and update your
configuration.
If you enabled the feature, the access point sends Extended Power
Management TLVs to the LLDP-MED device connected to the LAN1
port.
