Displaying the Status of LAN1 and LAN2 Ports
To display the status of the LAN1 and LAN2 ports, perform the following
procedure:
1. Select Monitoring > Status from the main menu.
2. Select LAN1 or LAN2 from the sub-menu. Figure 30 shows the LAN1
port status window.

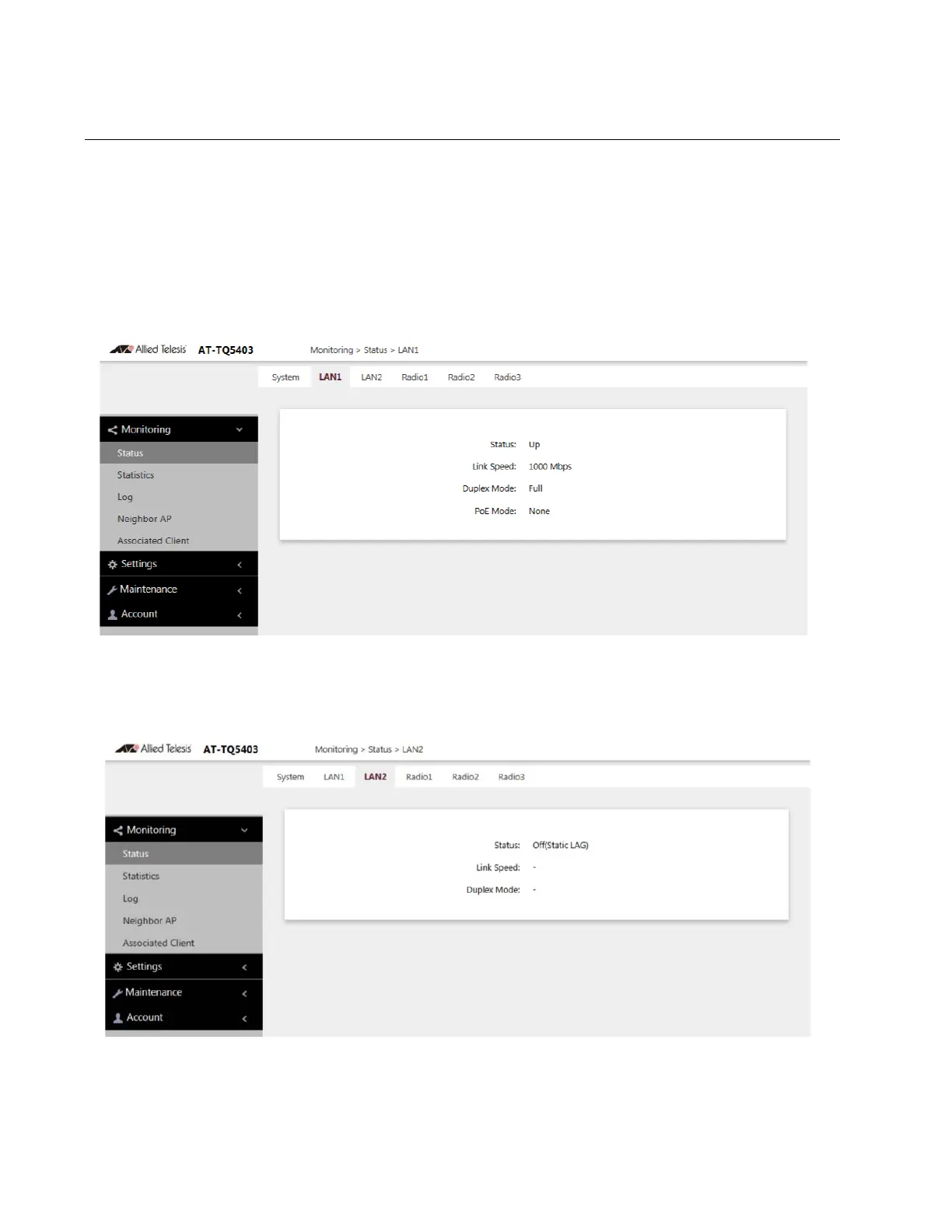

Figure 30. LAN1 Window
Figure 31 shows the LAN2 port status window.
Figure 31. LAN2 Window
