ML-2050A/2051A/2150A

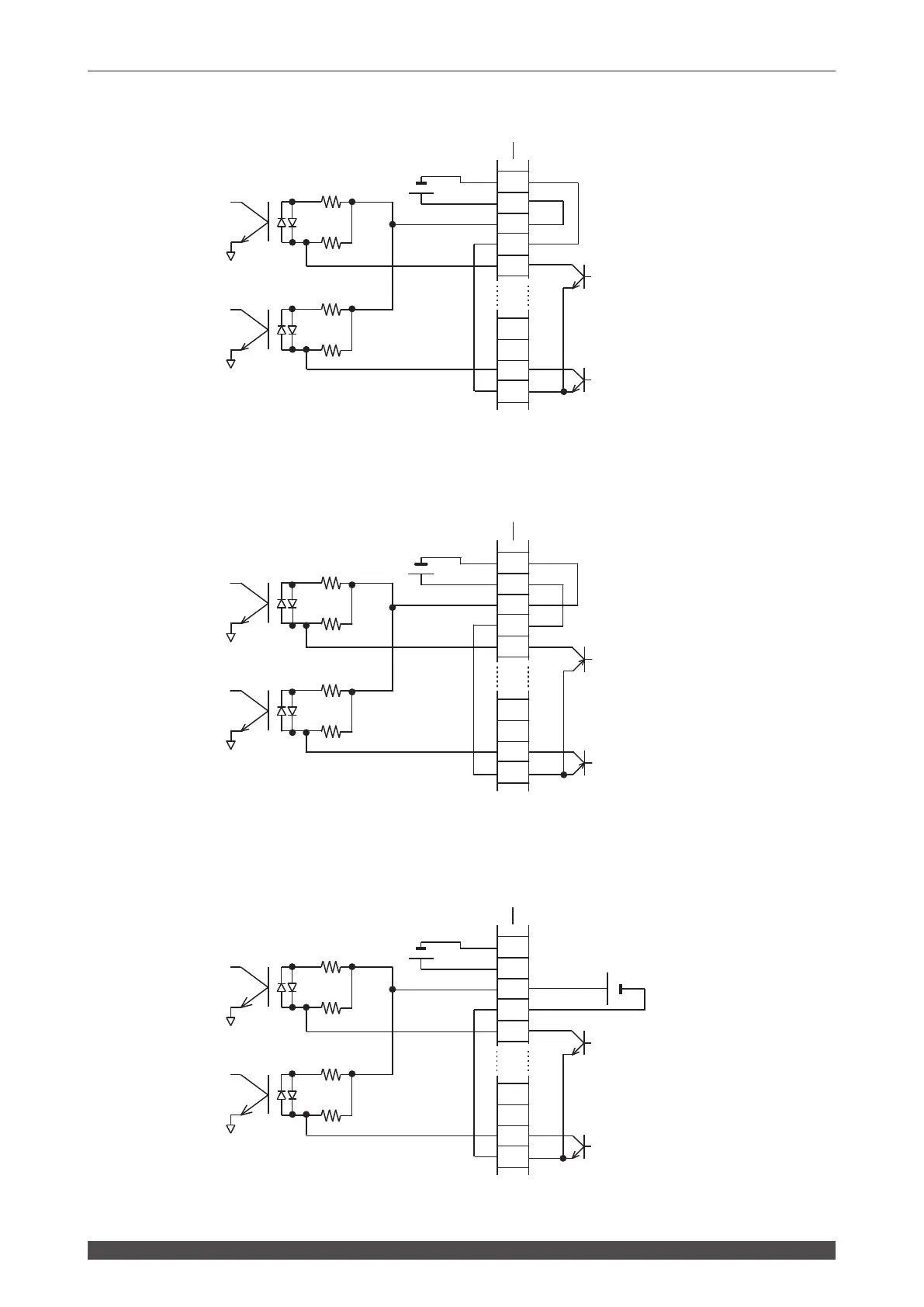

3. Connector Functions
When External Inputs are NPN Transistors
When External Inputs are PNP Transistors
When External Power Source is Supplied
10k
10k
24V DC
1
4
15
16
17
18
31
32
33
34
0V OUT
+24V OUT
External signal source
External signal COM
Input COM
10k
10k
10k
10k
24V DC
14
15
16
17
18
31
32
33
34
0V OUT
+24V OUT
External signal source
External signal COM
Input COM
10k
10k
10k
10k
24V DC
14
15
16
17
18
31
32
33
34
10k
10k
24V DC
