Replacing the Battery of the Control Board of the Control Panel
Replace the lithium battery on the control board provided under the control panel.
Replace it every 3 years.
ATTENTION
Follow your local environmental regulations for battery disposal because Lithium
Battery contains dangerous materials.
Item required
Phillips screwdriver and lithium battery CR2450
Operating Procedure

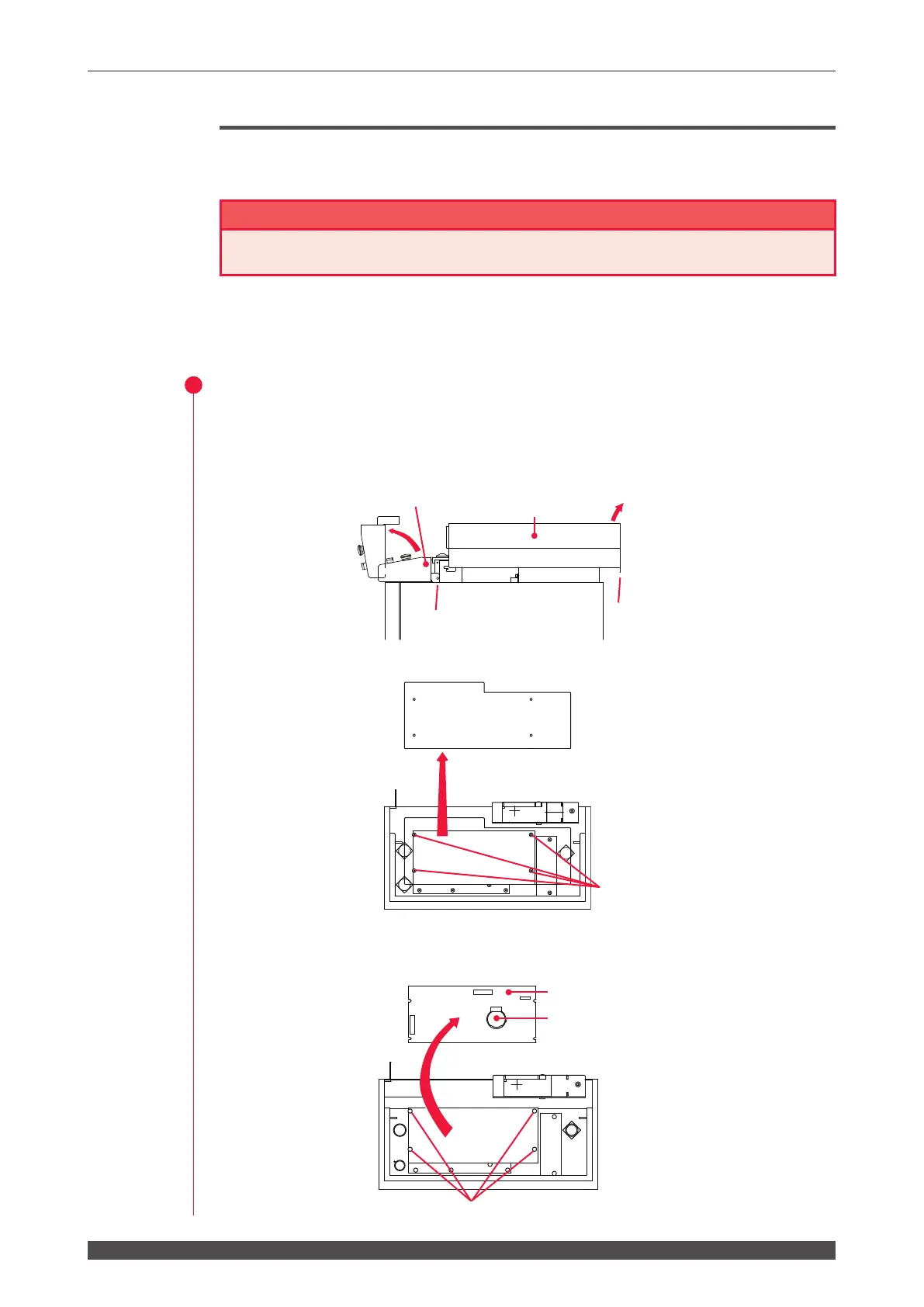

(1) Loosen the two screws (A) on the back and remove the oscillator cover.
(2) Remove the screw (B) and open the control panel.
(3) Remove the four screws (C) to remove the protective plate.
(4) Remove the four screws (D) and remove the control PC board.
The control PC board is connected with connector to a PC board beneath it.
Draw the control PC board straight up.
Battery
Control panel
Remove the switches.
Control PC board
Oscillator cover
(A)
(B)
(C)
(D)
