3. Maintenance of the Laser Oscillator Section
Replacing the Flashlamp
The flashlamp is provided in the laser chamber and used for excitation at laser
oscillation. We recommend replacing the ashlamp when the number of laser outputs
reaches about 1,000,000 shots, as standard.
CAUTION
When replacing the ashlamp, turn OFF the power to the Laser and wait for at least 5
minutes.
Item required
Gloves (vinyl), clean cloth, alcohol, Phillips screwdriver, ball-point screwdrivers 2.5
mm and 4 mm, and ashlamp (new product)
1
Removing the Laser Chamber

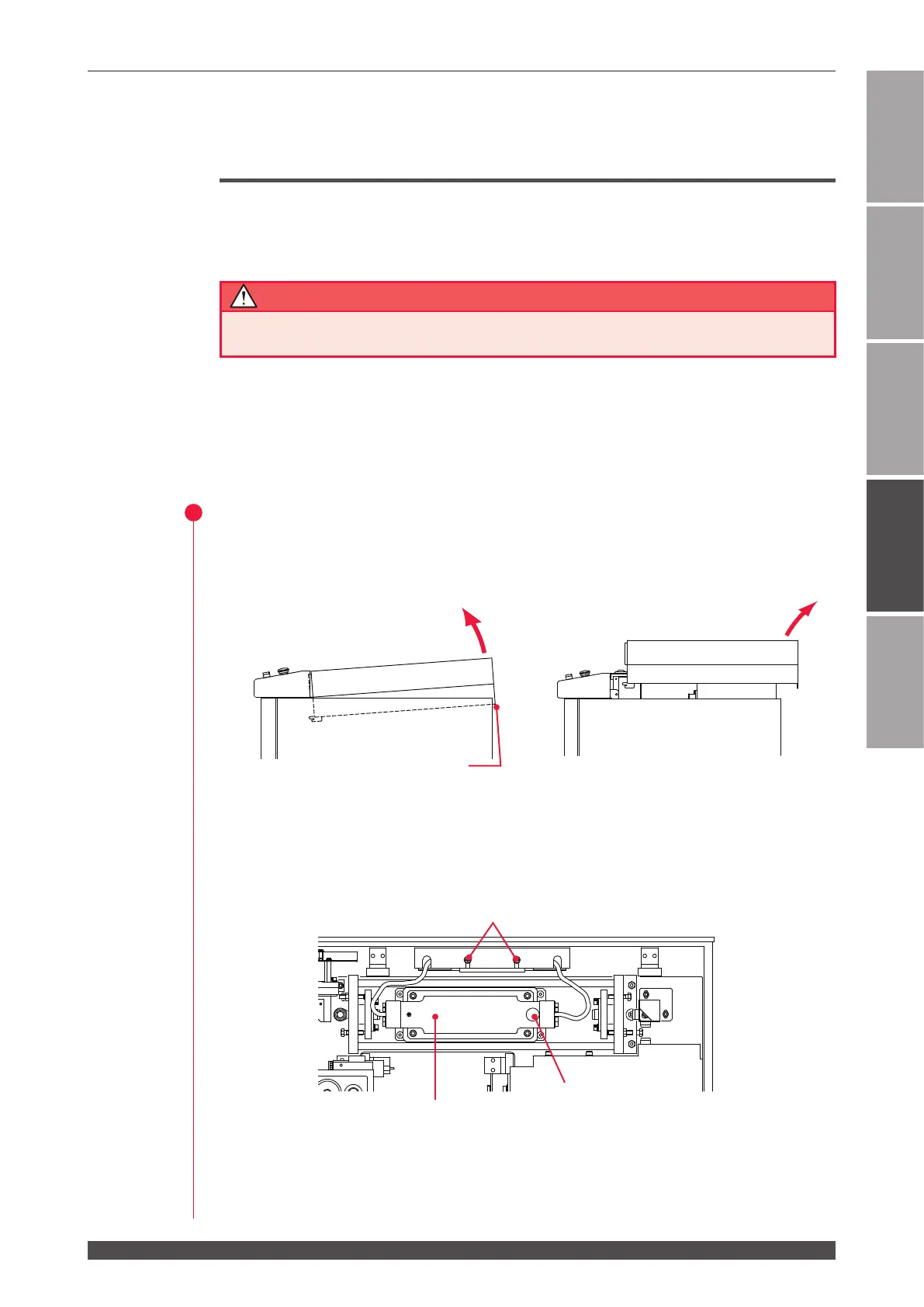

(1) Turn OFF the power supply of the laser and remove the oscillator cover.
⇒
Remove this cover, at least, in 5 minutes after turning OFF the power supply.
(2) Turn the set screw of the water drain of the laser chamber by hand to remove it,
and bleed the chamber of water. After bleeding, tighten the set screw as it was.
(3) Remove the 2 screws and remove the electrode cover.
Loosen the screw at the rear
of the cover and raise it.
Oscillator cover
Pull the cover obliquely backward.
Remove the 2 screws.
Set screw
Laser chamber
