5. Connecting the External Communication Conversion Adapter (Option)
47
ML-2050A/2051A/2150A
Chapter 2 Connections and Preparations of Each Section
Introduction Part
Installation and
Preparation Part
Operating Part Maintenance Part Appendixes
5. Connecting the External Communication Conversion
Adapter (Option)
To perform laser welding by external communication control (RS-485 CONTROL)
using Control unit provided with RS-232C such as personal computer, the optional
external communication conversion adapter "RS-232C/RS-485 conversion adapter"
is required.
⇒
For making a connection to a PLC provided with RS-485, the conversion adapter
for external communication is not required.
Item required
RS-232C/RS-485 conversion adapter, RS-485 cable, and RS-232C cable

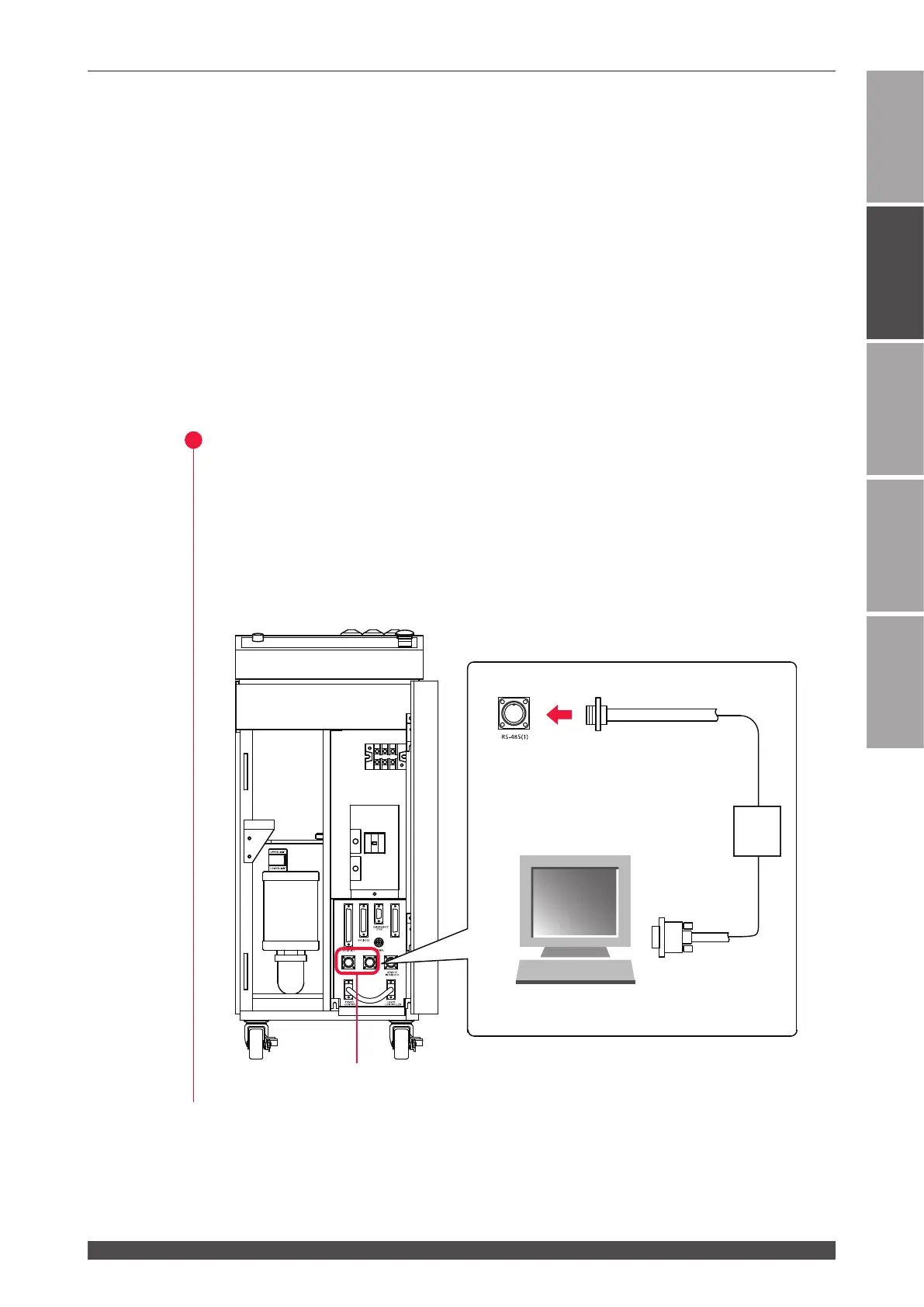

Operating Procedure
(1) Connect the RS-485 cable to the RS-485 (1) or RS-485 (2) connector of the main
unit.
(2) Connect the RS-232C cable to the RS-232C connector of the personal computer
or the like through the "RS-232C/RS-485 conversion adapter."
EXT.I/O(3)
RS-485 Cable
Personal computer, etc.
RS-485 (1) Connector
RS-485 (2) Connector
RS-232C/RS-485
conversion adapter
RS-232C Cable
To Next Page
