ML-2050A/2051A/2150A

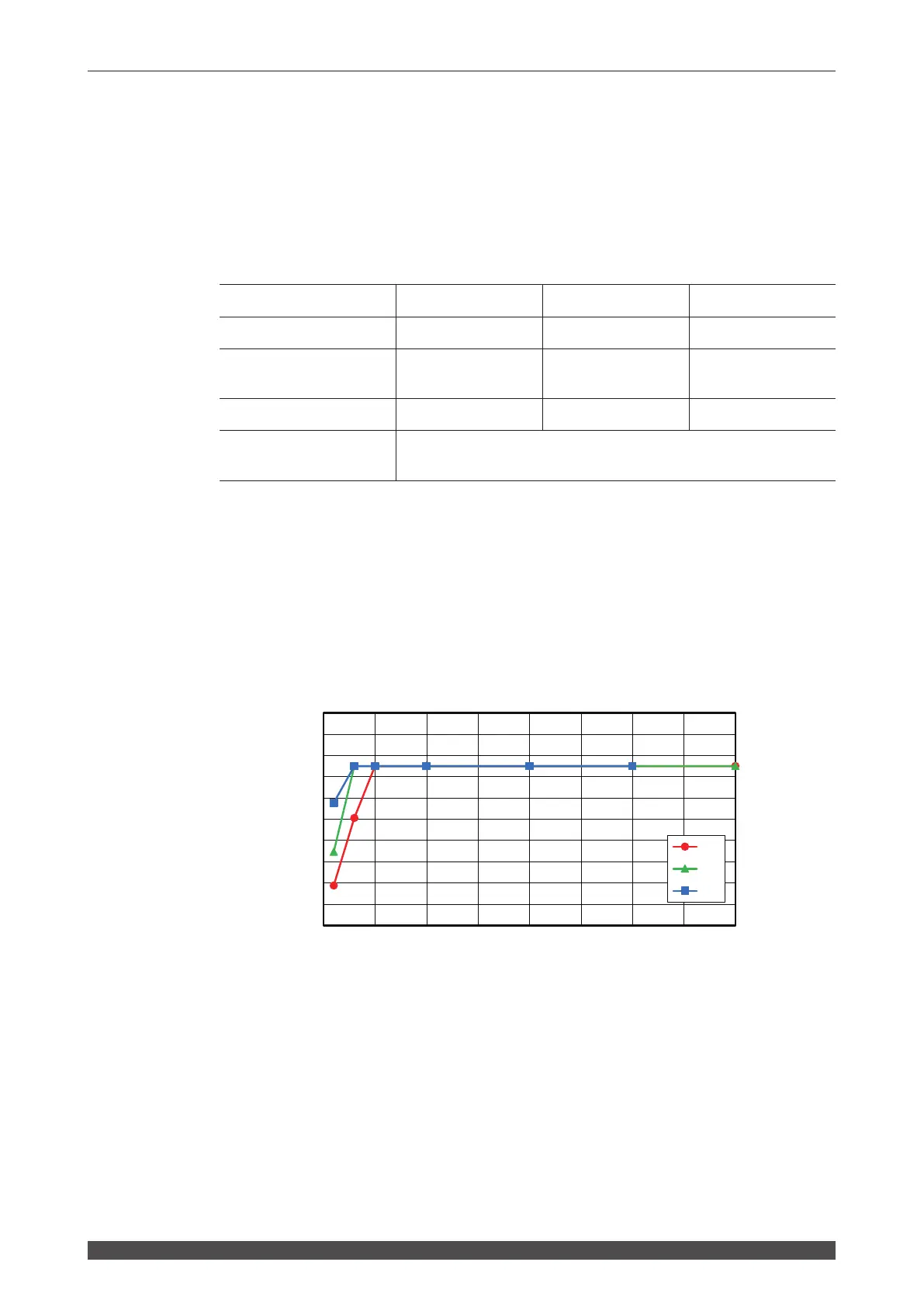

Available Output
Available Output
The available upper-limit output depends on the setting of peak power and
pulse width (laser output time ms). It is graphically shown for each model.
To obtain the maximum rated output with a short pulse width setting, it is necessary
to increase the peak power or repetition. Set conditions such as the pulse width and
repetition not to exceed the upper-limit output.
The specication for each model is as follows.
Model
ML-2050A ML-2051A ML-2150A
Maximum rated output 15 W 7 W 25 W
Maximum output energy 15 J/P
(pulse width 5 ms)
7 J/P
(pulse width 5 ms)
25 J/P
(pulse width 5 ms)
Maximum peak power 4 kW 2.5 kW 6 kW
Pulse width Standard: 0.2 to 10.0 ms (in 0.1 ms steps)
Resulting from a setting change: 0.20 to 5.00 ms (in 0.02 ms steps)
⇒
The graphical numeric value is for reference. The value changes according to
each ashlamp, equipment, or set waveform.
⇒
To use the ashlamp for a longer time, we recommend the setting of 80% or less
of the value shown in the graph below. The setting can be 100% of the value, but
the lamp life and the replacement interval of the O-ring for YAG rod may become
shorter.
ML-2050A
0
2
4
6
8
10
12
14
16
18
20
0 0.5 1 1.5 2 2.5 3 3.5 4
1ms
2ms
3ms
Peak power (kW)
Upper-limit
output (W)
