1. Name and Function of Each Section on the Front Side
Inside of the Front Side

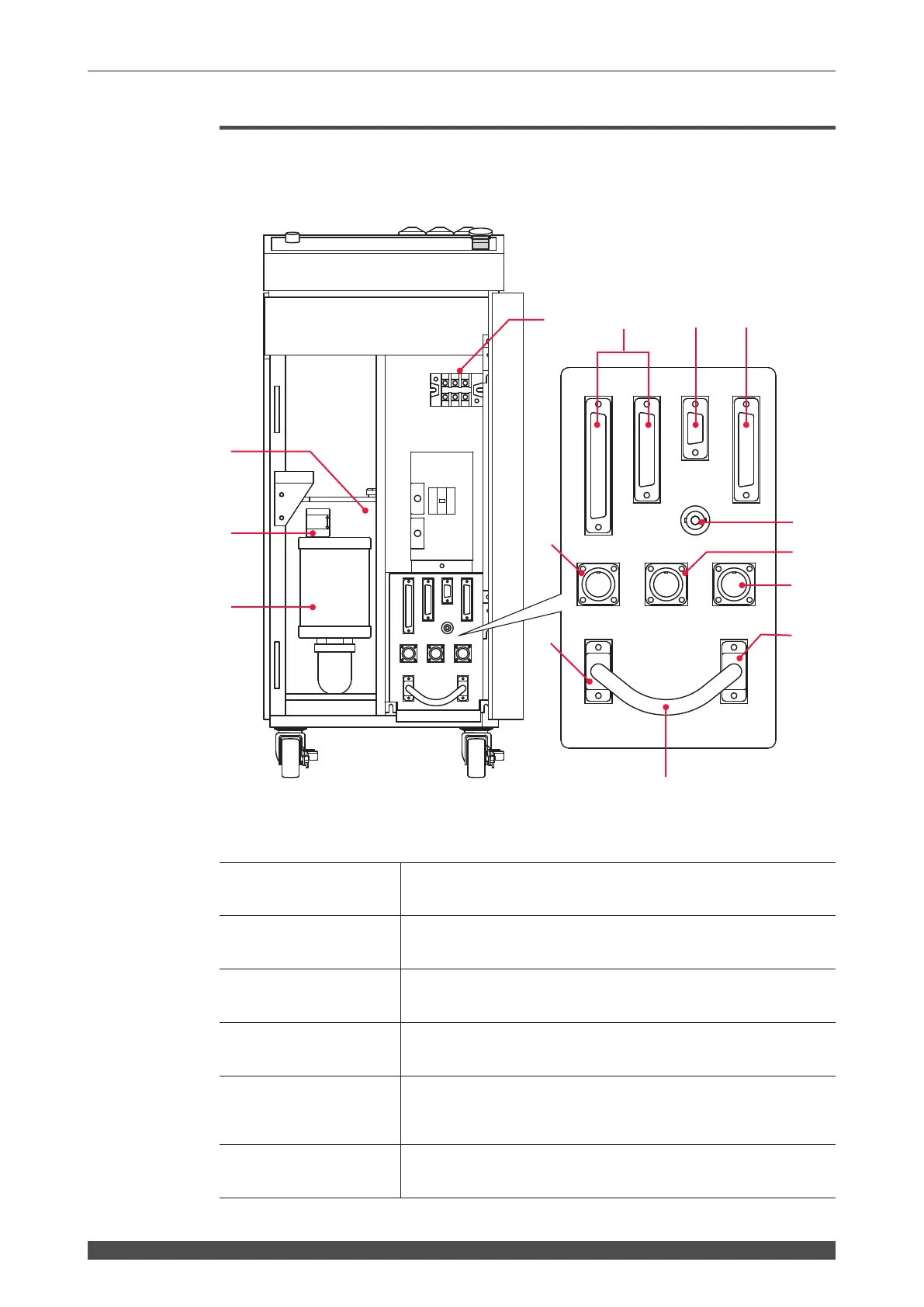

The front door is opened to perform maintenance. Each section of the inside is
explained below.
Function of Each Section inside the Front Side
(1) Power Supply
Terminals
Connect the terminals to a single-phase power supply of
200/220/240 V AC, depending on specications.
(2) EXT. I/O (1)(2)
Connectors
Used to output signals, e.g., alarm signals and monitor judgment
signals; and to input signals, e.g., start signal and schedule signals.
(3) EMERGENCY STOP
Connector
Used to input and output Emergency signals.
(4) EXT. I/O (3)
Connector
Used to input and output Emergency signals, and input the external
interlock.
(5) SIGNAL Connector
BNC connector used to output an analog signal representing the
monitor waveform of laser power. When viewing the waveform of
laser output, connect to an oscilloscope.
(6) RS-485 (1)
Connector
This connector is used to connect the laser to a personal computer
or printer.
