4. Product Composition
23
ML-2050A/2051A/2150A
Introduction Part
Installation and Preparation Part
Operating Part Maintenance Part Appendixes

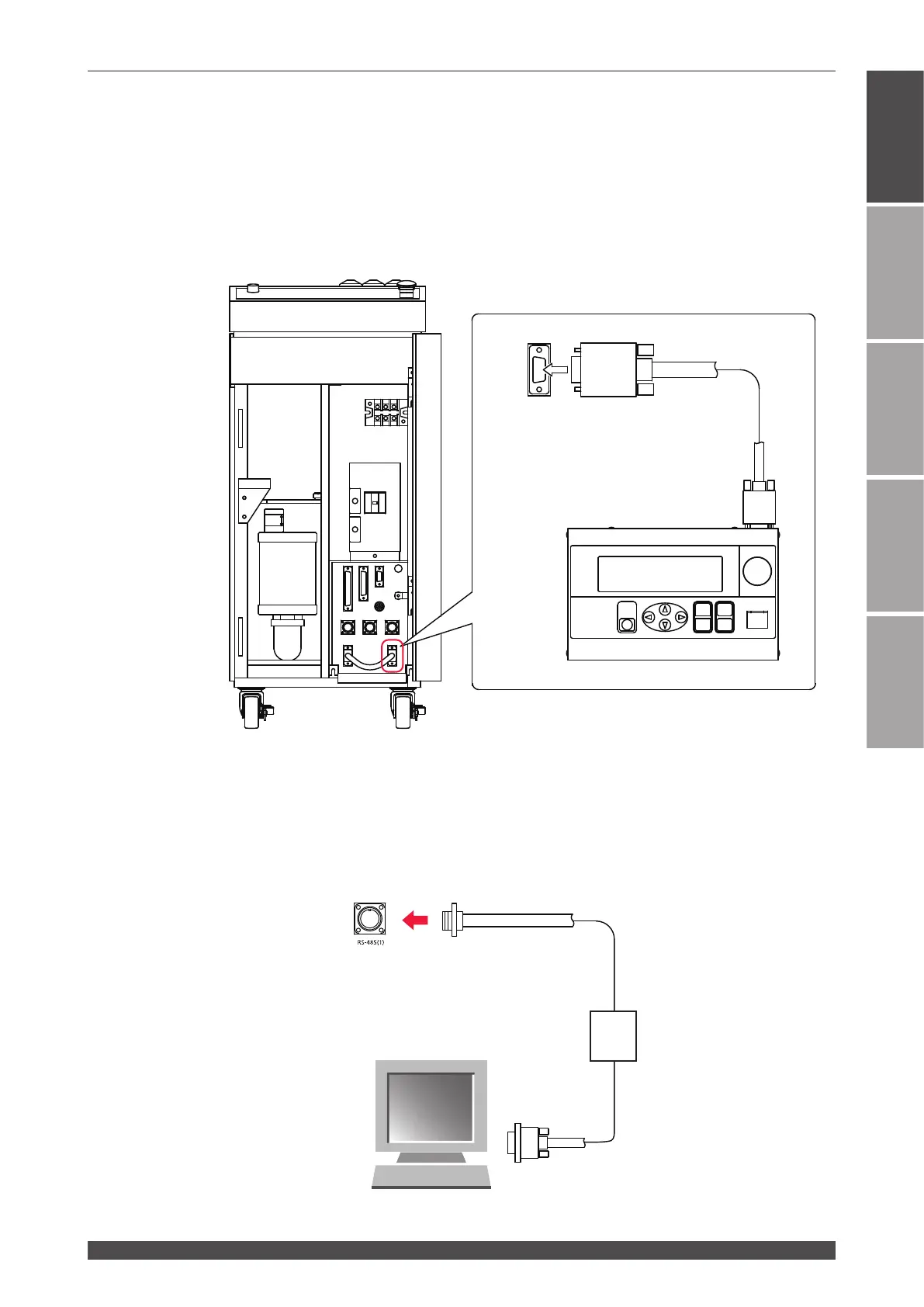

Laser Controller
This laser controller is used to operate the laser in a place remote from the main
unit. Connect this controller to the LASER CONTROLLER connector or the PANEL
CONTROL connector of the main unit by using a 3 m or 15 m circuit cable. Purchase
it as required.
Main unit
Connector of the main unit
Laser controller
RS-232C/RS-485 Conversion Adapter
This conversion adapter is used to control equipment by external communication.
Output signals (RS-232C) of the personal computer are converted into RS-485
signals and then output to the main unit.
CONTROLLER
LASER
ENTER
RESET
TROUBLE
MENU
P-00074-001
(-)
OFF
Y
C
S
T
P
O
N
E
G
R
E
M
E
START/STOP
LASER
(+)
ON
CURSOR
STOP
EMERGENCY
EXT.I/O(2)
SIGNAL EXT.I/O(1)
INTERLOCK
REMOTE
RS-485(2)
RS-485(1)
CONTROLLER
LASER
CONTROL
PANAEL
P-1518
LOWER LIMIT
UPPER LIMIT
Chapter 1 Overview of the YAG Laser Welder
RS-485 cable
Personal computer, etc.
RS-485 connector of the main unit
RS-232C/RS-485
conversion adapter
RS-232C cable
