2. Setting the Laser Light Delivery
79
ML-2050A/2051A/2150A
Chapter 2 Various Settings
Introduction Part
Installation and Preparation Part
Operating Part Maintenance Part Appendixes

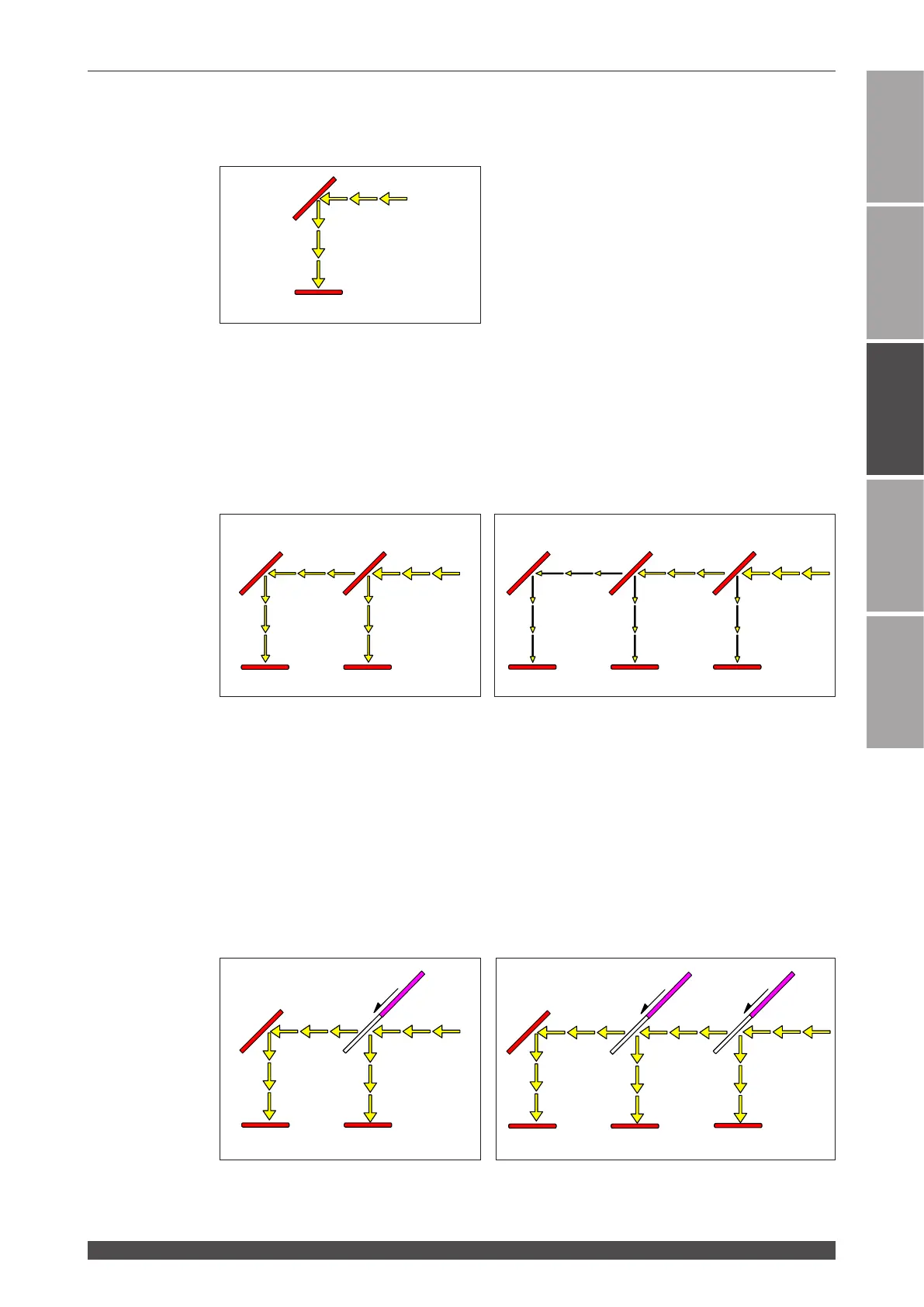

Single
A single branch shutter is opened to output laser light only to a single optical ber.
Laser light is reected on the beamsplitter
and transferred from opened branch shutter 1.
2-powersharing/3-powersharing
Laser light is split according to the number of built-in branch shutters and then
simultaneously output. At 2-powersharing, two branch shutters are opened and laser
light is split into 2 beams, and then simultaneously output.
At 3-powersharing, three branch shutters are opened and laser light is split into 3
beams, and then simultaneously output.
2-powersharing 3-powersharing
2-timesharing/3-timesharing
One optionally selected out of the built-in branch shutters is opened to output laser
light. For example, when branch shutter 2 is opened, laser light is output to the
optical fiber connected to input unit 2. If an operation is performed to open two
branch shutters or more, the branch shutter with a smaller No. has priority because
two or more branch shutters are not opened.
2-timesharing 3-timesharing
Beamsplitter
50%
Beamsplitter
100%
Beamsplitter
50%
Laser light
Branch shutter 2 Branch shutter 1
Beamsplitter
100%
Beamsplitter
33%
Laser light
Branch shutter 3 Branch shutter 2 Branch shutter1
Branch shutter 2 Branch shutter 1 Branch shutter 3 Branch shutter 2 Branch shutter 1
Beamsplitter
100%
Laser light
Laser light
Timesharing
unit
100%
Timesharing
unit
100%
Timesharing
unit
100%
Beamsplitter
100%
Beamsplitter
100%
Branch shutter 1
Laser light
Laser light is reected on the beamsplitter and
split, and then simultaneously transferred from
opened branch shutters 1 and 2.
Laser light is reected on the beamsplitter and
split, and then simultaneously transferred from
opened branch shutters 1, 2, and 3.
Laser light is reflected on the beamsplitter by
operated timesharing unit and transferred from
opened branch shutter 2.
Laser light is reflected on the beamsplitter by
operated timesharing unit and transferred from
opened branch shutter 3.
