Amada ML-2050A-CE - Page 82

82
ML-2050A/2051A/2150A

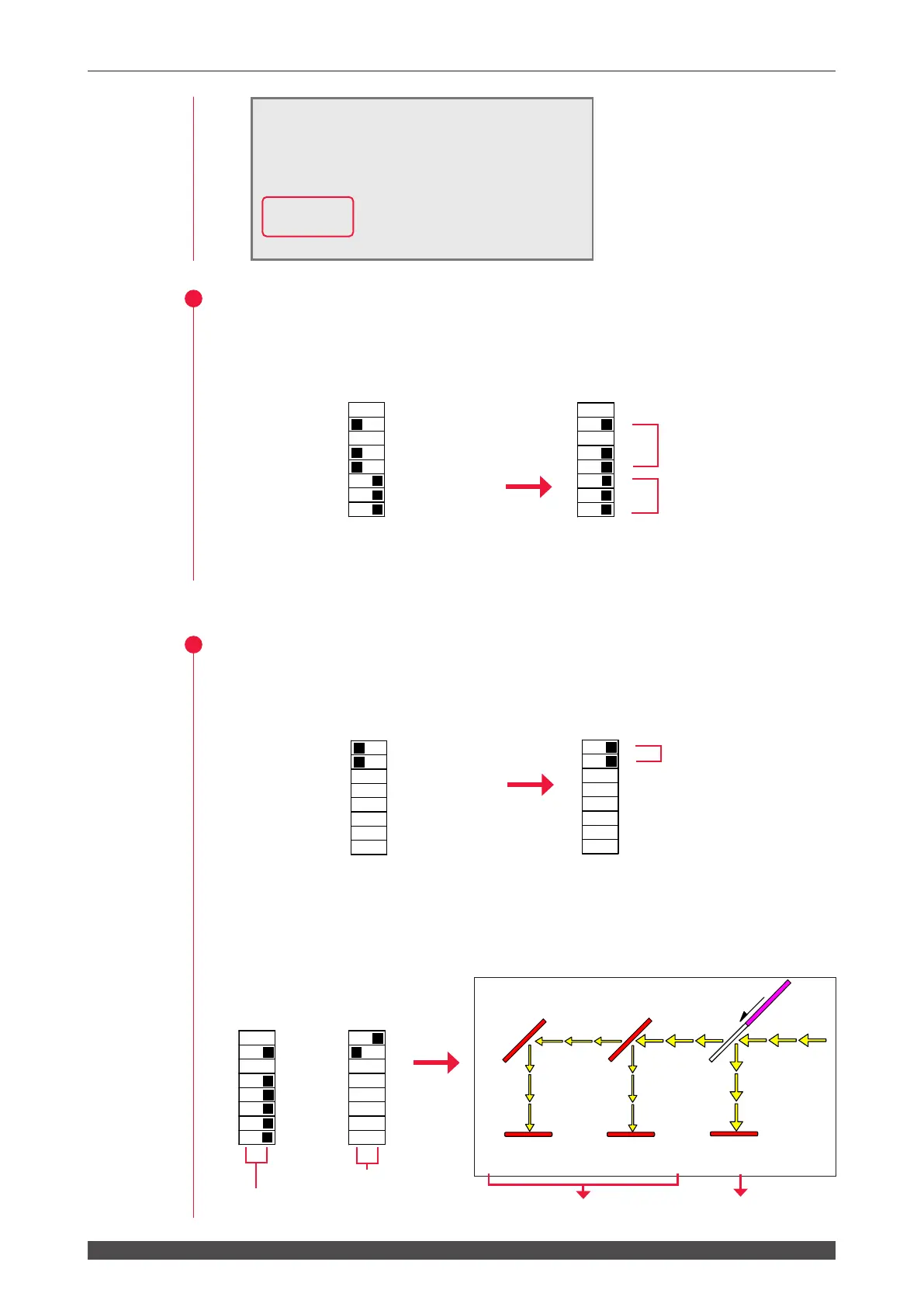

2. Setting the Laser Light Delivery
Operating an Optional Branch Shutter
(1) Set No.6, No.7, and No.8 of SW1 to ON and the branch shutters are put under
independent control. Then, turn ON the switch numbers of the built-in branch
shutters by SW1.
SW1
(branch shutter)
(2) On the STATUS screen, turn ON "BEAM" (branch shutter) to be operated.
The branch shutter in the ON status is operated.
Operating an Optional Timesharing Unit
(1) Set No.6, No.7, and No.8 of SW1 to ON and the branch shutters are put
under independent control. Then, turn ON the switch numbers of the built-in
timesharing units by SW2.
SW2
(timesharing unit)
(2) On the STATUS screen, turn ON "MIRR" (timesharing unit) to be operated.
The timesharing unit in the ON status is operated.
In the case of Single + 2-powersharing, set SW1 and SW2 as shown below. On
the STATUS screen, turn ON "BEAM-1" to "BEAM-3" and "MIRR-1." Then, laser
light is output in the single form from branch shutter 1 and in the 2-powersharing
form from branch shutters 2 and 3.
SW1 SW2
(branch shutter) (timesharing unit)
O
F
F
1
2
3
4
5
6
7
8
O
F
F
1
2
3
4
5
6
7
8
O
F
F
1
2
3
4
5
6
7
8
O
F
F
Branch shutter 3 Branch shutter 2 Branch shutter 1
50% 50% 100%
-STATUS [PANEL CONTROL]

WATER 28˚C
BEAM-1:OFF RESET SELECT PRESET
BEAM-2:OFF
"
SHOT 123456789 123456789
BEAM-3:OFF
"
GOOD 123 45 678 9 123 45 678 9
MIRR-1:OFF
MIRR-2:OFF FIBER:[SI] ø1.0mm
HV:OFF POSI.BLINK:OFF POSITION:OFF
Beamsplitter
100%
Laser light
Timesharing
unit
100%
Beamsplitter
50%
2: branch shutter 3
4: branch shutter 2
5: branch shutter 1
Branch shutters 1, 2, and 3
are operated.
The branch shutters are put
under independent control.
O
F
F
1
2
3
4
5
6
7
8
1: timesharing unit 1
2: timesharing unit 2
Timesharing units 1 and 2
are operated.
1
2
3
4
5
6
7
8
Branch shutters 1, 2, and 3 are operated.
2-powersharing
Timesharing units 1 is operated.
Single
