84
ML-2050A/2051A/2150A

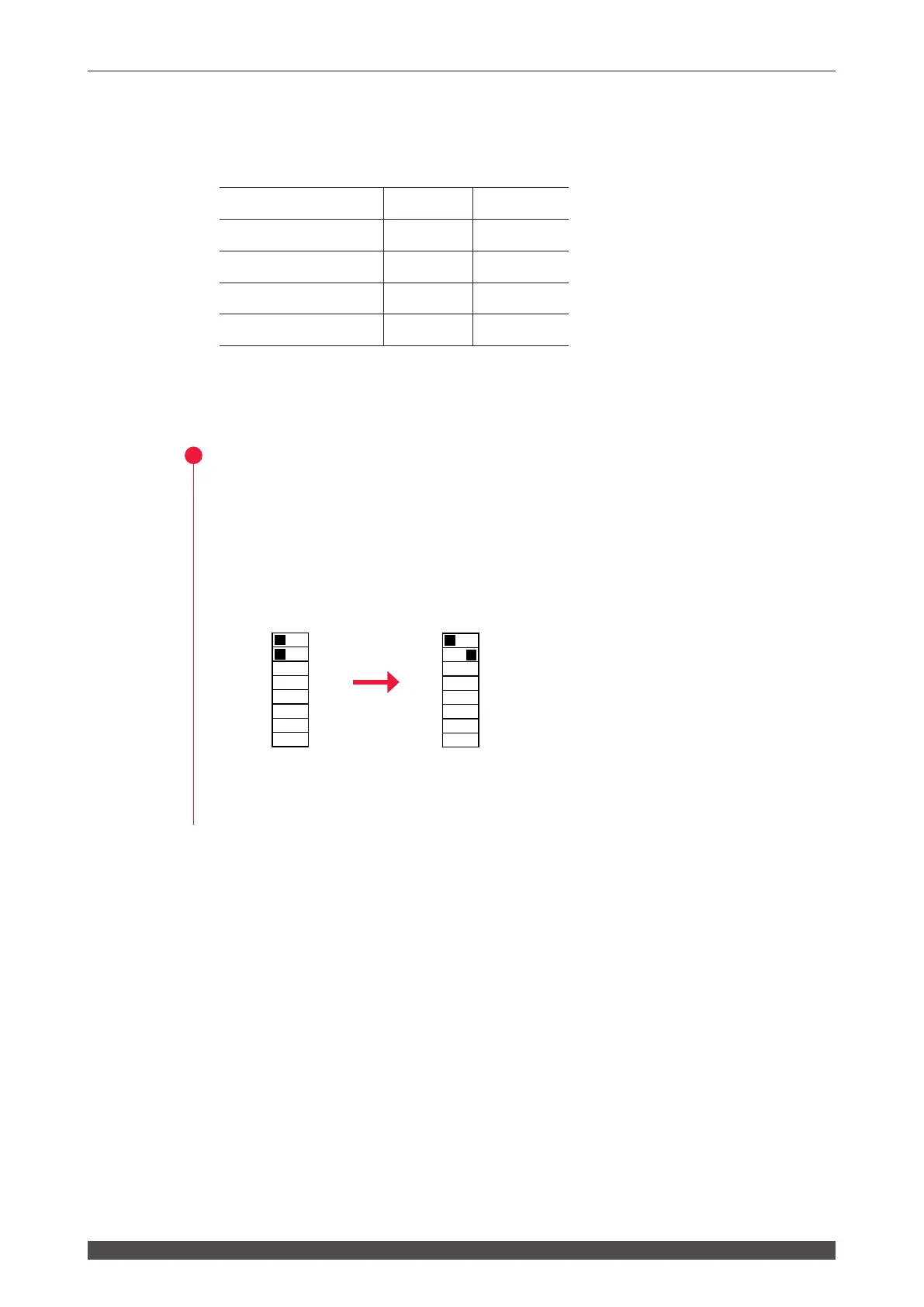

3. Changing the Acceptance Time for Laser Start Signal/Schedule Signal
The 4 types of acceptance time of 1 ms, 4 ms, 8 ms, and 16 ms are available. At
delivery, the acceptance time is set to 16 ms. To change this setting, switch the ON/
OFF status of No.1 and No.2 of SW4 as shown below.
Acceptance time No.1 No.2
1ms ON ON
4ms OFF ON
8ms ON OFF
16ms OFF OFF
⇒
Usually, the laser start signal acceptance time is 16 ms and can be shortened as
required.
Operating Procedure
(1) Remove the side cover of the main unit and set the ON/OFF status by No.1 to
No.2 of DIP switch SW4.
For example, to set the acceptance time to 4 ms, set No.1 to OFF and No.2 to ON.
SW4
In the above example, since the laser signal and schedule signal are accepted in 4
ms, the schedules are established in 4 ms after the schedule signal is input, and laser
light is output in 4 ms after the laser start signal is input.
1
2
3
4
5
6
7
8
O
F
F
1
2
3
4
5
6
7
8
O
F
F
