Transport and storage
138 Edition 01/2016 multi EA 4000
8. Place the ceramic hook into the guide rail of
the sampler.
9. Place the sliding rod onto the hook until the
pin engages in the slot.

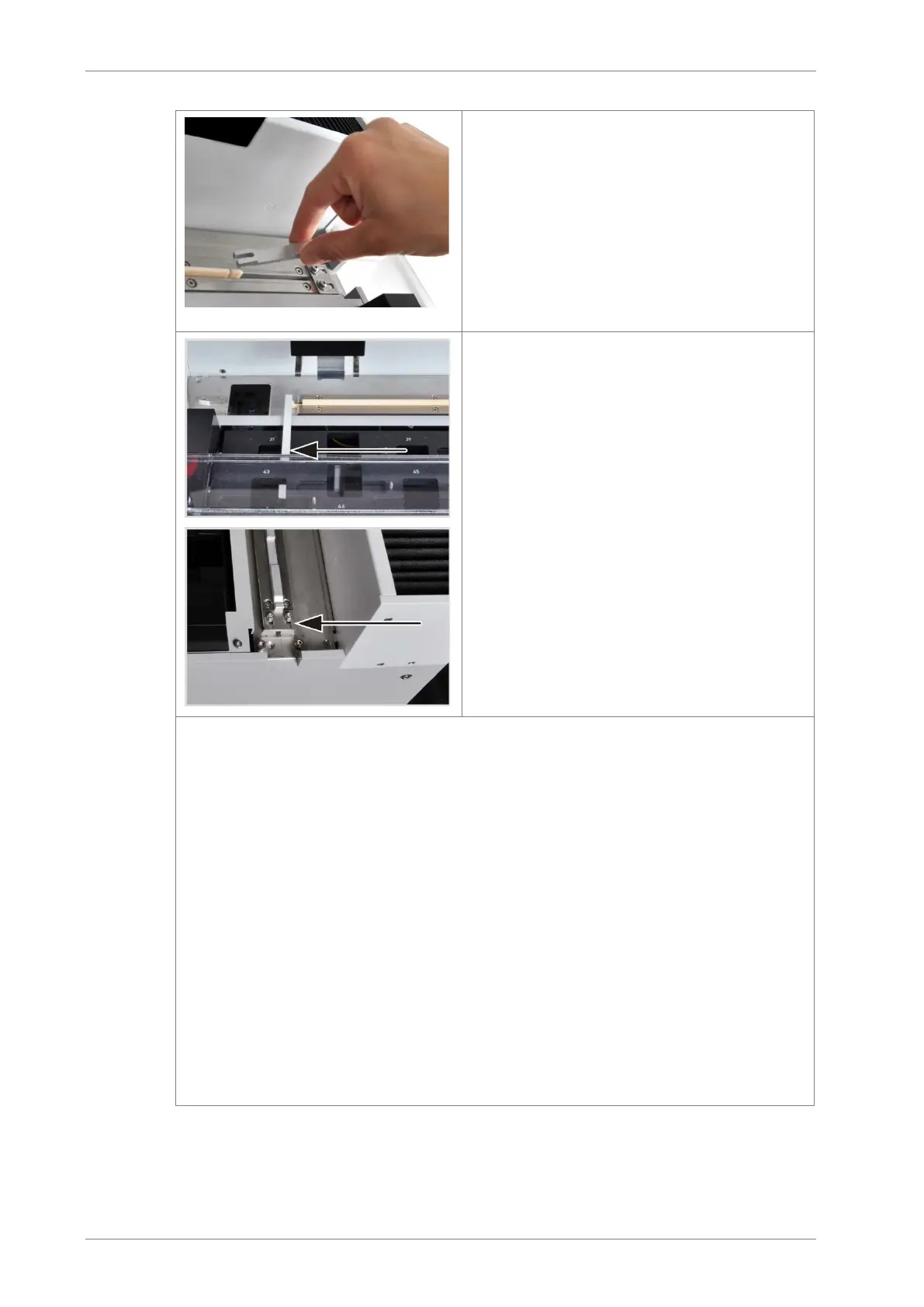

10. Place a boat into the feeder (hook the eye
of the boat into the hook) and carefully
move the boat manually into the furnace.
Make sure that the hook is not wedged or
angled. Otherwise correct the position of
the sampler.
Check the start position of the ceramic hook.
The hook must be flush with the right-hand edge
of the left-hand boat position (here position 37).
11. Place a straight paper or plastic strip (e. g.
a ruler) along the edge and align the tip of
the ceramic hook with it.
12. If the factory setting is not correct, loosen
the screws at the stop plate of the guide
rail. Move the plate until it touches the end
of the sliding rod. Secure the stop plate with
the screws.
Caution!
Do not move the sampler arm manually if the sampler is switched on. The drives of the
FPG 48 could be damaged.
Adjustment of the gripper
Align the gripper using the multiWin software for the following positions:
 Position 1
 Sliding position
 Ejection rail (e. g. after installation of the automatic TIC solids module)
Position 1
1. Switch on the basic device, the detector with control unit, the automatic TIC solids
module, where applicable, and the FPG 48. Start the multiWin software and initialize
the analyzer.
2. Select the menu command S
YSTEM / SAMPLE GENERAL. A window with the same name
opens.
