Analytik Jena multi EA 4000 User Manual

Operation
multi EA 4000 Version 01.16 63

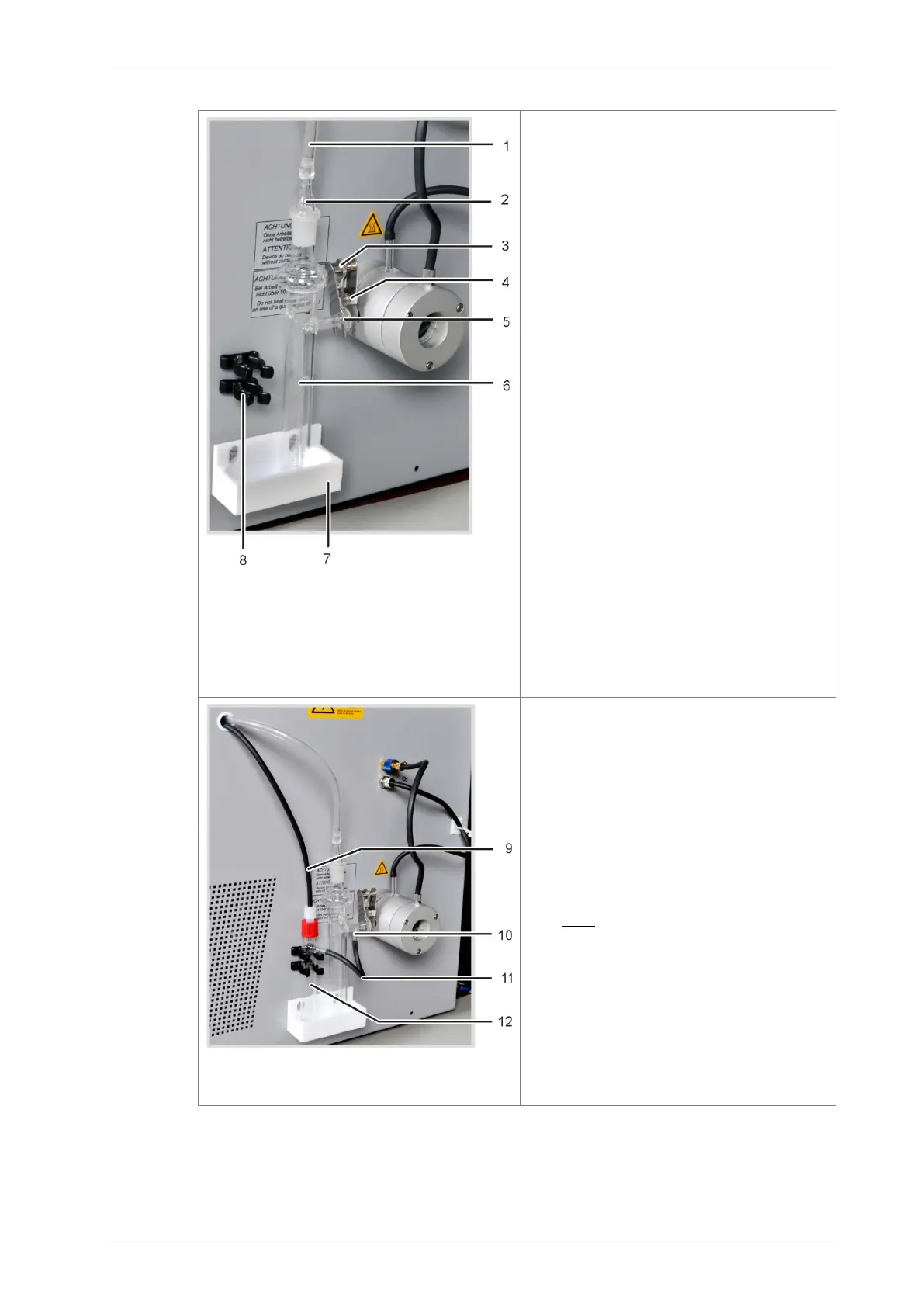

1 measuring gas hose
2
glass olive
3 Knurled head screw
4
fork clamp
5 spherical joint
6
sulfuric acid contain-
er
7
PTFE tray
8
clamps for safety
container
2. Fill the sulfuric acid container with 12
– 15 ml sulfuric acid.
3. Hold the filled sulfuric acid container
above the PTFE tray (7) next to the in-
let to the combustion tube at the basic
device.
4. Combine the gas outlet of the com-
bustion tube and the inlet of the sulfu-
ric acid container using the spherical
joint (5).
5. Secure the spherical joint with the fork
clamp (4) and tighten the knurled
head screw (3) finger-tight.
6. Seal the sulfuric acid container with
the gas olive with hose connection.
7. Push the measuring hose (transpar-
ent) onto the gas olive connection.
9 bypass hose
10
splitting outlet
11 connection hose
12
safety container
Sulfuric acid containers with splitting outlet
only
8. Connect the splitting outlet of the sul-
furic acid container to the side con-
nection of the safety container.
9. Press the safety container into its
holder.
10. Connect the black bypass hose (9) at
the top of the safety container (12).
Note: For sulfuric acid containers
without splitting outlet the connection
hose hangs down loosely.
