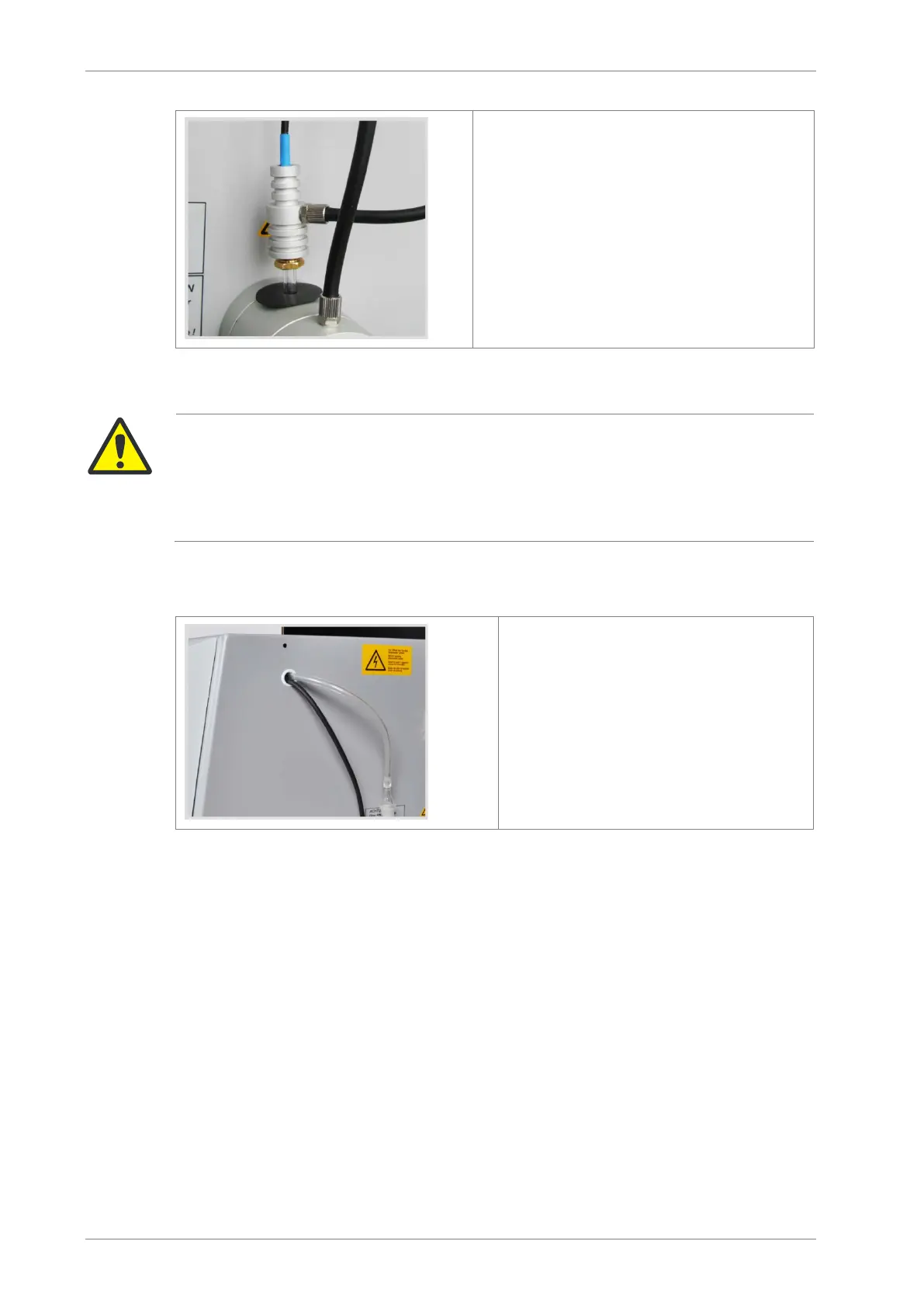

3. Place the sensor head onto the gas con-
nection and secure it with the brass
sleeve.
The sealing rings are pressed into the
sensor head and seal the flame sensor.
4. Connect the flame sensor connection
between the connection of the multi EA
4000 with the C/S module (or Cl module)
at the "valve" connection of the multi EA
4000.
Connecting the sulfuric acid container
WARNING
The concentrated sulfuric acid used as drying agent in the sulfuric acid container can cause
severe chemical burns!
Wear appropriate protective
clothing when changing the sulfuric acid! Observe all require-
ments in the EC safety data sheet! Fill the sulfuric acid with great care!
Dependent on the measuring method, a sulfuric acid container with or without splitting outlet
is used.
1. Push the measuring gas hose (color-
less) and the bypass hose (black)
through the duct in the multi EA 4000.
If necessary, use tweezers to pull the
hoses out at the other duct end. Feed
the hoses through the opening on the
right-hand side of the Cl module.
