Operation
72 Edition 01/2016 multi EA 4000

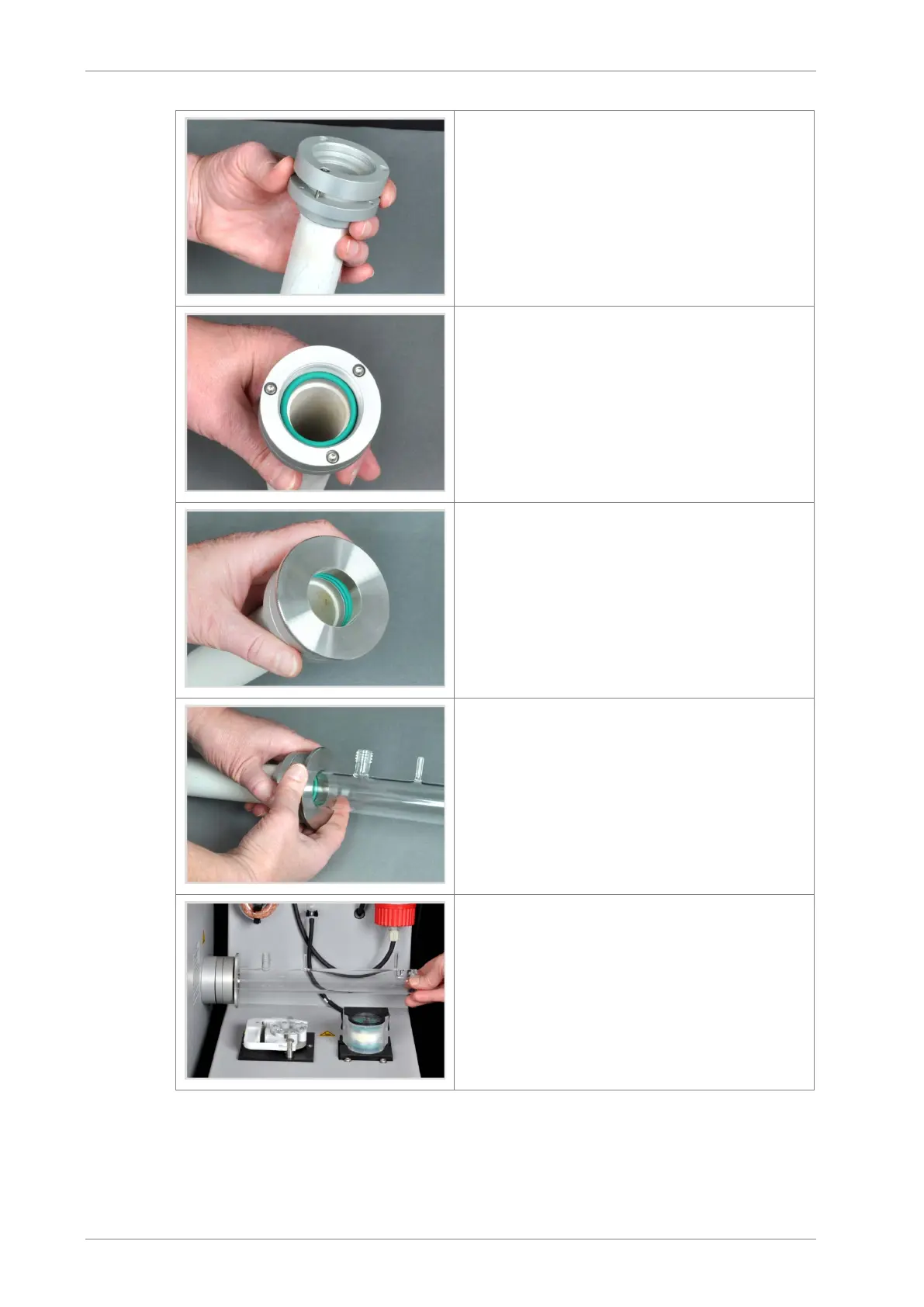

2. Attach the 2nd ring and secure it with the 3
hexagon socket screws supplied. Tighten
the screws in turn.
Caution: The gap between the two rings
should be evenly approx. 1 mm wide.
3. Place two sealing rings into the coupling.
4. Screw on the knurled ring with half a rota-
tion.
5. Slide the reactor into the coupling until it
touches the ceramic tube. Attach the TIC re-
actor by carefully tightening the knurled ring.
Caution: The reactor must be centered in
the holder.
6. Move the ceramic tube into the opening of
the combustion furnace and press it into the
rear seal. The reactor connections must
point upwards.
