40
100-Point Axis Error Compensation F 80/F 81
(Continued)
Measure the Axis (Continued)

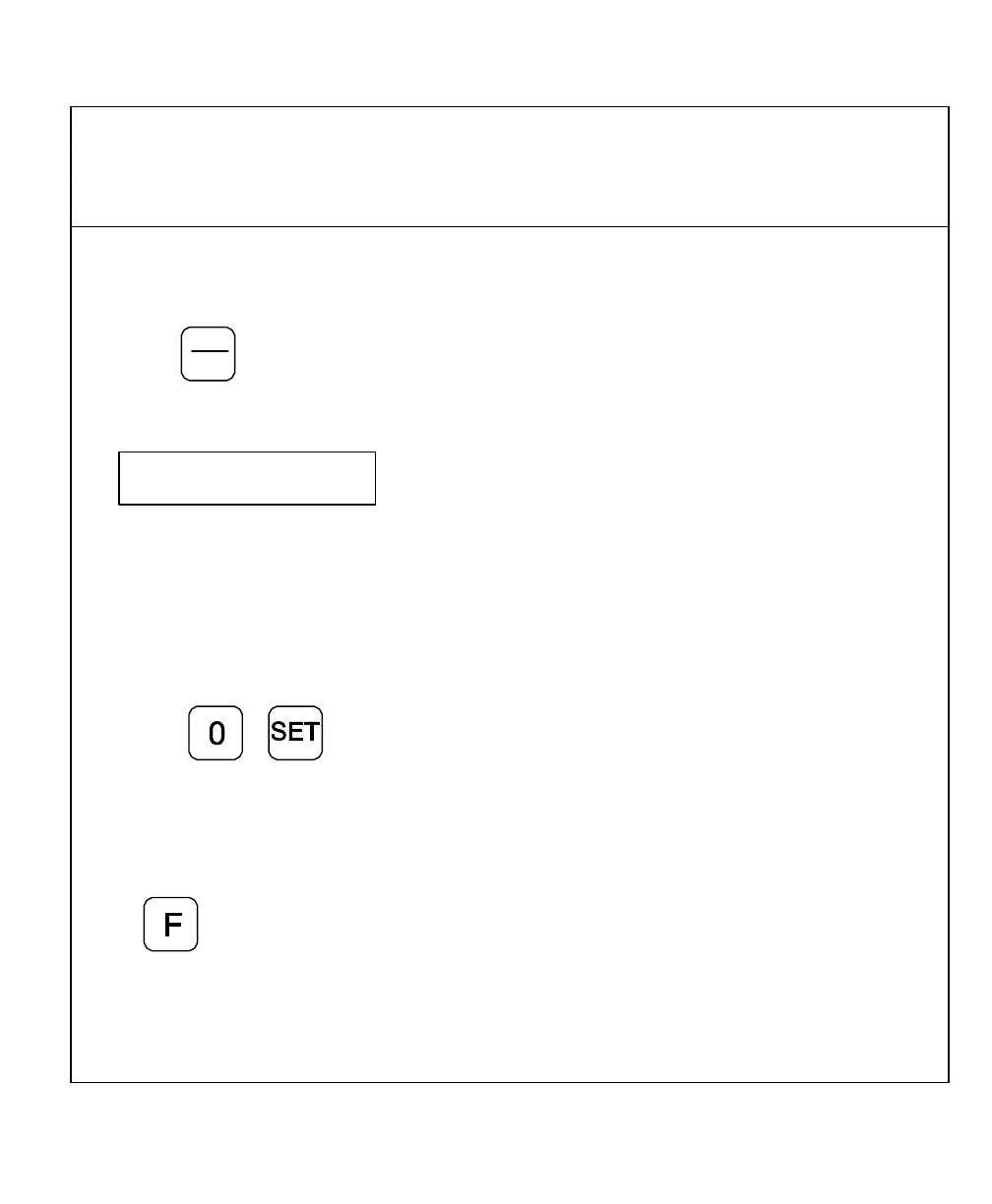

2. Press the desired axis key.
3. Press
INCR
key.
The DRO displays the following in the message window:
REF.DISPLAY
The decimal point in the left display field indicates that the display values are
referenced to the Reference mark. If the decimal point blinks, the Reference mark
has not been traversed.
Now, if required, you can set a zero to datum point for the “Reference Display”.
For example, press the desired axis and
Press to set zero point for “Reference Display”.
Measure the axis and note the compensation values for later programming.
As the compensation is always related to the “Reference Display”, you are not allowed to
change the zero or datum point for the “Reference Display” after measuring.
Press to leave the “Reference Display” mode.
