Parameter Settings – F 20 (Continued)
Rotary Encoders
If you have performed steps 1 through 4 in the Setting Up Encoder Parameters section
and selected rot (Rotary Encoder), the DRO prompts for the Line Count in the message
window. The default rotary encoder line count (9000) is displayed in the axis display:
X 9000
ABS
Line count
The axis designation (in this example, X
) is blinking, indicating that you can enter a value.
The default value for the encoder resolution is 9000. The encoder resolution value must
be set for the linear encoder type you are using.

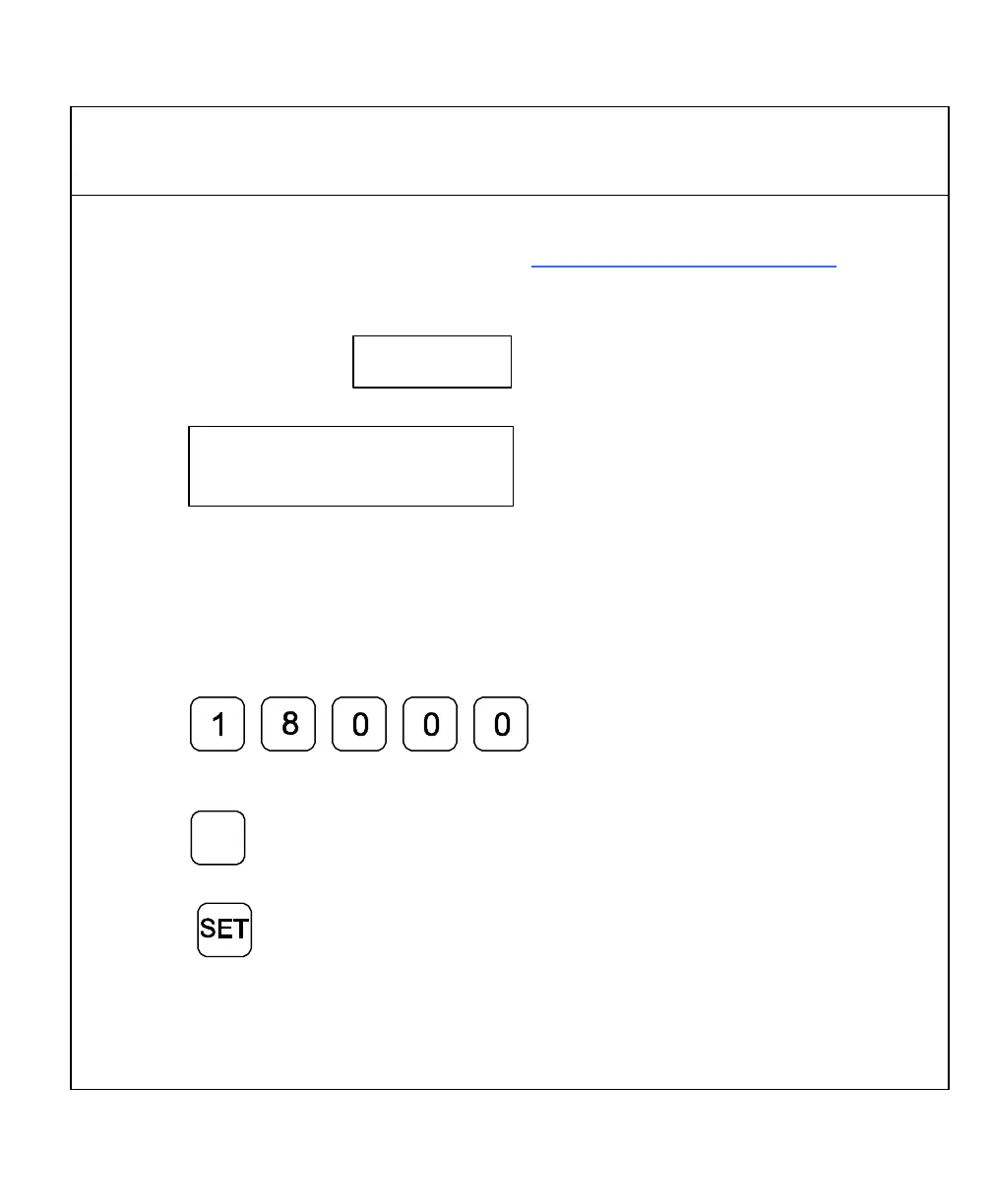

Changing the Line Count and Direction of Positive Rotation
If you need to change the line count – for example: 18000:
1. Press
If you need to change the direction of positive rotation:
2. Press
+
_
to change the direction of
positive rotation.
3. Press to select the direction of
rotation and line count.
