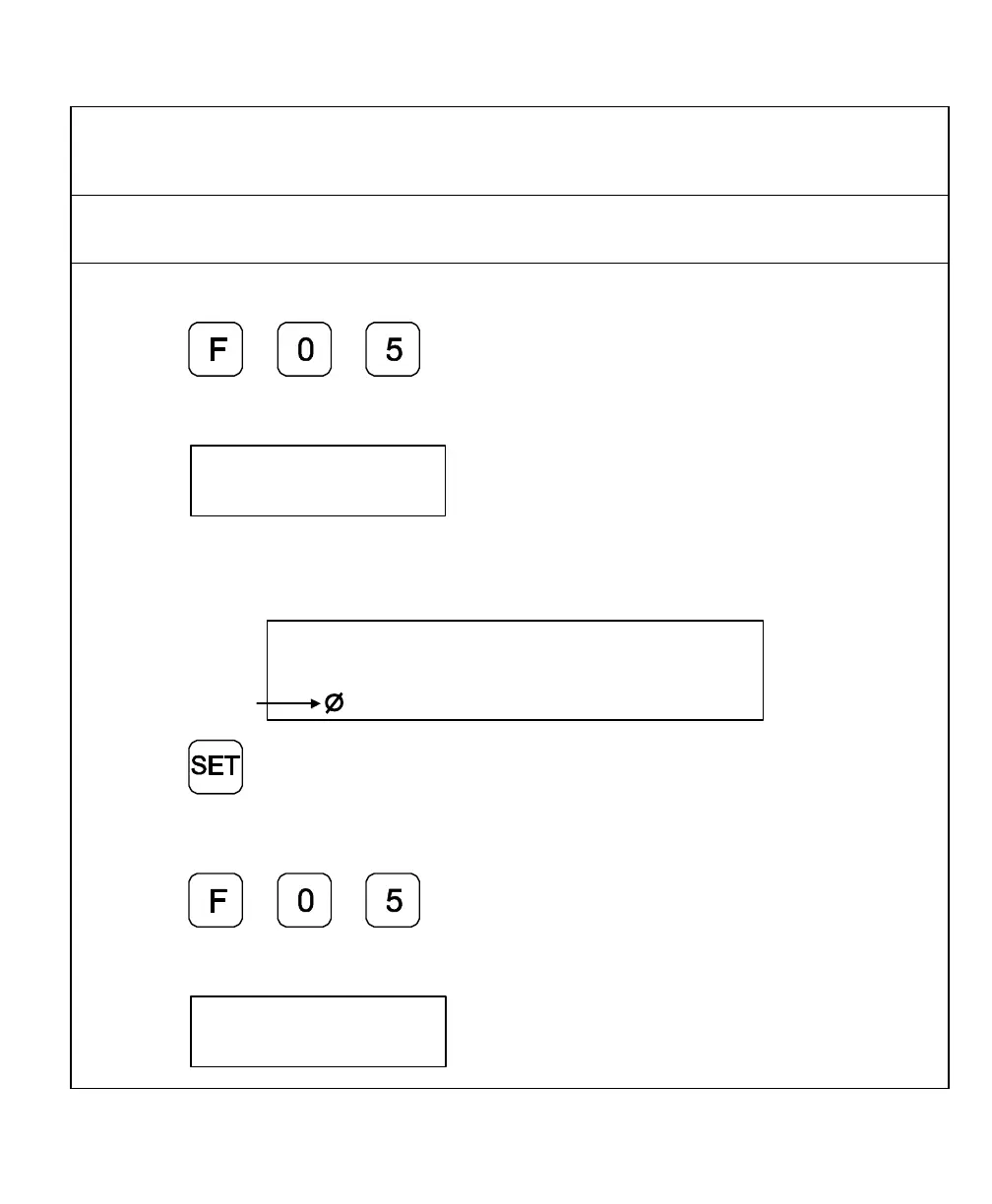

Radius/Diameter per Axis – F 05
F 05 allows you to display a specified axis in Radius or Diameter Mode. The DRO
doubles axis movement and resolution In Diameter Mode. (Default for Lathe Mode: ON)
Example 1: Set one axis display in Diameter Mode.
1. Press to select the feature.
The DRO displays the following in the message window:
Rad --
dia
2. Press the desired axis key to select the axis.
The DRO displays the radius-diameter mode indicator in the selected axis display.
Radius-Diameter
Mode Indicator
X f 05
3. Press to activate the feature.
Example 2: Set two or more axis displays in Diameter Mode.
1. Press to select the feature.
The DRO displays the following in the message window:
Rad --
dia
