81
Advanced (ADV) Functions Key (Continued)
0
Diameter: 2.00 inches (50.8 mm)
Beginning Angle: -10
o
Holes: 4
X Center: +1.00 inch (25.4 mm)
Y Center: +1.00 inch (25.4 mm)
0
o
1.00 Inch
-10
o
X
Y
Hole 1
Hole 2
Hole 4
Hole 3
1.00 Inch

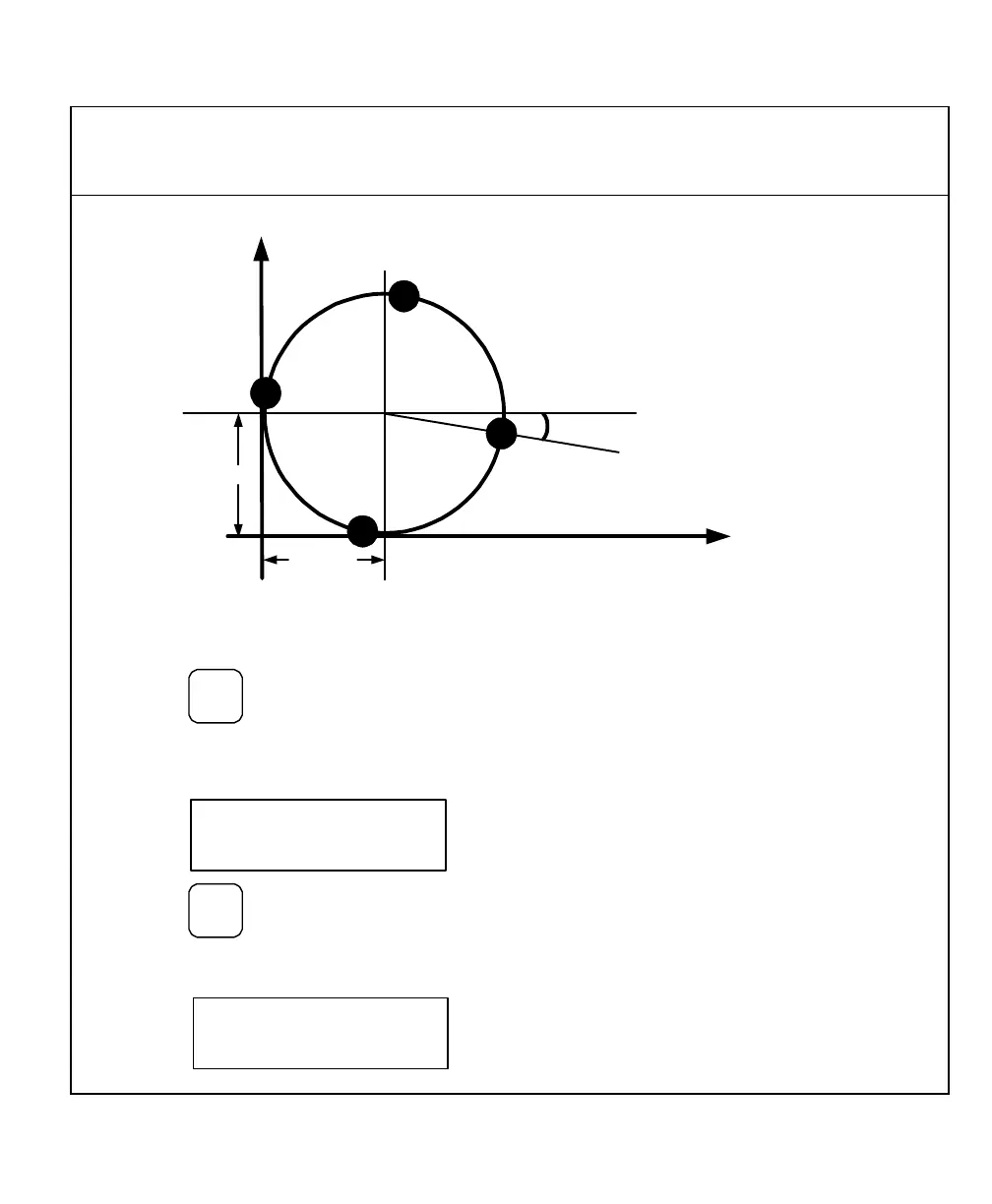

Figure 3: Full Bolt-Hole Pattern
To access the Bolt-Hole pattern function:
1. Press
ADV
repeatedly to scroll through
the Advanced Functions list.
When the DRO displays the following in the message window:
BOLT HOLE
2. Press
ENT
The DRO displays the following in the message window:
BHP NUMBER
