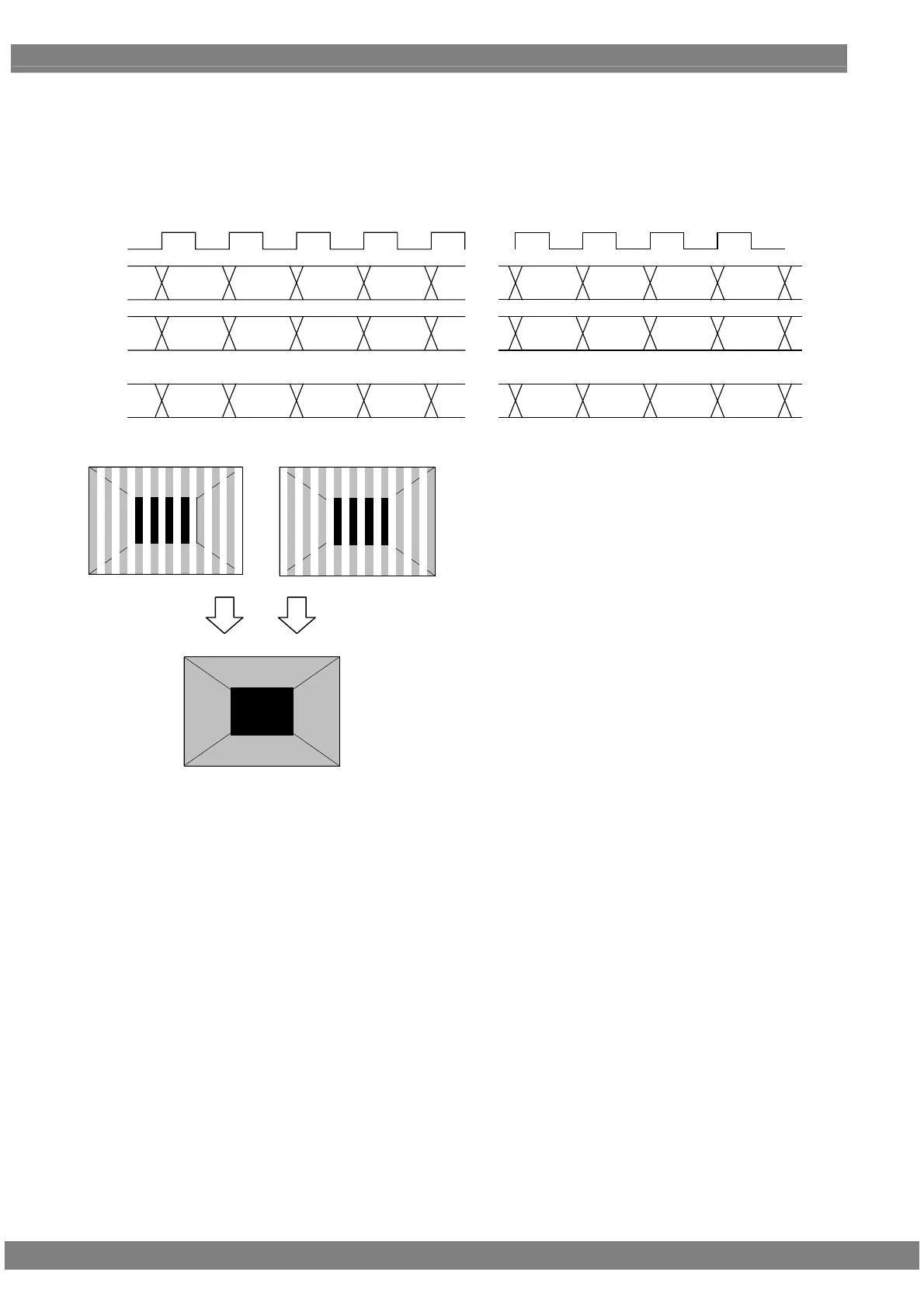

[Dual (8 bit)]
The images are output with channel 1 master and channel 1 slave making a pair. 8 bits level is output.
During dual output, the channel 2 output goes OFF.
Given here as an example for explanatory purposes is a case where the resolution is 1280 × 1024, the dot clock
frequency is 108 MHz with 8 bits level.
D 0 D 2 D 4 D 6
・・・
・・・
D 1272 D 1274 D 1276 D 1278
CLK
54MHz
D 1 D 3 D 5 D 7
・・・
D 1273 D 1275 D 1277 D 1279
[7：0] [7：0] [7：0] [7：0] [7：0] [7：0] [7：0] [7：0]
[7：0] [7：0] [7：0] [7：0] [7：0] [7：0] [7：0] [7：0]
D 0 D 2 D 4 D 6
・・・
D 1272 D 1274 D 1276 D 1278
1ch
Master
1ch
Slave
2ch
[Non] [Non] [Non] [Non] [Non] [Non] [Non] [Non]
1CH Master
1CH Slave
